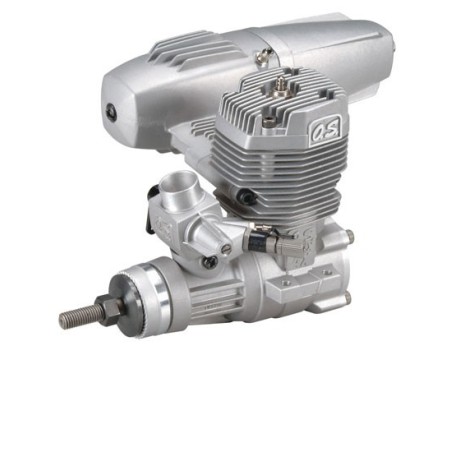

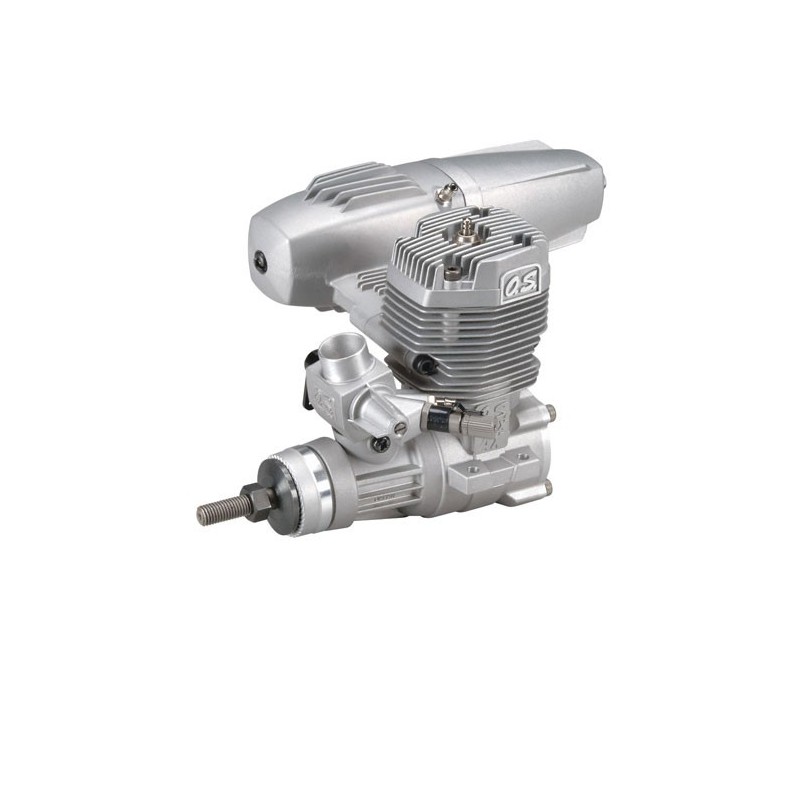

Remote-controlled 55 AX II thermal engine

-14%
Promotion

The OS MAX 55 AX is a powerful two-stroke engine, equipped with a crankshaft mounted on two ball bearings, suitable for competition sport and aerobatic models.

It is equipped with a 40K double-needle carburetor, with the main needle positioned towards the rear for safe engine adjustment while running.

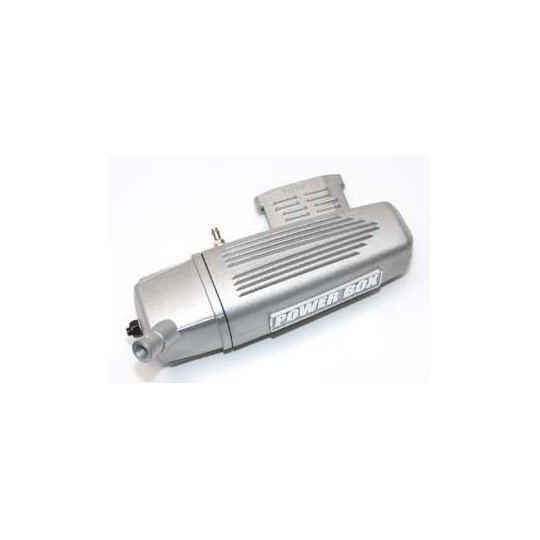

The basic set also includes a highly efficient expansion muffler of type E-3071 (Power Box).

The exhaust outlet orientation can be changed by rotating the rear of the muffler 360 degrees.

Save 14%

€149.95 €128.96 VAT included

Quantity

Remote-controlled 55 AX II thermal engine

Plus de details

Remote-controlled 55 AX II thermal engine

€128.96 €149.95

Fast shipping Via Chronopost 24H Via DPD 24/48H Colissimo 48/72H

342908 products in stock Real-time stock displayed

Secure payment

Secure payment In 3 or 4 installments

4.6/5

★ ★ ★ ★ ★

Specialist since 1955

Associated Universe

Parts for planes

RC engine

RC Airplane Engine

Parts for thermal engines

Dimensions identical to the classic OS MAX 46FX.

The crankshaft has a thread for a UNF 1/4-28 propeller nut.

Recommended propellers: break-in 12x7" / sport and aerobatics: 12x7", 12x8", 13x6", 13x7".

Recommended fuel tank: 350 to 400 ml; a 350 ml tank allows approximately 10 to 12 minutes of aerobatics, provided you do not fly continuously at full throttle.

Recommended fuel: minimum 18% castor oil or synthetic oil (or mixture), 5 to 20% nitromethane.

Recommended spark plug: OS MAX #8 or #10 with a higher nitro content.

The engine set includes: OS MAX 55 AX engine with RC 40K carburetor, E-3071 type muffler, main needle extension, #8 spark plug, manual.

Technical specifications

Displacement: 8.93 cc
Approximate power: 1.7 HP at 16,000 rpm
Speed range: 2,000 – 17,000 rpm
Bore: 23.0 mm
Stroke: 21.5 mm
Total weight: 512 g
Carburetor: 40L
Shaft thread: 1/4"-28 UNF
Weight: 404 g
Length to propeller hub: approx. 85.4 mm
Width: approx. 51 mm
Height: approx. 91.1 mm
Mounting hole spacing: 17.5 mm (length) / 44 mm (width)
Fixing hole diameter: 3.2 mm
Recommended propellers: 12x7" / sport and aerobatics: 12x7", 12x8", 13x6", 13x7"

Motor use: Planes
Engine displacement: 2 times 8-15ccc
Engines: Thermal
Level of use/difficulty: Thermal
Product types: Motors and variators for radio -controlled models
States: Promotion
