Radio accessory 4 -lane school module

A practical training module for learning to fly

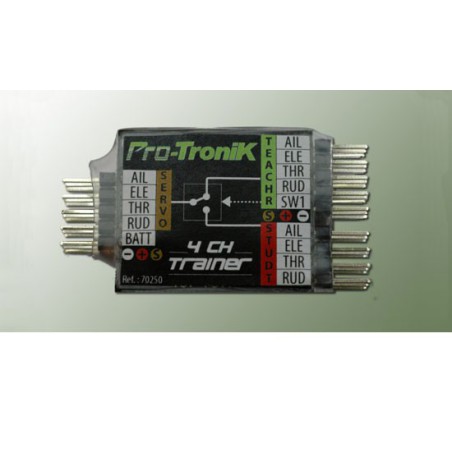

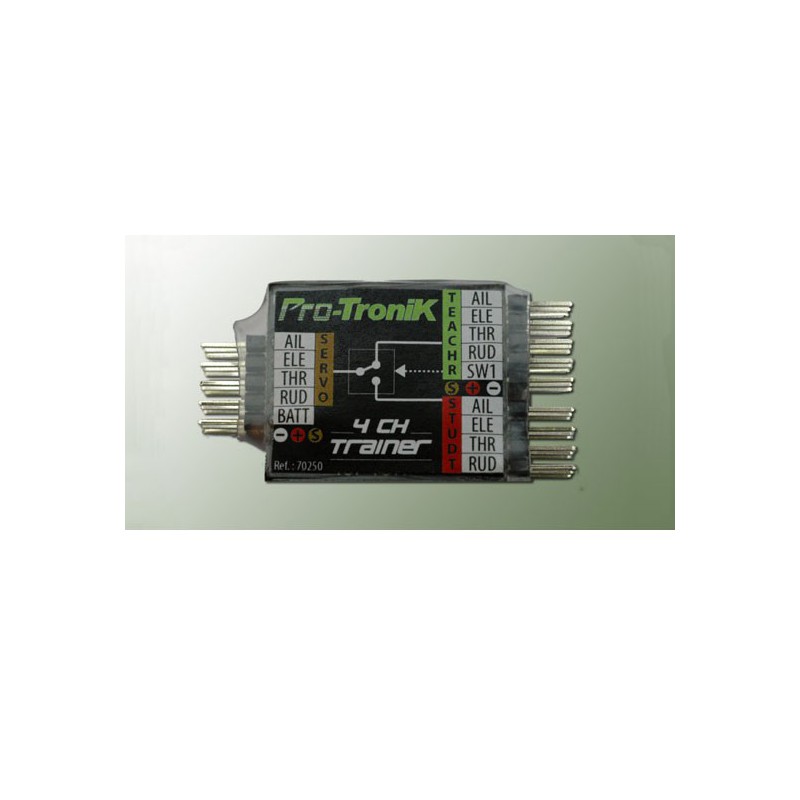

The Protronik training module links two transmitters (master and student) to an aircraft or glider. Control transfer is done via a switch on the instructor’s radio, who can take back control at any moment.

The biggest advantage is its universal compatibility: it works with all radio brands, even if the student uses a different model than the instructor.

Function and universal compatibility

To use the system, the aircraft must have one receiver for each radio. The Protronik module then manages the link and switching between master and student via the instructor’s switch.

This allows every beginner to train with their own radio equipment, without compatibility constraints.

Technical specifications of the Protronik training module

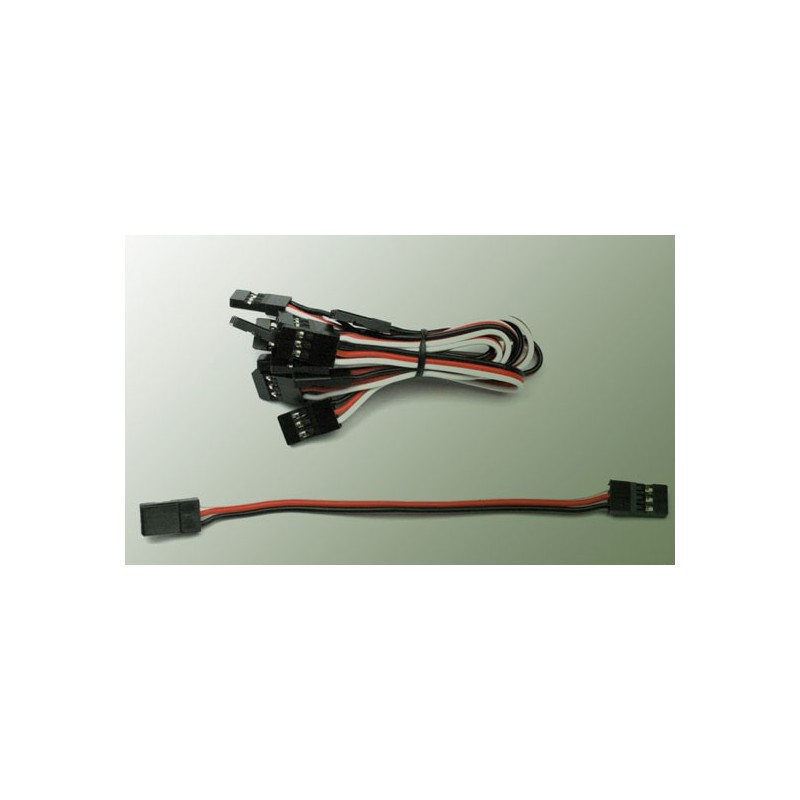

• Supplied with 9 cables (12.5 cm) with Uni male JR connectors to link the two receivers to the module.

• Supports 4 main training channels: rudder, elevator, ailerons, and throttle.

• Power supply: 4.8V to 7.4V.

• Only one receiver battery is needed to power the module and both receivers (the module distributes current).

• Consumption: 5 mA @ 5V.

• Dimensions: 49 × 26 × 9 mm.

• Weight: 6.5 g (without cables).

This module is compatible with all types and brands of radios (41 MHz, 72 MHz and 2.4 GHz).

A receiver is required for each radio.

• For positive PWM signals.
• Supplied with 9 JR/JR connectors of 12.5 cm.
• Power supply: 4.8V to 7.4V.
• Consumption: 5 mA @ 5V.
• Dimensions: 49 × 26 × 9 mm.
• Weight: 6.5 g (without cables).
