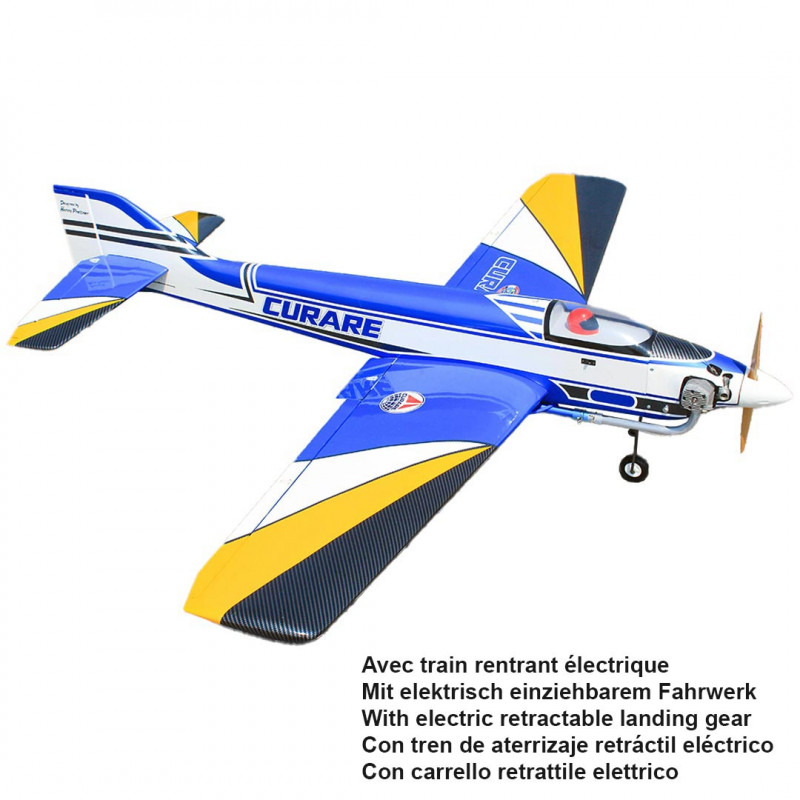

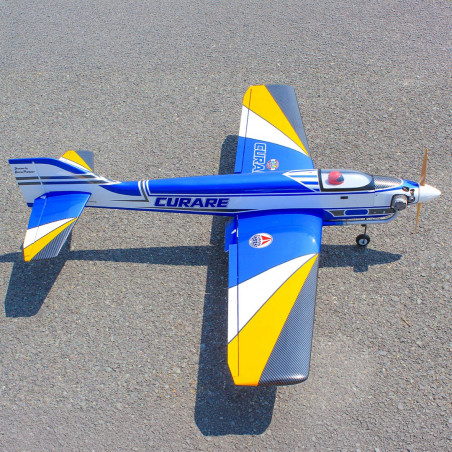

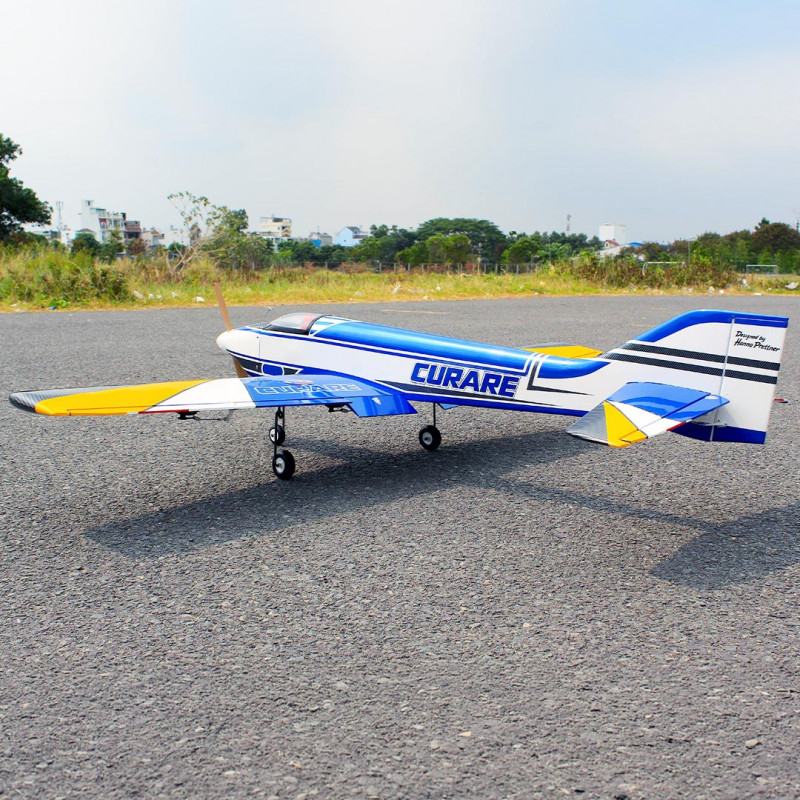

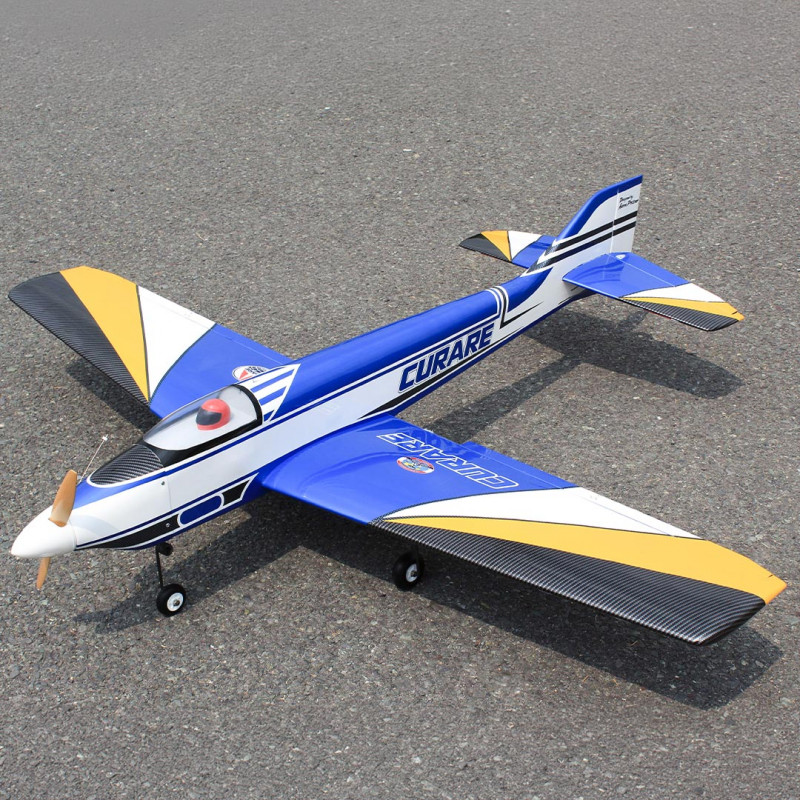

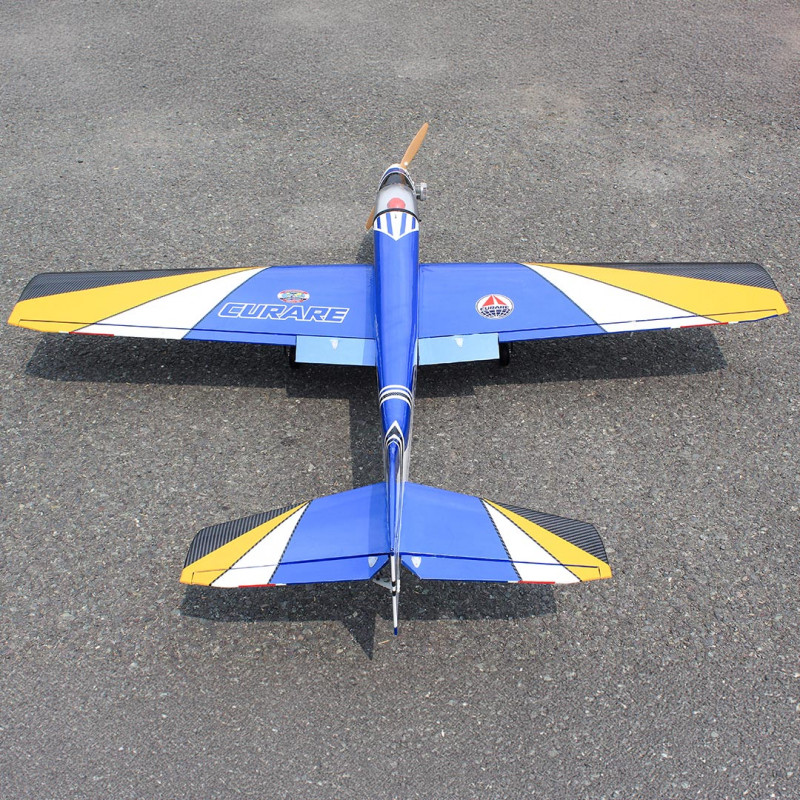

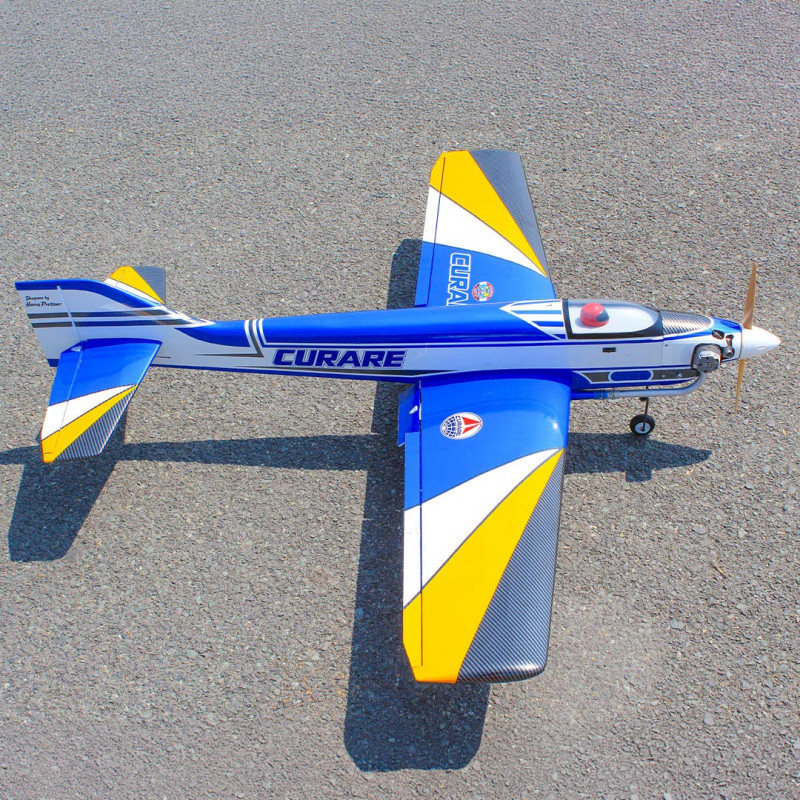

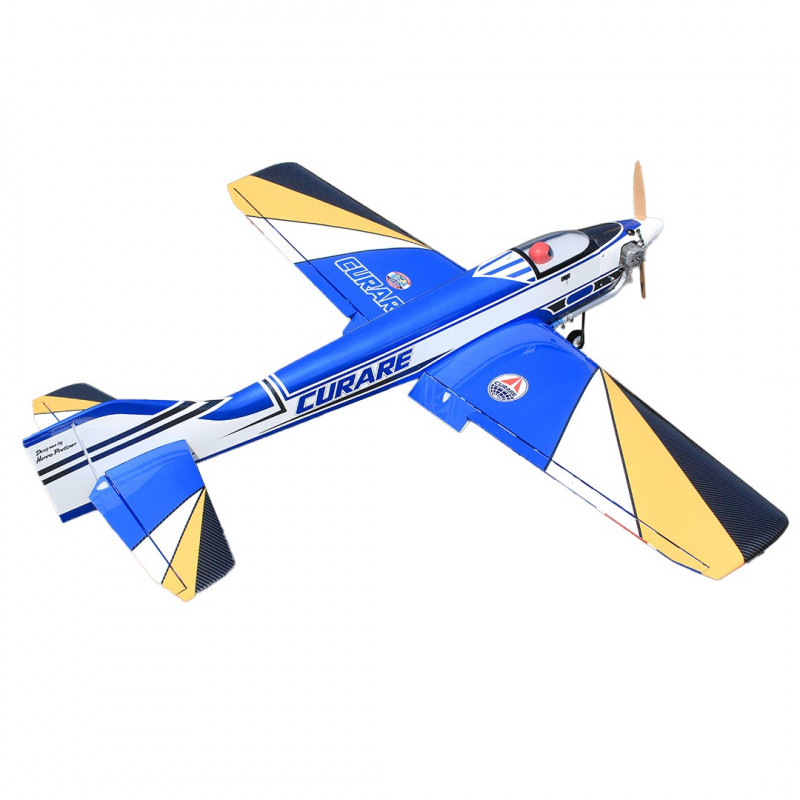

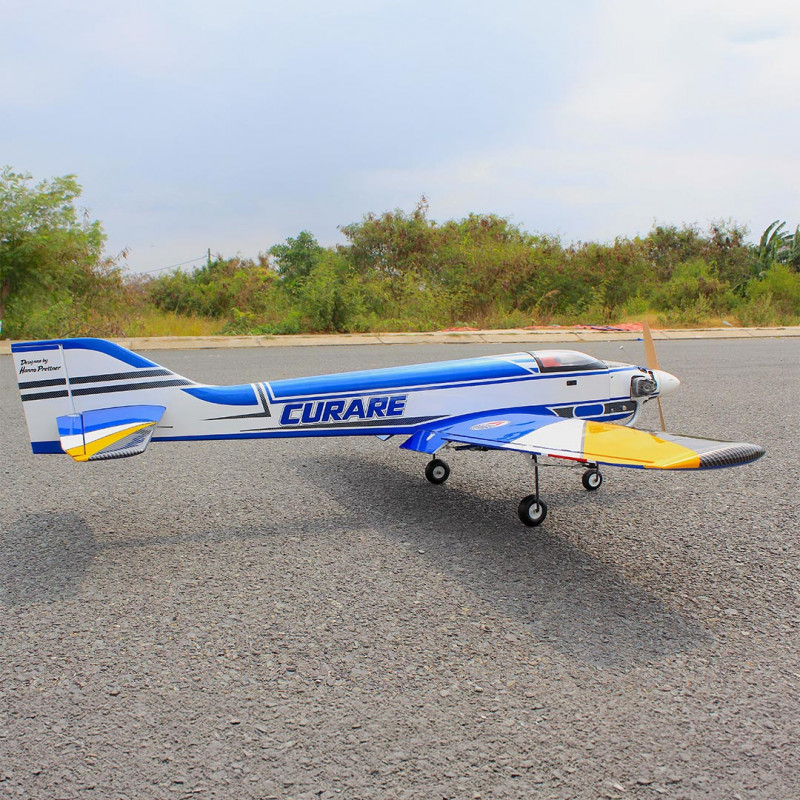

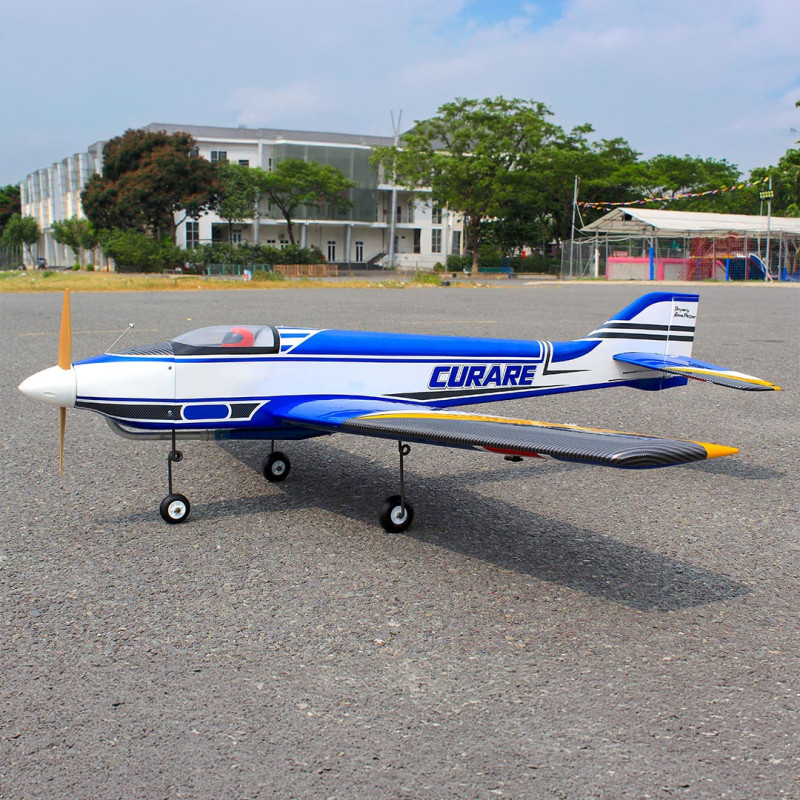

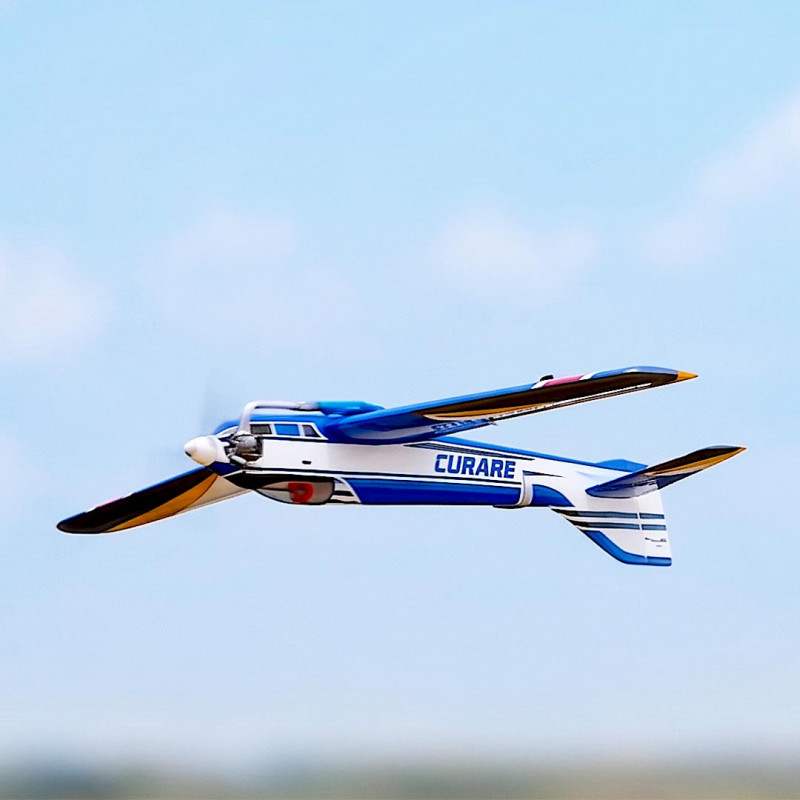

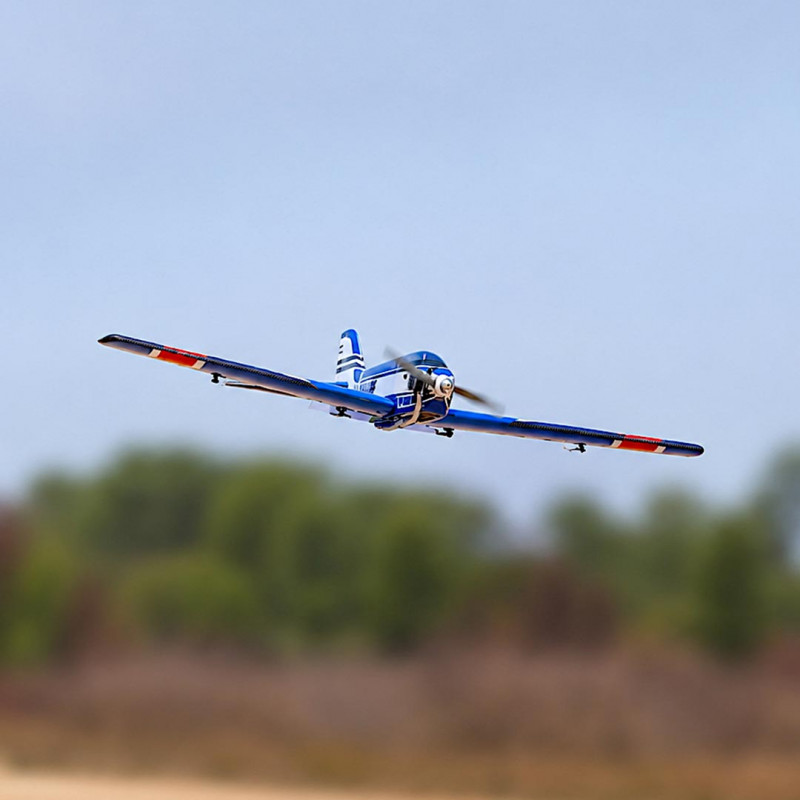

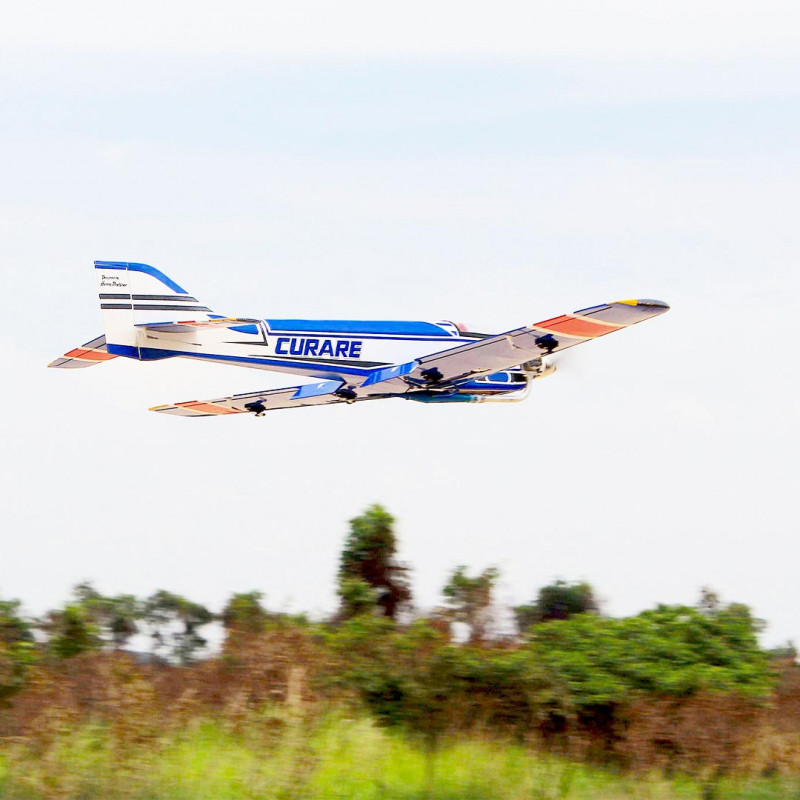

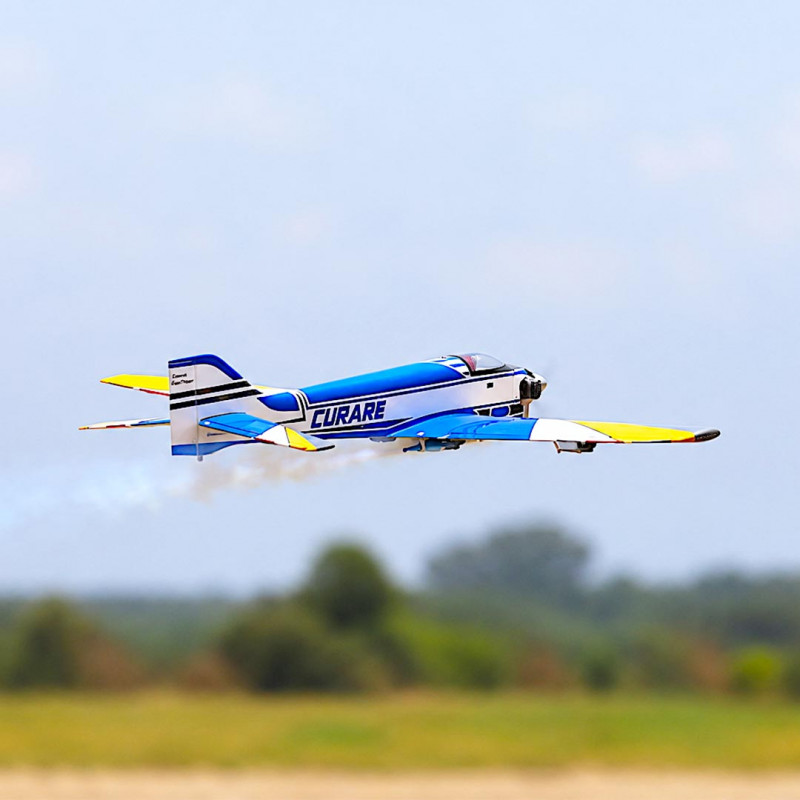

Radio-controlled thermal airplane Curare F3A ARF style + electric retractable landing gear

Technical data: designed for precision.

This is a high-performance aircraft intended for experienced pilots.

Wingspan: 162.6 cm (64")
Length: 149 cm (58.7")
Wing area: 45.5 dm² (705 in²)
Flying weight: 3.8 kg (8.4 lbs)
Glow engines: .61 – .75 (2-stroke) | .91 (4-stroke)
Gas engines: 10 – 15 cm³
Electric power system: 60E class motor | 80A ESC | LiPo 6S 4500–5500 mAh
Radio system: minimum 6 channels
Servos: 7 in total
(2× ailerons, 2× elevator, 1× rudder, 2× flaps)

Ailerons: dual servos for independent adjustment and flaperon mixing
Elevator: dual servos for precise control and increased redundancy
Rudder: pull-pull system for minimal play and optimal centering
Flaps: dedicated dual servos for stable and controlled landings

Key features:

Fully symmetrical tail surfaces (horizontal and vertical) providing better trajectory stability and precise aerodynamic response compared to flat designs.

Two-piece wings and removable tail surfaces for easy transport and storage without compromising rigidity.
Traditional balsa and plywood balsa structure with carbon fiber reinforcements in critical areas, ensuring low wing loading and excellent torsional rigidity.

Professionally applied heat-shrink covering for improved visibility and orientation in flight.

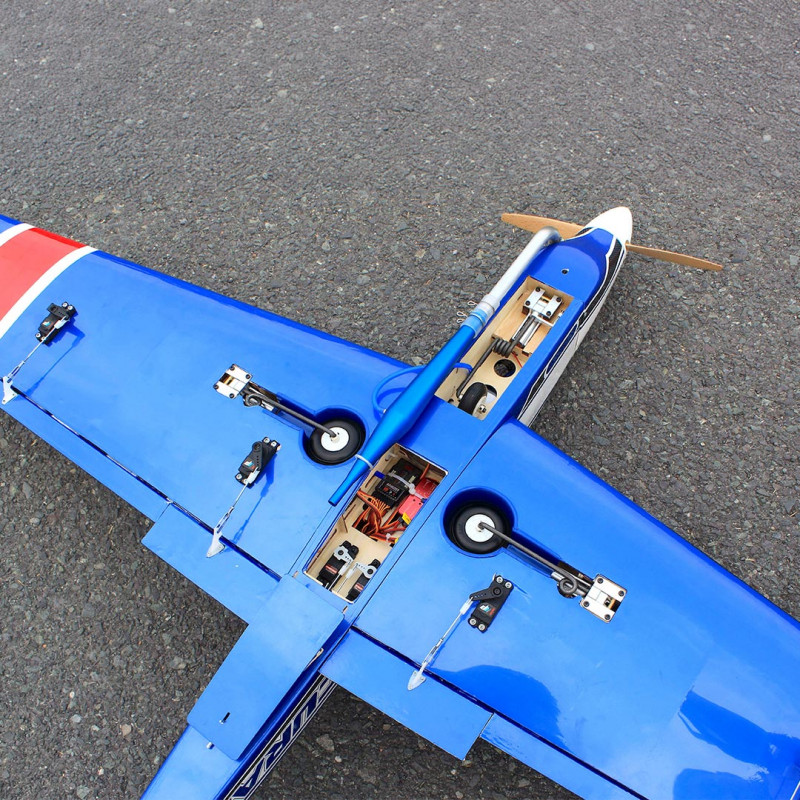

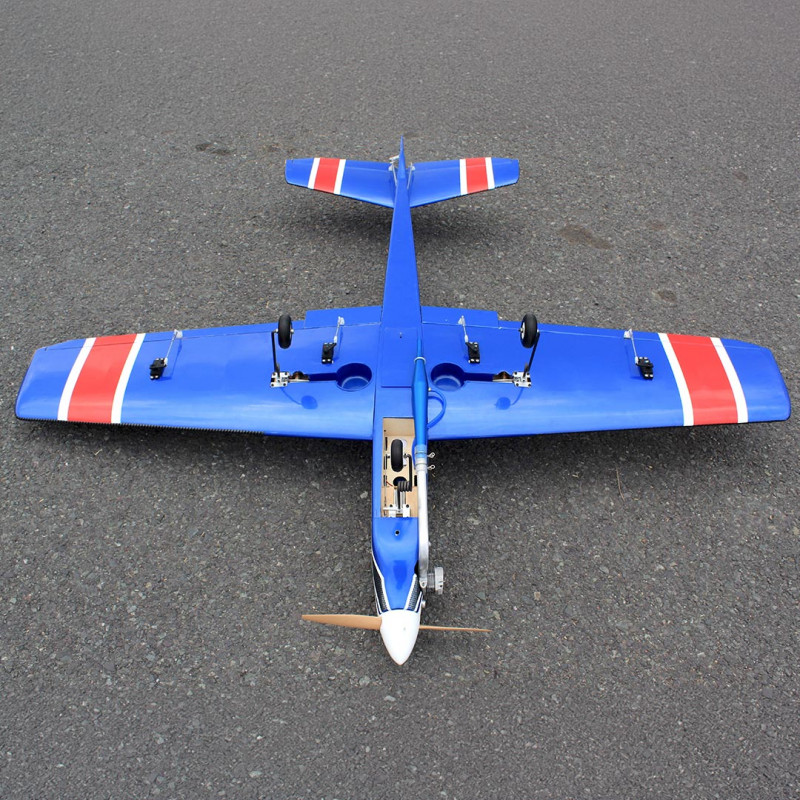

Landing gear system:

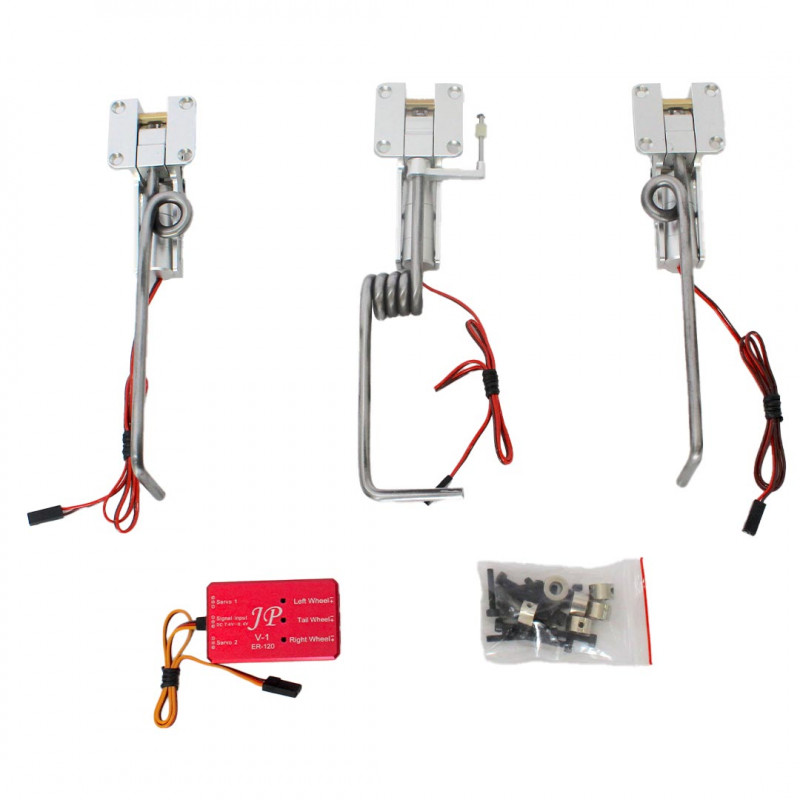

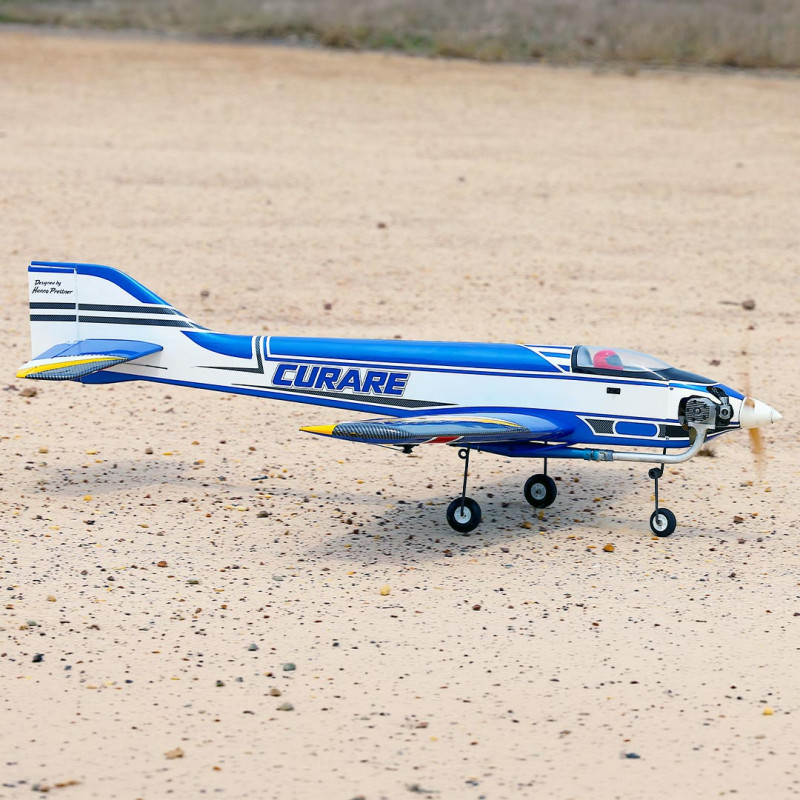

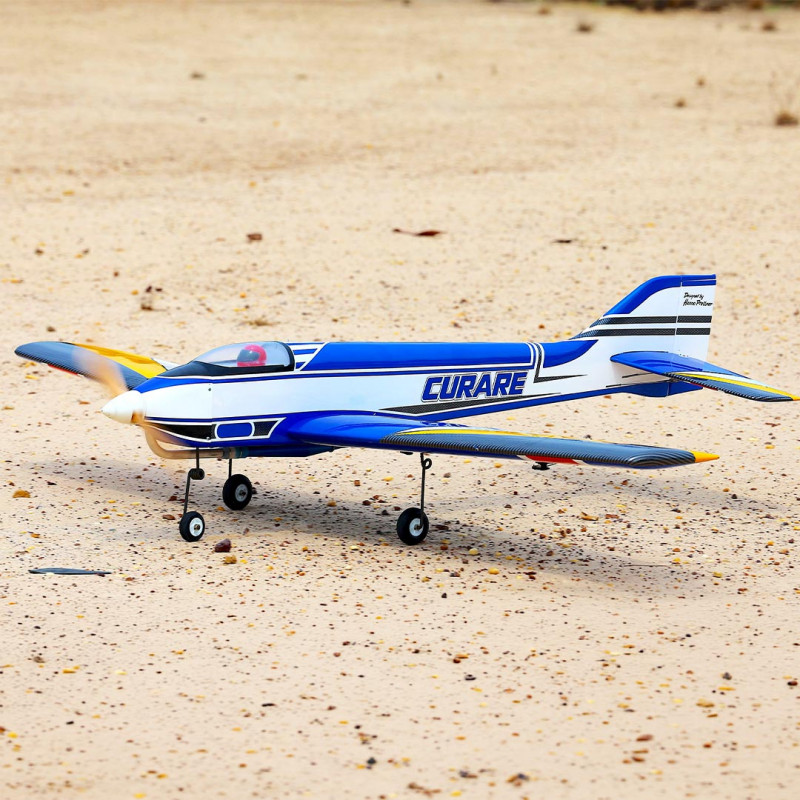

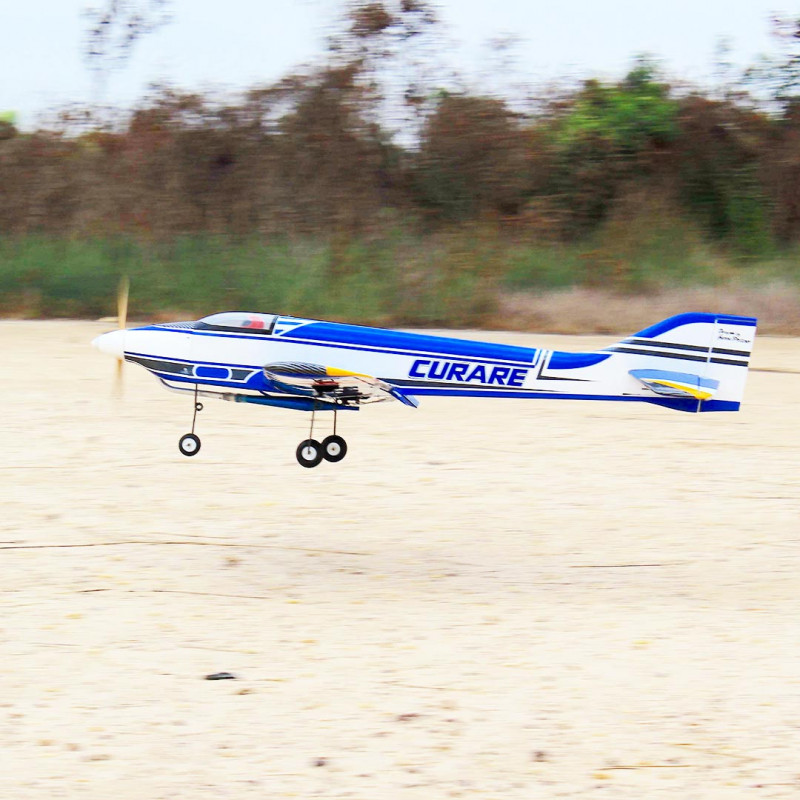

Included JP / Seagull electric retractable landing gear: ER-005, 3 components: main gear + nose gear) for better ground handling and a more realistic appearance.

PU rubber wheels with lightweight hubs for smooth rolling on different terrains.

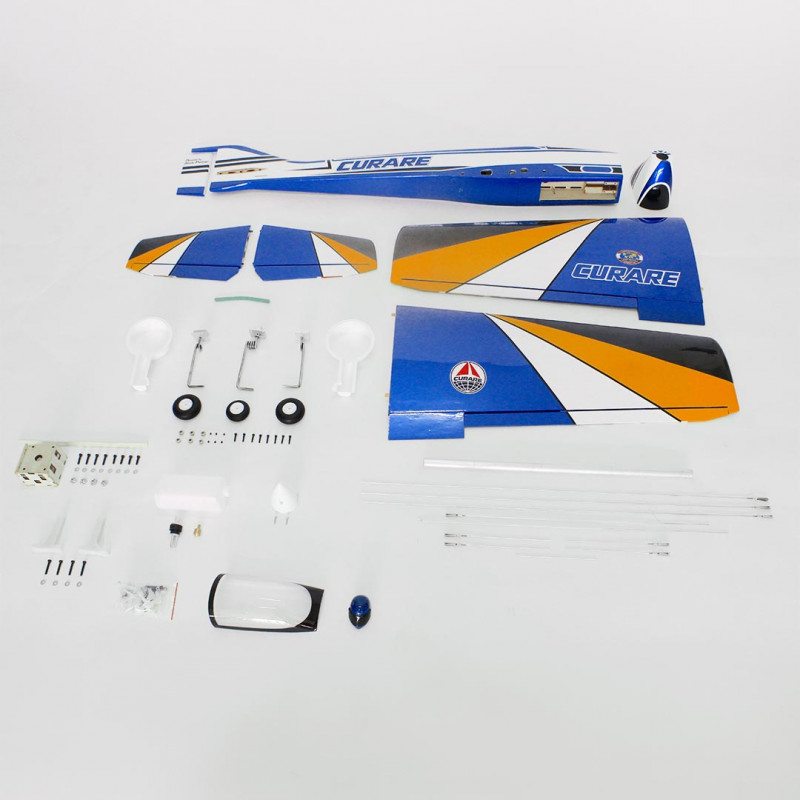

Comes with everything needed for both glow and electric setups.

Optimized for .61–.75 glow engines for a realistic response, while fully compatible with a 60E electric power system with easy battery access and flexible 6S configuration.

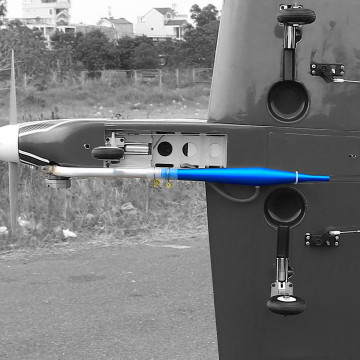

Optional resonator (Pipe 65.75) to maximize the performance of the glow engine.

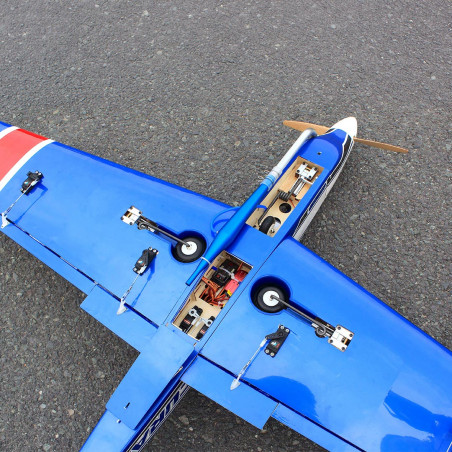

Removable cockpit for quick access to electronics, painted fiberglass cowl, and high-quality pre-applied finishes.

Blue - Performance Edition livery: modern high-contrast scheme for improved visibility
