Robart 602 90° mechanical nose retract for RC airplane

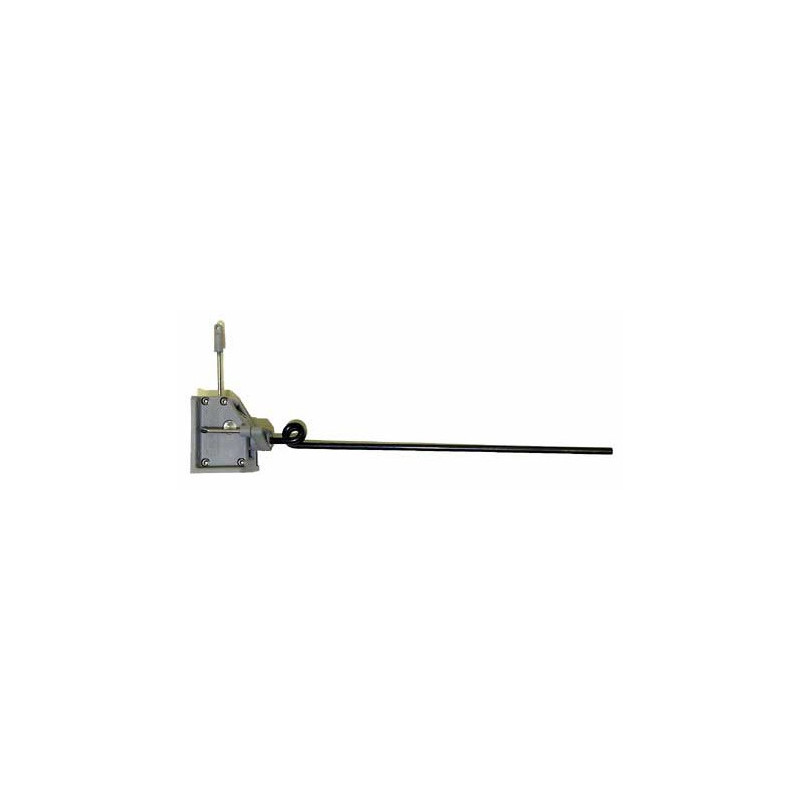

Robart 602 90° Mechanical Nose Retract

The Robart 602 mechanical nose retract is designed for radio-controlled airplanes up to approximately 5 lb or 2.27 kg. It complements the Robart 600 series mechanical main retracts and provides a compact solution for equipping an RC airplane with a retractable nose gear. The 602 model features a 90° retract mechanism with a 1/8-inch hardened steel wire leg, approximately 3.2 mm in diameter. Its mechanical system does not require a compressed air tank or pneumatic circuit: the retract and extend functions are directly controlled by a servo.

Integrated Steering Nose Retract

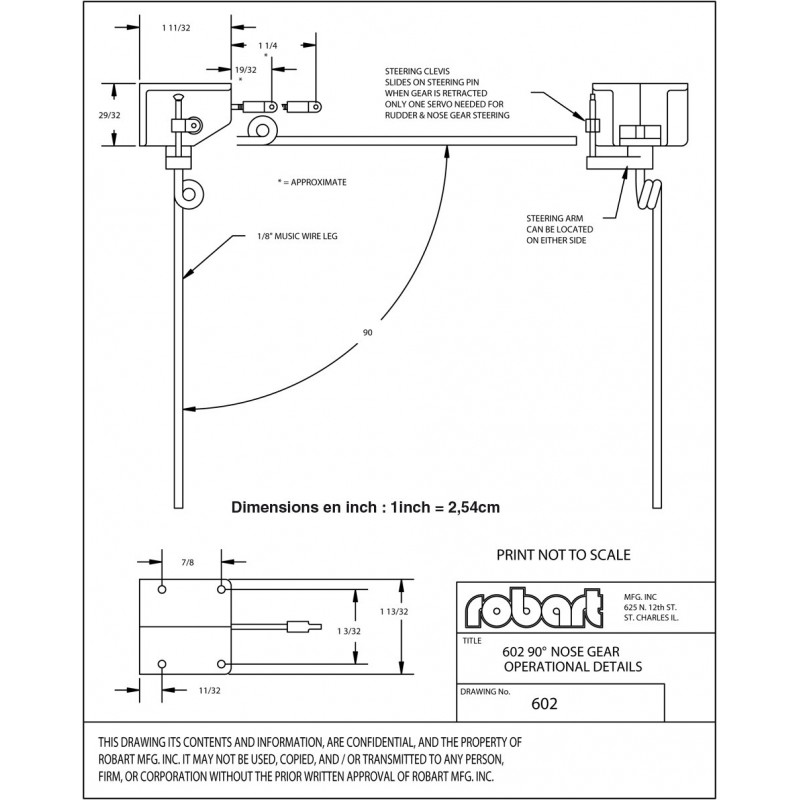

The Robart 602 incorporates a steering mechanism using control arms to steer the front wheel during taxiing. This feature enhances ground control during turns, taxiing to the runway, and alignment before takeoff. The mechanism has positive locking in both the retracted and extended positions. The cam system ensures a smooth operation sequence and helps securely hold the gear in each position. The nose gear is suitable for RC airplanes equipped with tricycle landing gear, provided that the fuselage space allows for a 90° retract.

Lightweight Reinforced Nylon Construction

The Robart 602 mechanism is made of reinforced nylon with fiberglass fibers. This construction maintains a lightweight design while providing the necessary rigidity for a nose gear intended for small RC models. The leg is made of 1/8" hardened steel, approximately 3.2 mm. This design is suitable for the stresses encountered during taxiing, takeoff, and landing of models up to 5 lb. The mechanism weighs around 1.7 oz or 48 g, minimizing the impact of the retractable gear on the overall aircraft weight.

Servo Operation

The Robart 602 operates with a standard or mini servo capable of delivering over 48 oz-in of torque, approximately 3.46 kg·cm. The servo directly controls the gear retraction mechanism. The servo is not included with the gear, so it is important to select a model that is compatible with the installation geometry and the nose gear steering system. The mechanical operation offers a simple solution for hobbyists looking to install a retractable nose gear without adding the weight and components required for a pneumatic system.

Robart 602 Specifications

Mechanical Nose Retract Robart 602 Reference 90° Retraction Angle 1/8" Hardened Steel Wire Leg / Approximately 3.2 mm Integrated Steering with Control Arms Positive Locking in Retracted and Extended Positions Mechanical Operation via Servo Standard or Mini Servo Recommended Torque: Over 48 oz-in / Approximately 3.46 kg·cm Reinforced Nylon with Fiberglass Construction Weight: Approximately 1.7 oz / 48 g For models up to 5 lb / Approximately 2.27 kg Servo not included Nose gear for RC airplanes with tricycle landing gear Installation without pneumatic circuit
