Servos
S02179072
Servo Winch Windforce 1004MG for mainsail KRICK

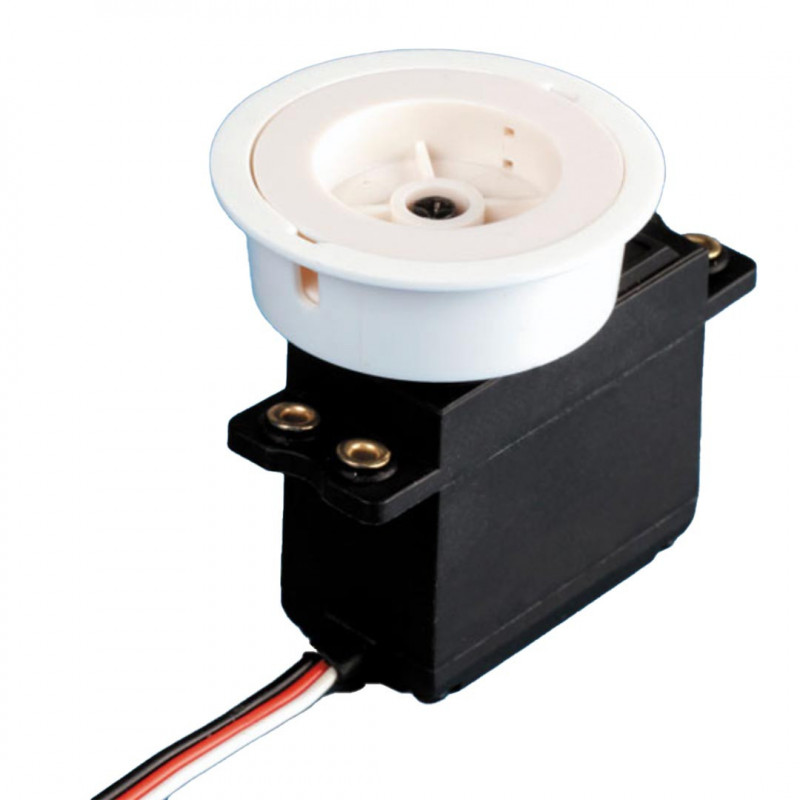

Windforce 1004MG Sail Winch for Mainsail
Standard size servo format for sailboats.
A particular feature of the Windforce winch series is the encapsulated drum. This allows guiding the sheet and prevents it from jumping off the drum.
On this version of the Windforce winch, the drum performs approximately 4 to 4.5 turns at the maximum lever travel.
Features:
* Metal gear
* Ball bearing
* Additional sheet guidance thanks to the closed drum
* Powerful

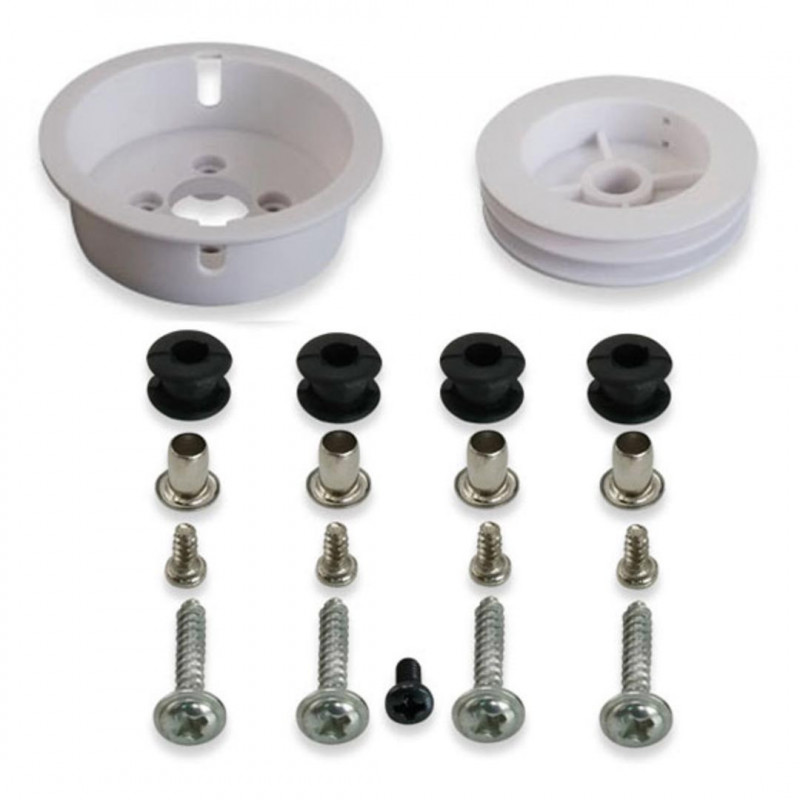

In the box:
Winch
Winch drum with guidance
Small parts for mounting
Dimensions:
Length approx. 40.5 mm
Width approx. 20.2 mm
Height approx. 38 mm
- Winding diameter approx. 24.5 mm
- Rope length per turn approx. 75 mm
- Number of turns approx. 4 - 4.5
- Torque 105 Ncm at 6 V
- Speed 0.9 s/360° at 6 V
- Supply voltage 4.8 V - 6 V
- Idle current 110 - 120 mA
- Operating current 300 - 350 mA
- Stall current 0.9 - 1.05 A
- Servo spline: 25T
- Weight 55 g
- JR/universal connection cable approximately 265 mm long
€33.00
VAT included
Including €0.05 for ecotax
Servo Winch Windforce 1004MG for mainsail KRICK
Plus de detailsServo Winch Windforce 1004MG for mainsail KRICK
€33.00
Fast shipping
Via Chronopost 24H
Via DPD 24/48H
Colissimo 48/72H
333217 products in stock
Real-time stock displayed
Secure payment
Secure payment
In 3 or 4 installments
4.6/5
★ ★ ★ ★ ★
Specialist since 1955
Fast shipping
Via Chronopost 24H
Via DPD 24/48H
Colissimo 48/72H
333217 products in stock
Real-time stock displayed
Secure payment
Secure payment
In 3 or 4 installments
4.6/5
★ ★ ★ ★ ★
Specialist since 1955
Windforce 1004MG Sail Winch for Mainsail
Standard size servo format for sailboats.
A particular feature of the Windforce winch series is the encapsulated drum. This allows guiding the sheet and prevents it from jumping off the drum.
On this version of the Windforce winch, the drum performs approximately 4 to 4.5 turns at the maximum lever stroke.
Features:
* Metal gear
* Ball bearing
* Additional sheet guidance thanks to the closed drum
* Powerful
In the box:
Winch
Winch drum with guidance
Small parts for mounting
Dimensions:
Length approx. 40.5 mm
Width approx. 20.2 mm
Height approx. 38 mm
- Winding diameter approx. 24.5 mm
- Rope length per turn approx. 75 mm
- Number of turns approx. 4 - 4.5
- Torque 105 Ncm at 6 V
- Speed 0.9 s/360° at 6 V
- Supply voltage 4.8 V - 6 V
- No-load current 110 - 120 mA
- Operating current 300 - 350 mA
- Stall current 0.9 - 1.05 A
- Servo spline: 25T
- Weight 55 g
- JR/universal connection cable approximately 265 mm long
