Sub Micro Digital Servo 1242 PC-M Protronik

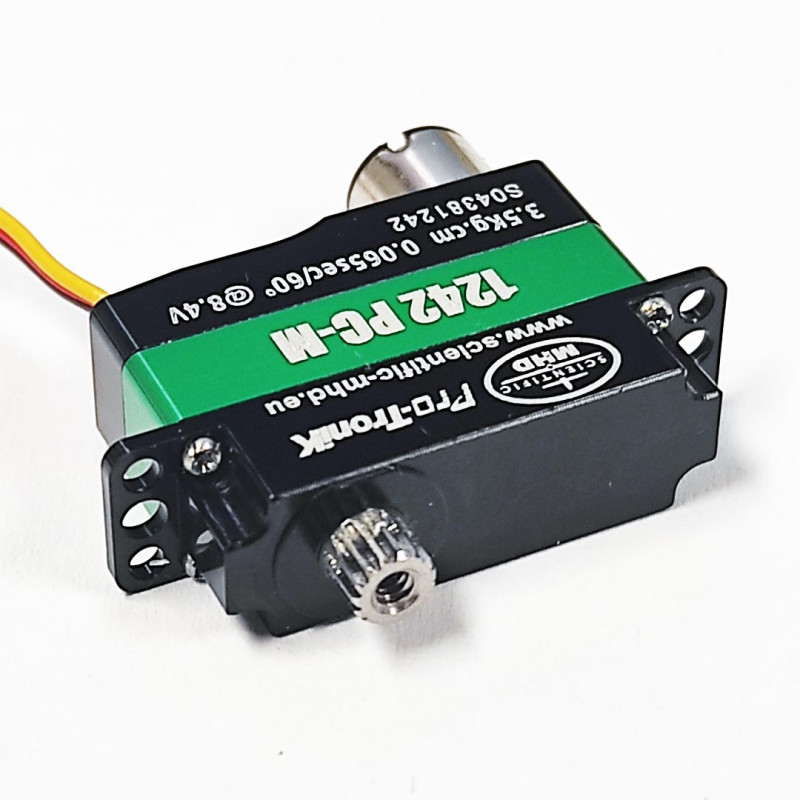

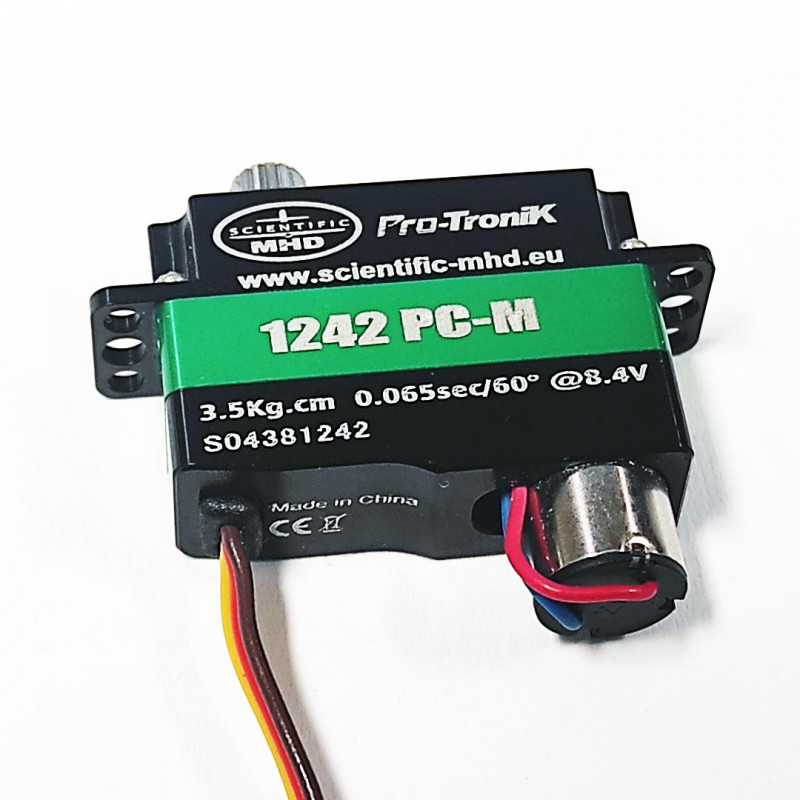

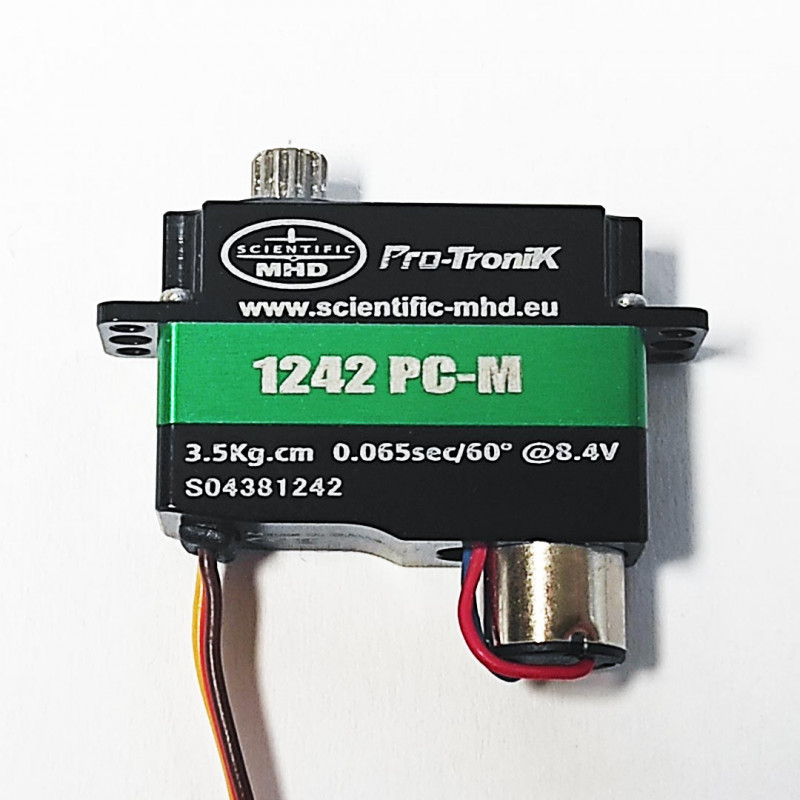

PTK Sub Micro Digital Servo 1242 PC-M

Ultra-high-end servo specially developed for use in DLG, F3L F5L F5b gliders, equivalent to the KST X08.

Everything in this servo has been designed to deliver the best performance.

Its low profile allows it to be mounted in composite glider wings.

High-quality electronics, potentiometer and motor.

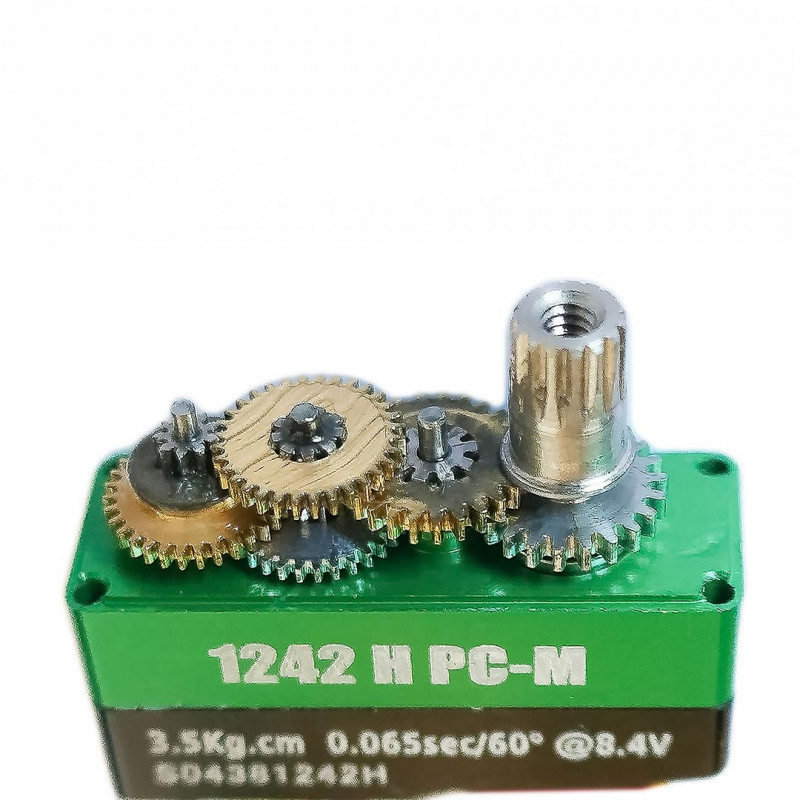

Metal gears mounted on two bearings for robustness, precision and reliability.

Digital

Programmable: ProTronik programming card (ref. S04379999)

EXCLUSIVE: This servo is developed and manufactured by ProTronik.

• Gears: stainless steel

• Bearings : YES 2

• Weight : 8g

• Dimensions: 23.5 x 16.8 x 8 mm

• Torque / Speed at 3.8V: 2.6kg/cm - 0.175s/60° Torque / Speed at

• Torque / Speed at 6.0V: 3kg/cm - 0.083s/60°

• Torque / Speed under 8.4V: 3.5kg/cm - 0.065s/60°

• Operating voltage: 3.8V - 8.4V

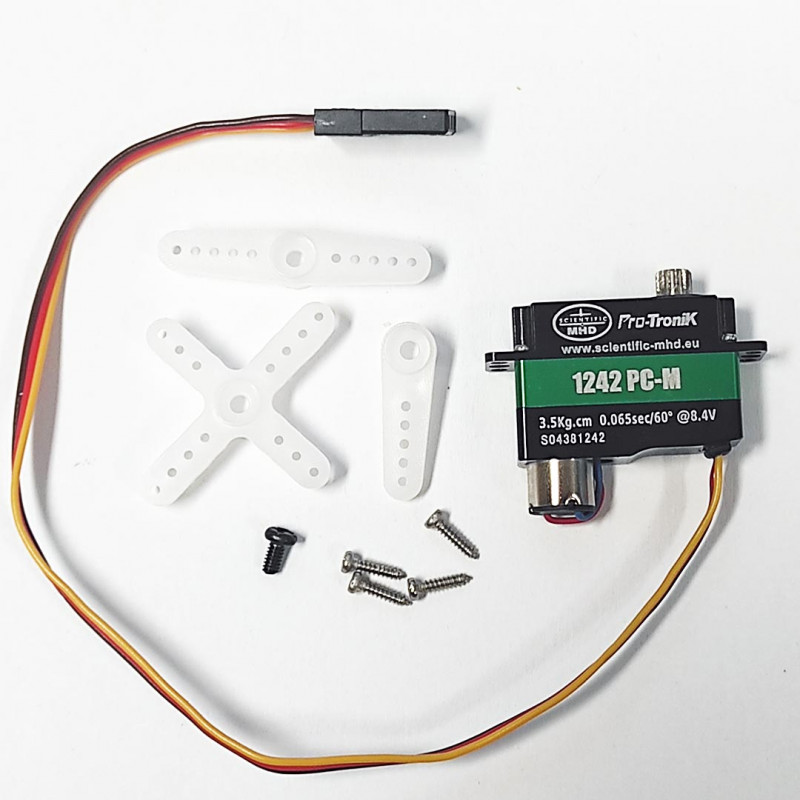

• Cord: 200mm

• Plug: JR universal

• Dead band: 3µs

• Electrical accuracy: 2µs
