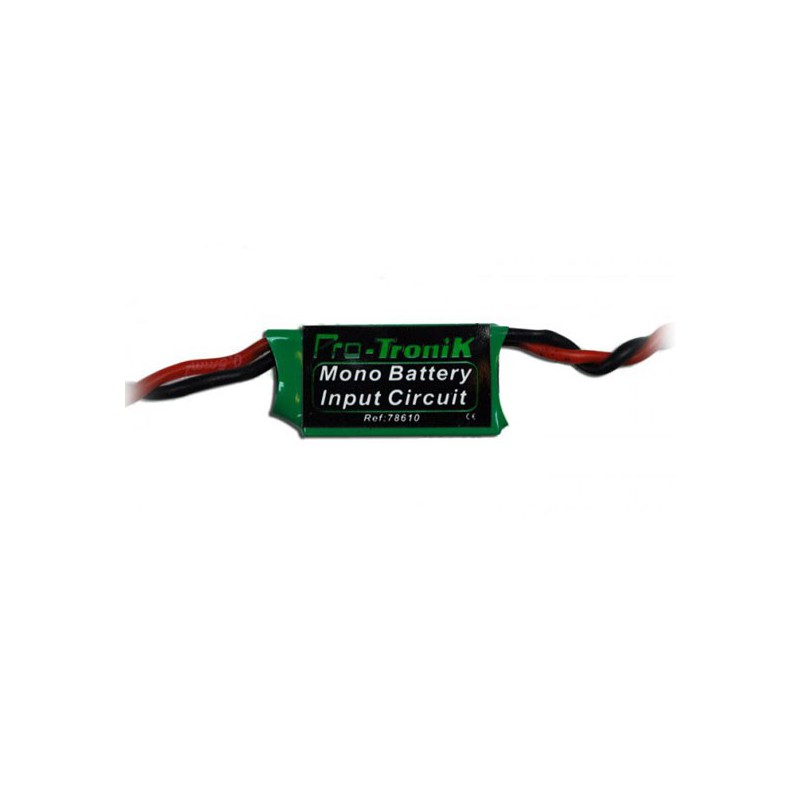

Accessory for radio Double power supply M-BIC

Features of the M-BIC S03878610 dual power supply module receiver

This module is used in pairs and allows dual power supply of the receiver by two independent circuits, but communicating with each other (4.8V or 7.4V battery).

For batteries greater than 2S, it is imperative to use a U-BEC before this module.

Ideal for securing your radio installation.

Input / output voltage 4 to 10V, max current 10A.

Input source battery type, ubec...

The M-BIC Pro-TroniK modules are compatible with the following power sources:

• 4-cell NiCd or NiMH battery pack (4.8V)
• 5-cell NiCd or NiMH battery pack (6V)
• 2S LiPo pack with 5V to 6V regulator
• External BEC of 5V to 6V
• Built-in BEC in a speed controller of 5V to 6V
• External UBEC or SBEC of 5V to 6V

M-BIC PARAMETERS:

• Weight 10 g
• Input connector: 0.5mm2 silicone power cord JR type
• Output connector: 0.5mm2 silicone power cord JR type
• Technology used: VLDOV
• Input voltage: 4 to 10V
• Battery compatibility: NiCd, NiMH, LiIon, LiPo, and LiFe
• Idle current consumption: None
• Voltage drop in the module: 0.23 V - 1 A, 0.32 V - 3 A, 0.42 V - 6 A
• Permanent output current: 10 A (20 A for 10 s)
• Reverse polarity protection: Yes
• Output short circuit protection: No

Quick Difference

• D-BIC S03878606 → module only
• M-BIC S03878610 → works in pairs (more secure)
