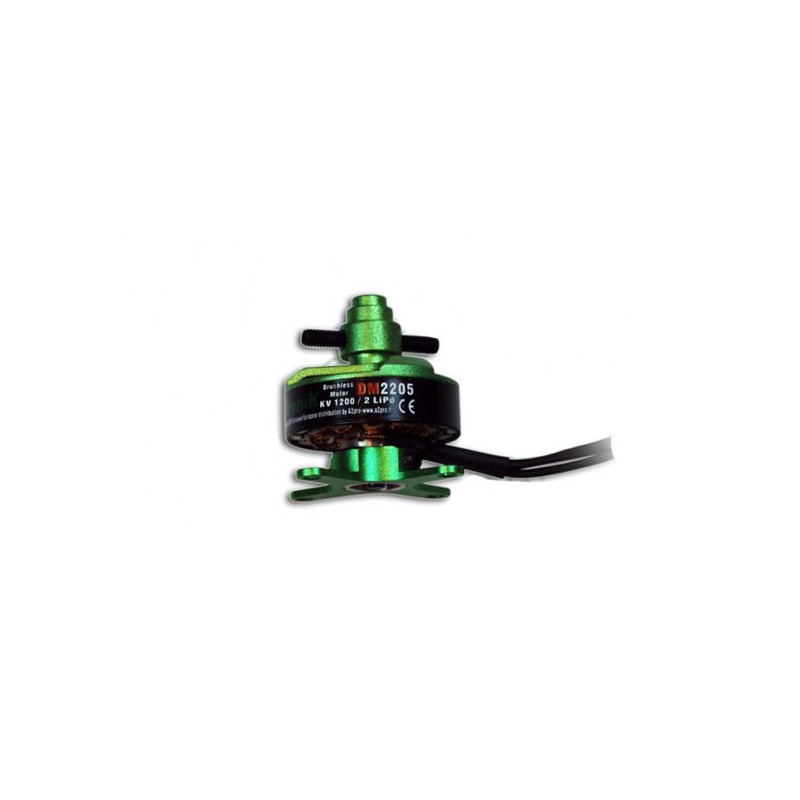

Brushless motor Protronik DM2205 Kv1200 28g

Discover the selection of brushless motors offered by Scientific MHD, designed to meet the needs of aeromodelling enthusiasts looking for a reliable, high-performance, and easy-to-install motor for their radio-controlled airplanes.

Suitable for RC aerobatic planes, warbirds, trainers, scale models, or RC gliders, Protronik electric motors offer an excellent balance between power, efficiency, and lightweight construction.

Thanks to their brushless outrunner design, these RC motors provide smooth operation, quick acceleration, and excellent energy efficiency with LiPo batteries ranging from 2S to 6S and more depending on the models.

The range allows you to easily find the corresponding RC airplane brushless motor based on weight, flying style, and desired performance.

Each Protronik motor comes with mounting accessories to facilitate installation on your radio-controlled model: cross mount, propeller adapter, and pre-soldered connectors.

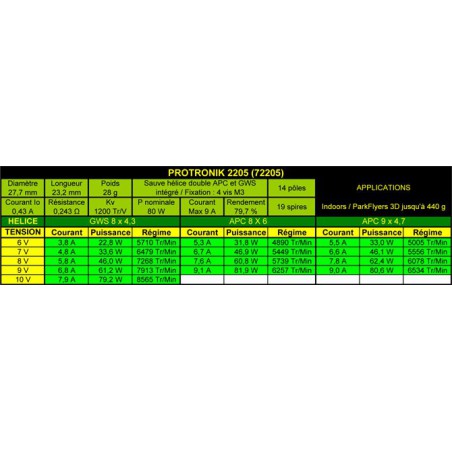

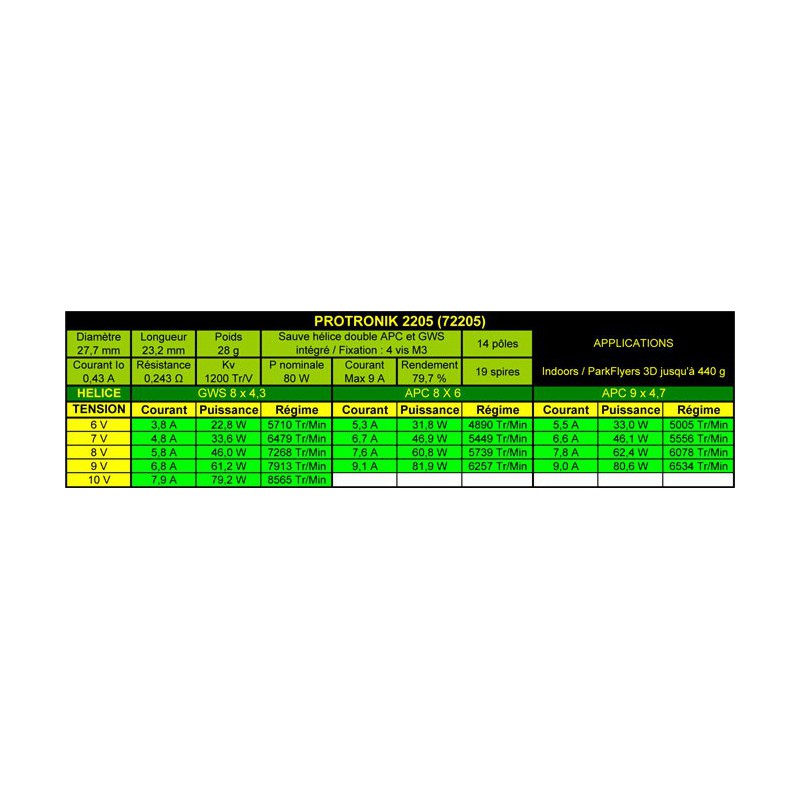

To simplify your choice, Scientific MHD also provides a technical comparison table to quickly identify the KV rating, recommended propeller, permissible power, and compatible aircraft type.

Main features of the Brushless Protronik DM2205 Kv1200 motor:

• Voltage: 7.4 to 11.1 V
• Current: 9 A
• KV: 1200 rpm/V

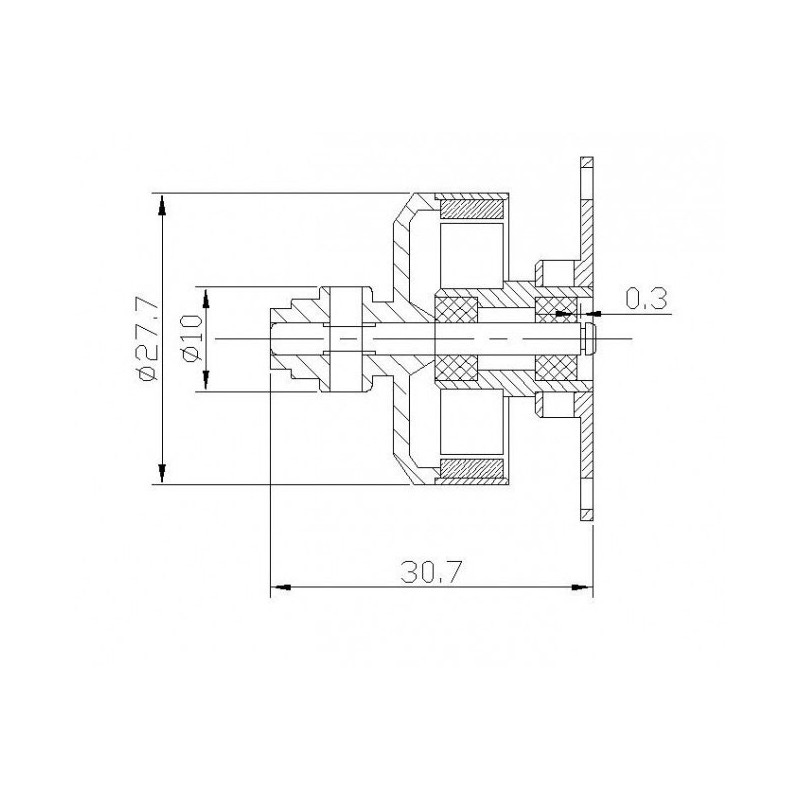

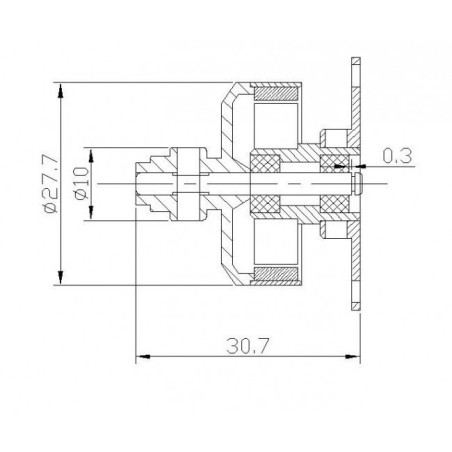

• Outer diameter: 27.7 mm
• Total length: 30.7 mm
• Motor length without shaft: 23.2 mm
• Shaft diameter:
• Weight: 28 g
• Maximum power: 80 W
• Recommended maximum RC airplane weight:
  • 440 g in trainer configuration
  • 220 g in aerobatic configuration

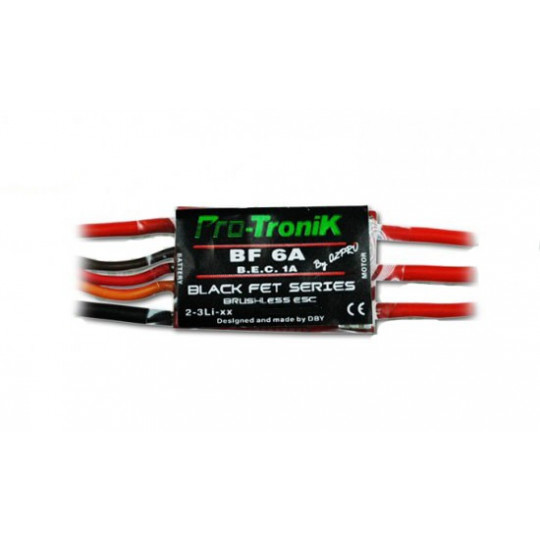

• Recommended ESC: 10A
• Recommended propellers:
  • 8x4.3 to 9x4.7
