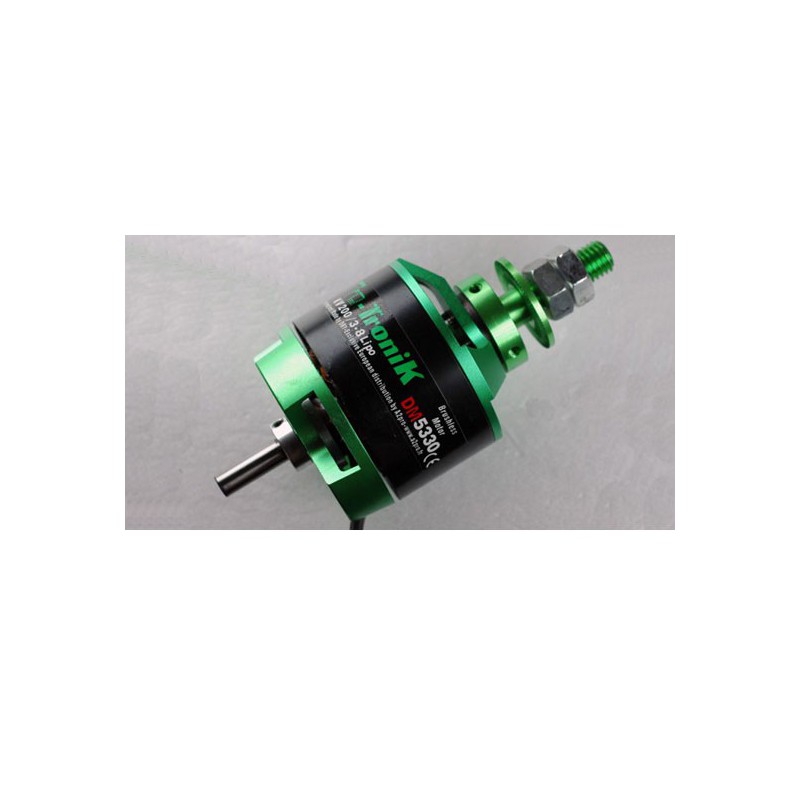

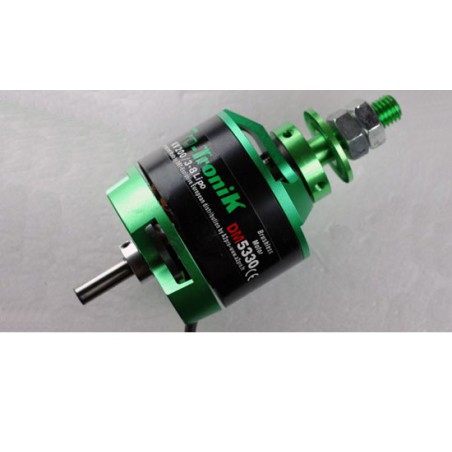

Brushless Motor Protronik DM5330 Kv260 700g

Discover the selection of brushless motors offered by Scientific MHD, designed to meet the needs of aeromodelling enthusiasts looking for a reliable, high-performance, and easy-to-install motor for their radio-controlled airplanes.

Suitable for RC aerobatic planes, warbirds, trainers, scale models, or RC gliders, Protronik electric motors offer an excellent balance of power, efficiency, and lightweight design.

With their brushless outrunner design, these RC motors provide smooth operation, quick acceleration, and excellent energy efficiency with LiPo batteries ranging from 2S to 6S and more depending on the models.

The range makes it easy to find the right RC airplane brushless motor based on weight, flying style, and desired performance.

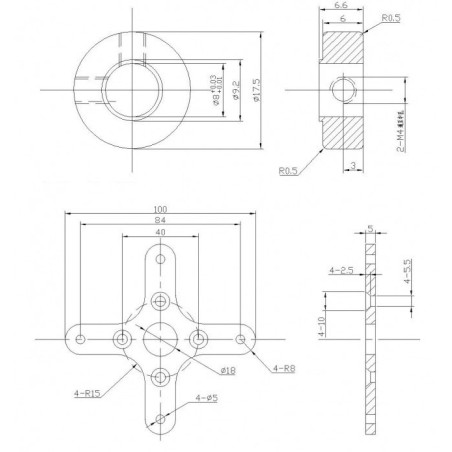

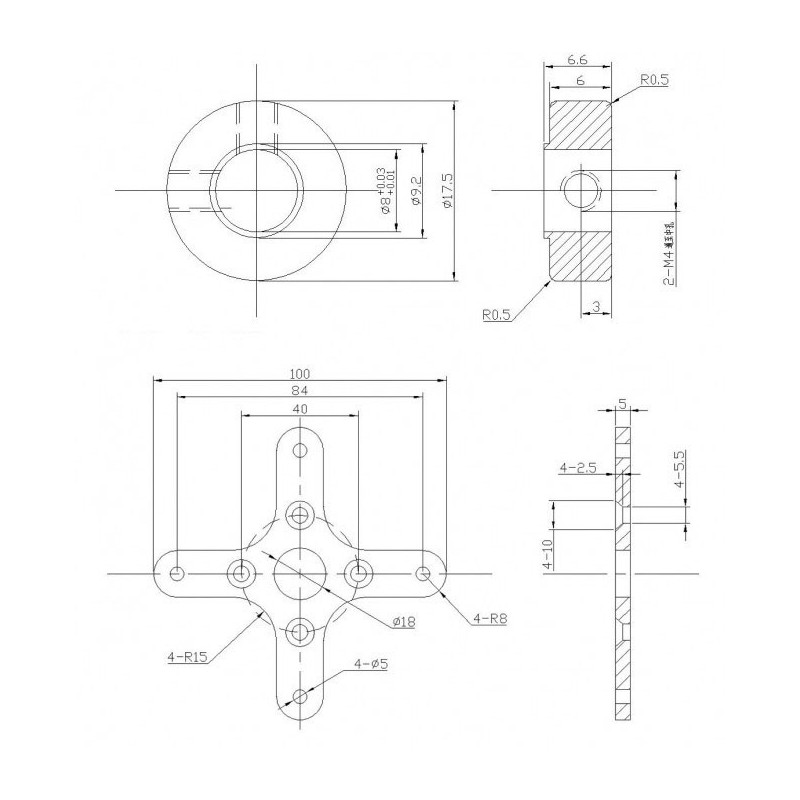

Each Protronik motor comes with mounting accessories to facilitate installation on your radio-controlled model: cross mount, propeller adapter, and pre-soldered connectors.

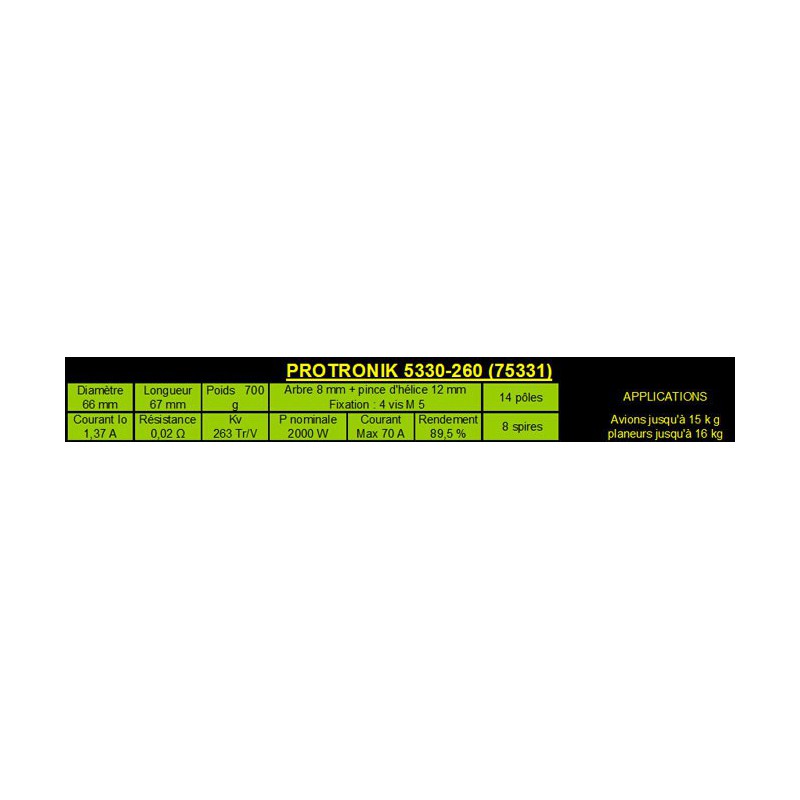

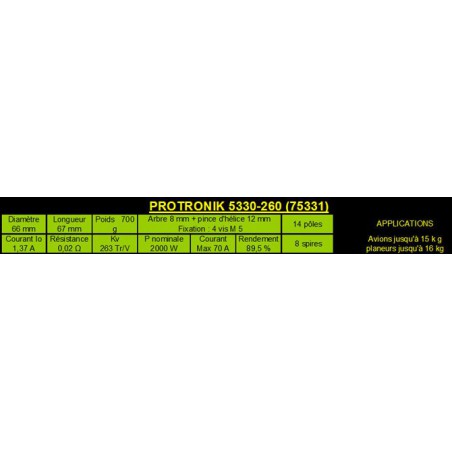

To simplify your choice, Scientific MHD also provides a technical comparison chart to quickly identify the KV rating, recommended propeller, permissible power, and compatible aircraft type.

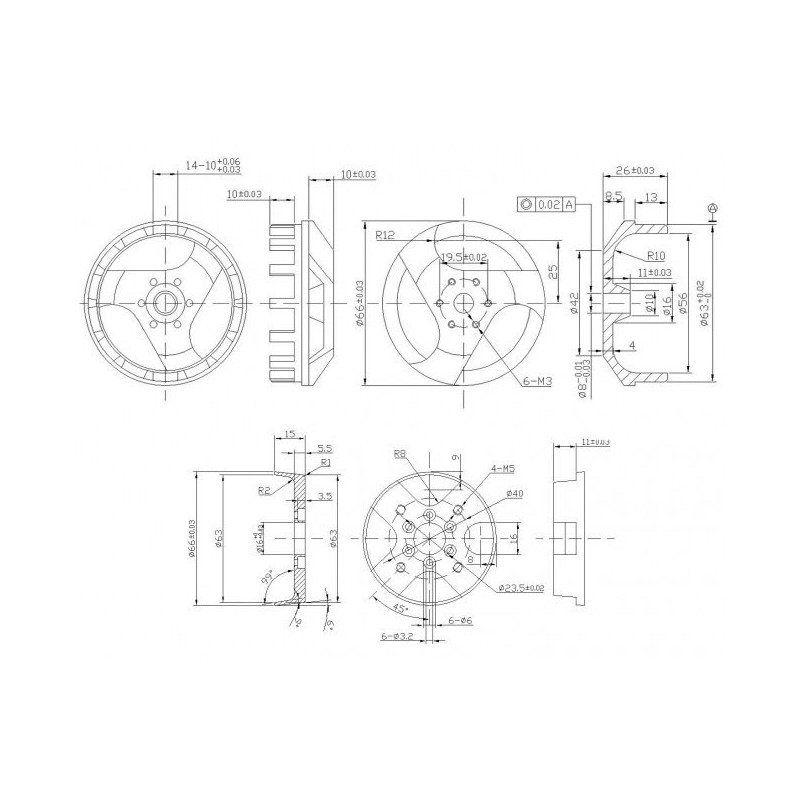

Main features of the Brushless Protronik DM5330 Kv260 motor:

• Voltage: 11.1 to 29.6 V
• Current: 70 A
• KV: 260 rpm/V
• Outer diameter: 66 mm
• Total length: 144 mm
• Motor length without shaft: 64 mm
• Shaft diameter: 8mm
• Weight: 700g
• Maximum power: 2000W
• Recommended maximum RC airplane weight:
  • 16000 g for trainer configuration
  • 17000 g for motor glider configuration
  • 11000 g for aerobatic configuration
  • 6000 g for 3D flight configuration

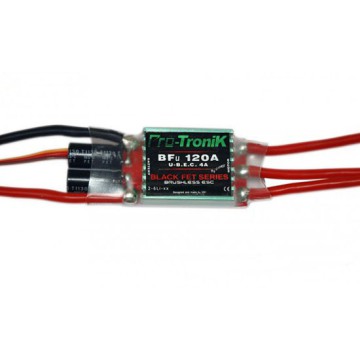

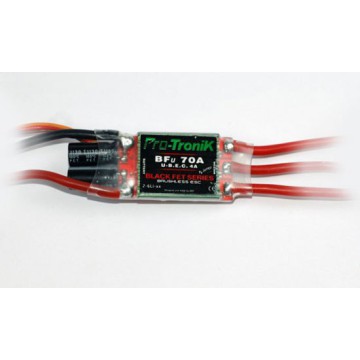

• Recommended ESC: 70 or 120 A
• Recommended propellers:
  • 18x9 to 20x8
