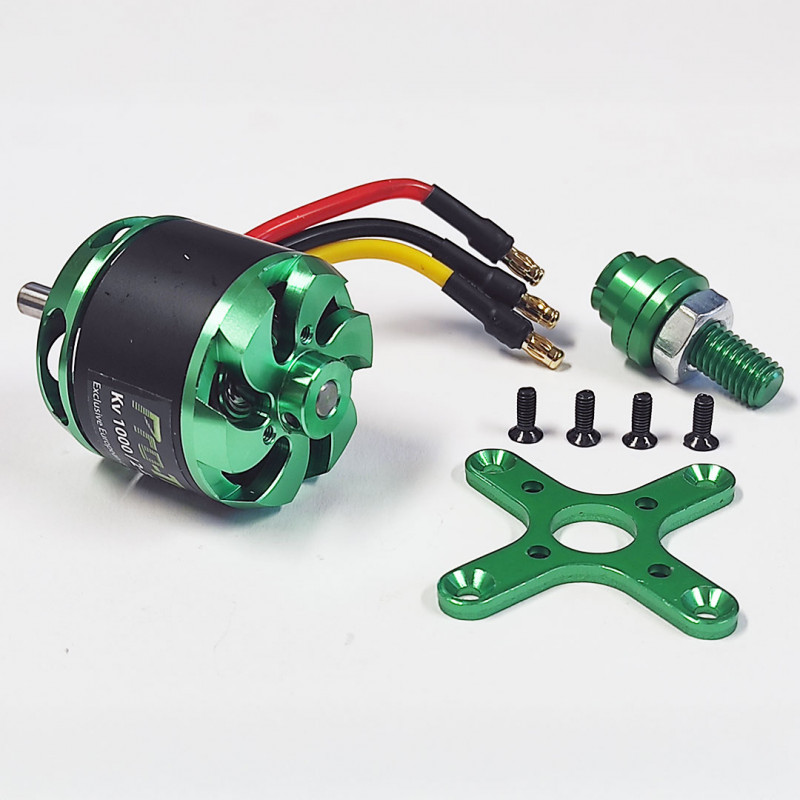

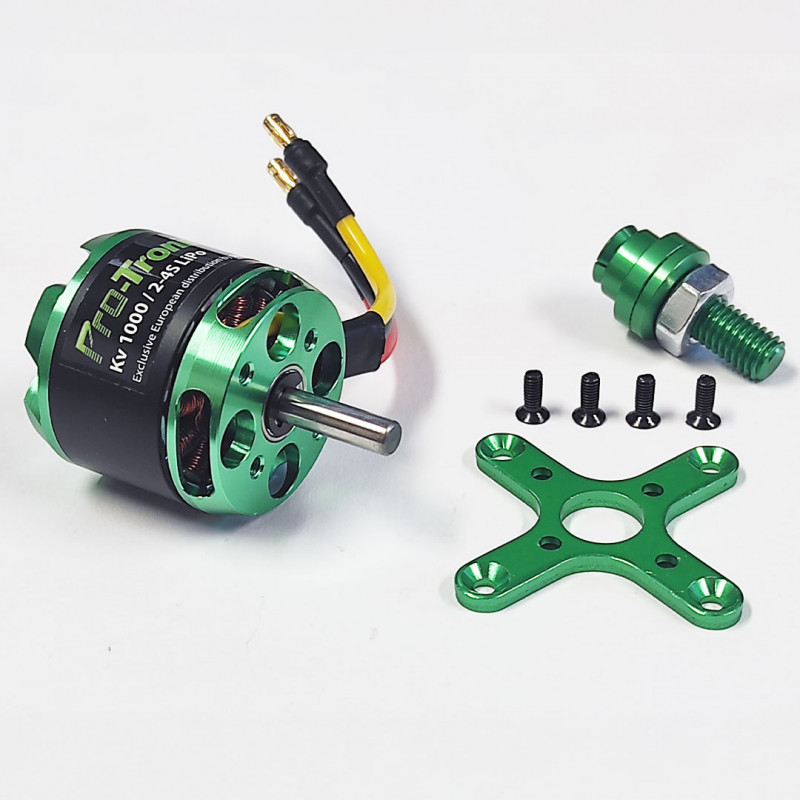

Brushless Motor Protronik Power DM2615P Kv1000 104g

Brushless motor 2615P / Kv 1000 new POWER ProTronik seriesHigh-quality brushless motor, French design.For airplanes up to 2.8kg / motor gliders up to 3.3kgKv 1000 / 104.2 g / 330 W

Efficiency and recommended setups

With a measured efficiency of 83.3%, this motor ranks particularly high in its category.

This energy efficiency allows for fully utilizing the available power while limiting losses.

Under LiPo 3S battery, the Master Airscrew -NE 9x6 and 10x5 propellers offer an excellent balance between thrust, speed, and consumption.

For projects requiring higher top speed, it is also possible to opt for an 8-inch propeller with a LiPo 4S battery, a configuration perfectly suited for fast models.

Flight behavior

The operation of the DM2615P-1000 remains true to the quality standards of the Protronik brand.

It stands out for its great smoothness, excellent mechanical stability, and absence of parasitic vibrations.

Thanks to its higher kV, the rpm increases are more pronounced and responsive, providing a more dynamic throttle response, ideal for pilots who appreciate immediate feedback.

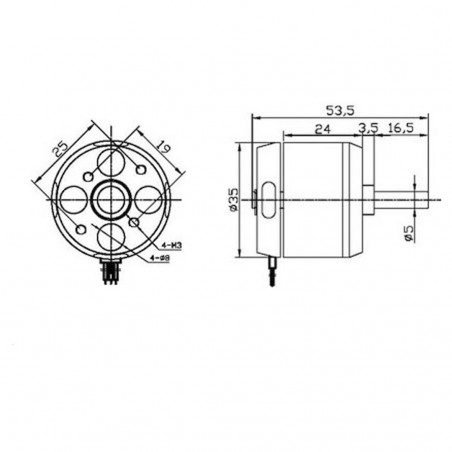

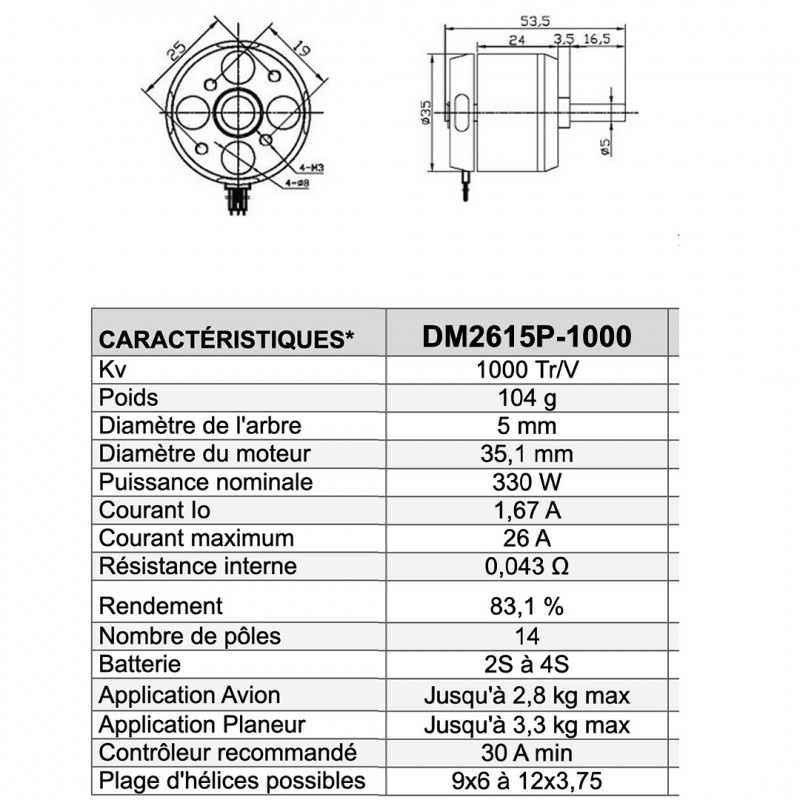

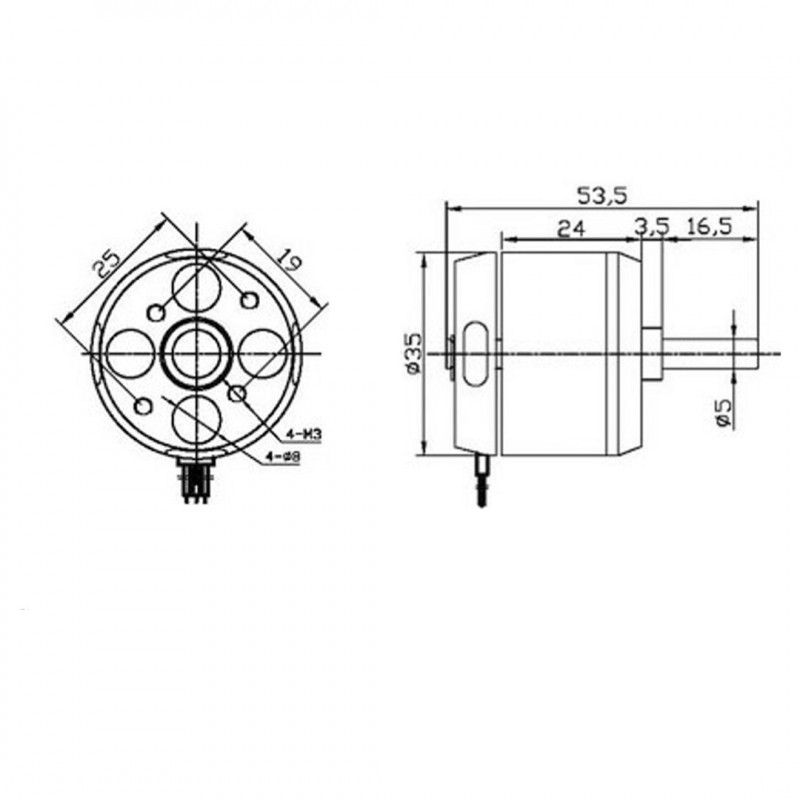

Main features of the Brushless Protronik DM2615P Kv1000 motor:

• KV: 1000 rpm/V
• Outer diameter: 35.1 mm
• Total length: mm
• Motor length without shaft: 33.5 mm
• Shaft diameter: 5 mm
• Weight: 104.2 g
• Rated power: 330W
• Maximum recommended RC airplane weight:

Airplane up to 2.8 KG

Glider up to 3.3 kg

• Recommended ESC: 33A
• Recommended propellers: 9x6 to 12x3.75

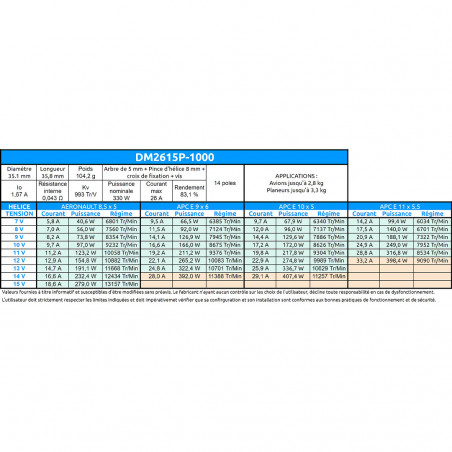

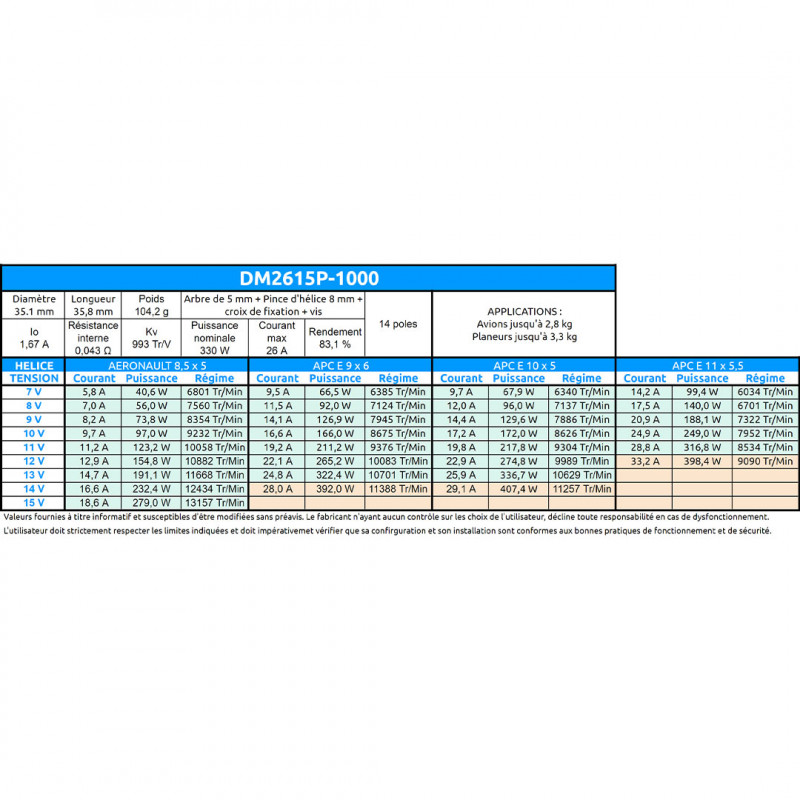

To simplify your choice, Scientific MHD also provides a table technical comparison chart to quickly identify the kV, recommended propeller, permissible power, and compatible aircraft type.

Ideal applications

This Protronik Brushless electric motor is particularly recommended for:

• fast and sporty electric airplanes,

• radio-controlled models seeking a good balance between efficiency and speed,

• configurations requiring a compact, lightweight, and high-performance motor.

Distributed under the Protronik brand, the DM2615P-1000 stands out as a reliable and high-performance solution for those looking to equip their radio-controlled aircraft with a modern, efficient, and well-controlled brushless motor.

Power Protronik Series: Brushless Motors Designed for Modern RC Airplanes

Summary Model Analysis Magazine January 2026 / Read the full article

The new Power series by Protronik marks an interesting evolution in the world of brushless motors for RC airplanes.

Tested in specialized press, this range has been developed around a serious French design, with a real focus on efficiency, cooling, and mechanical robustness.

Modelers are now looking for brushless motors capable of providing more power, less heat, and better compatibility with modern LiPo batteries. This is exactly the positioning of this new generation of RC motors.

The Power series motors notably use a balanced black bell for better heat dissipation, optimized multi-strand windings, high-performance magnets, and a reinforced 5mm shaft.

The ability to easily reverse the motor shaft is also a real advantage for pilots wishing to adapt their setup to different types of RC airplanes.

This series targets both trainer airplanes, RC aerobatic planes, electric warbirds, motorcycle-gliders, and some 3D airplanes.

DM2615P-1000: More Speed for Sport RC Airplanes

The DM2615P-1000 shares the same mechanical base but with a higher Kv.

This configuration brings more speed and agility in flight. Pilots looking for a brushless motor for sport RC airplanes, electric flying wings, or small warbirds will particularly appreciate this more dynamic behavior.

The test highlights an efficiency of over 83%, with excellent operational stability even at high speeds.

Paired with an APC-E 10x5 propeller and a 3S LiPo battery, this motor provides a very interesting thrust for RC airplanes seeking a good balance between speed and autonomy.

It also remains very quiet and particularly enjoyable in flight.
