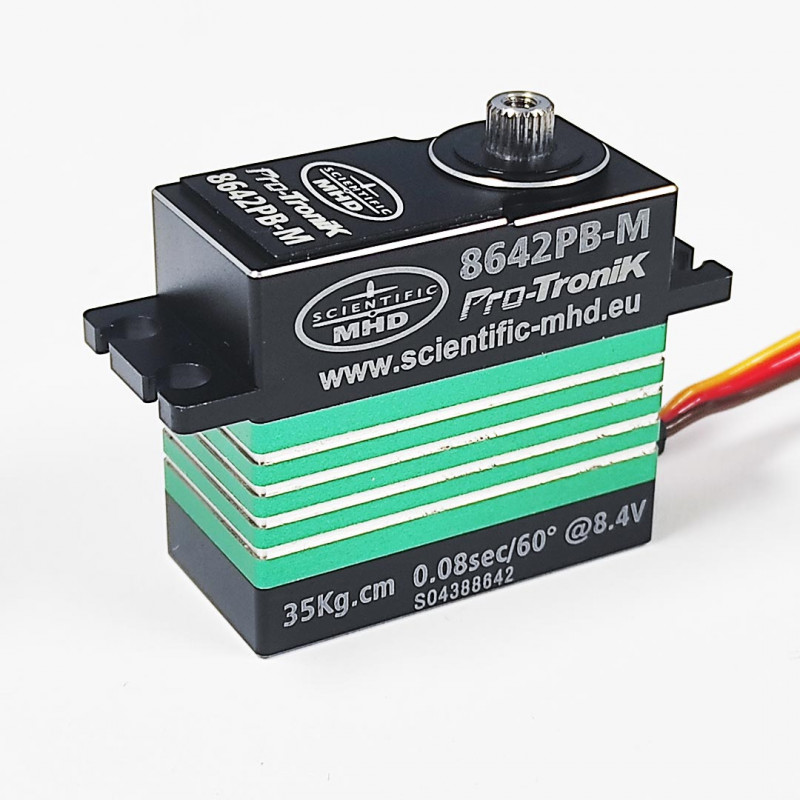

Digital standard servo Brushless 8642 PB-M 36kg Protronik

Digital standard brushless servo 8642 PB-M 36kg Protronik

High-end servo, aluminum case, powerful, fast, perfectly suited for cars, helicopters, or any other application requiring a quality servo.

High torque, Speed, Precision!

Everything in this servo, with a high torque of 36kg, has been designed to satisfy the most demanding users.

Brushless motor

Digital

Programmable: Pro-Tronik programming card (ref. S04380000)

EXCLUSIVE: This servo is developed and manufactured by Pro-Tronik.

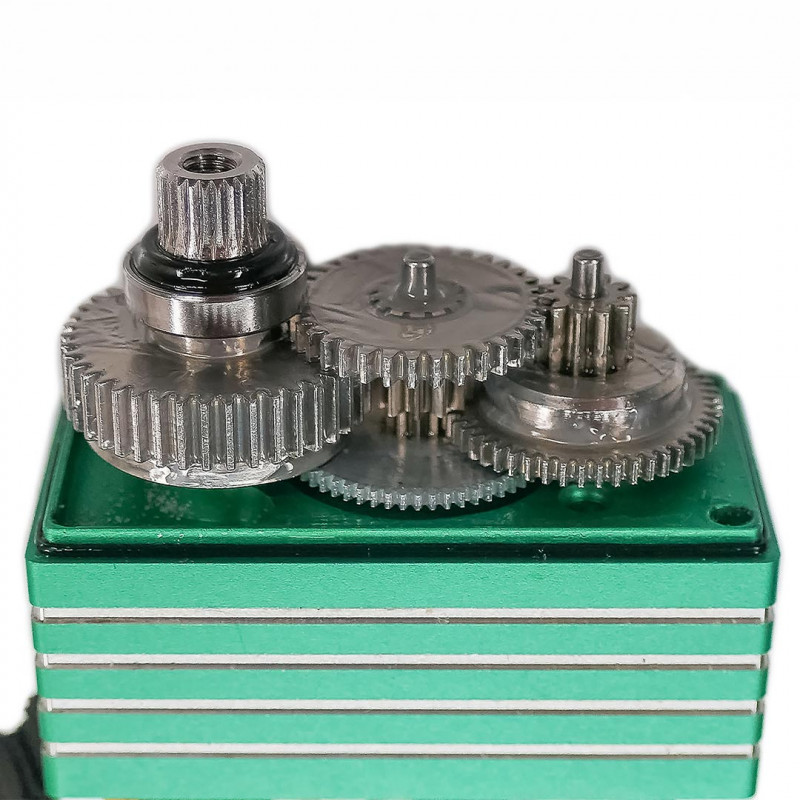

• Gears: Stainless steel
• Bearing: YES 2
• Motor: Brushless
• Weight: 76 grs
• Dimensions: 40.5 x 38.3 x 20mm
• Torque / Speed at 5V: 24kg/cm - 0.124 sec/60°
• Torque / Speed at 7.4V: 30kg/cm - 0.084 sec/60°
• Torque / Speed at 8.4V: 36kg/cm - 0.074 sec/60°
• Operating voltage: between 5V and 8.4V
• Cable length: 300mm
• Connector: Universal JR
• Dead band: 2µs (Adjustable)
• Electrical precision: 1.2µs (Adjustable)
