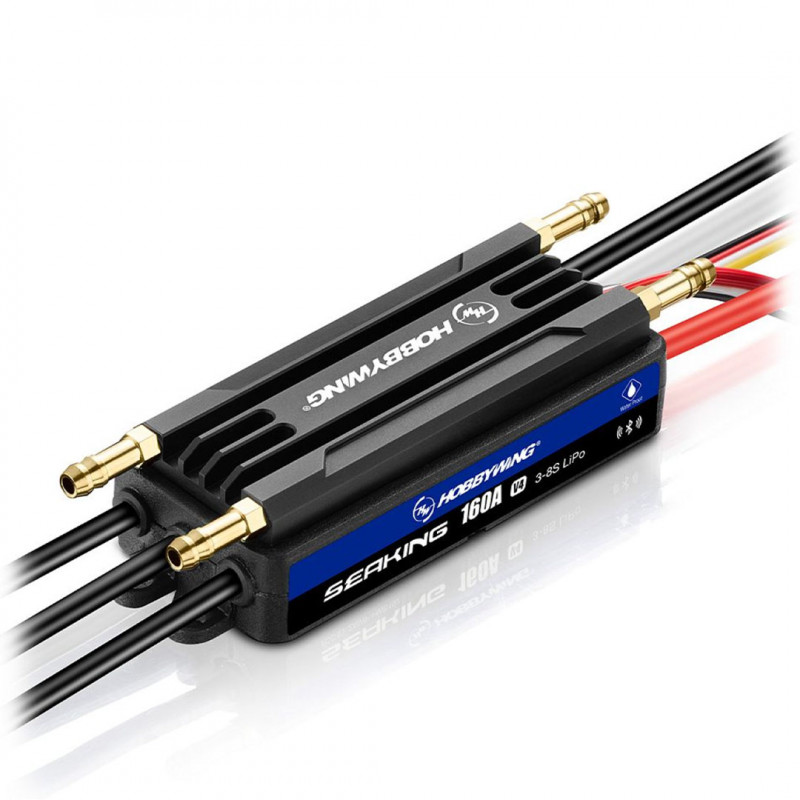

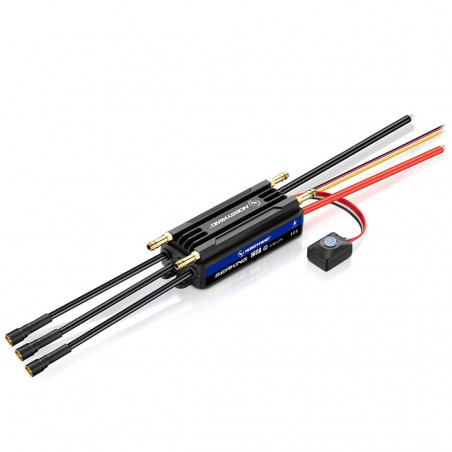

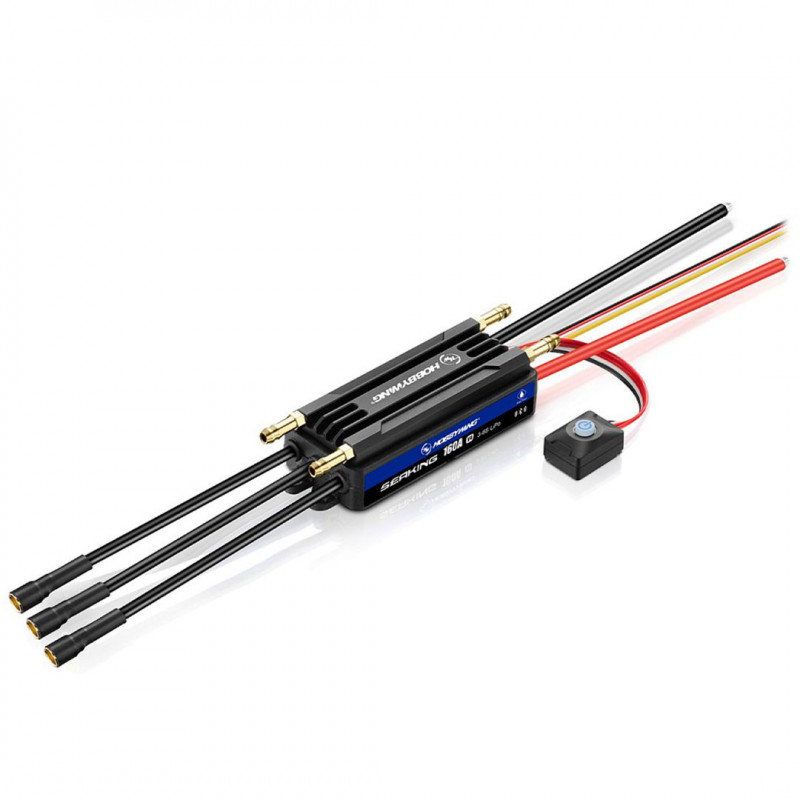

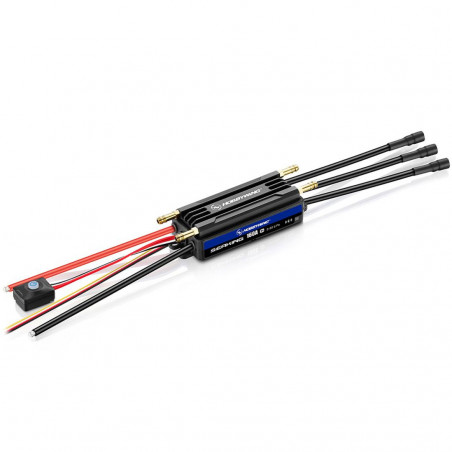

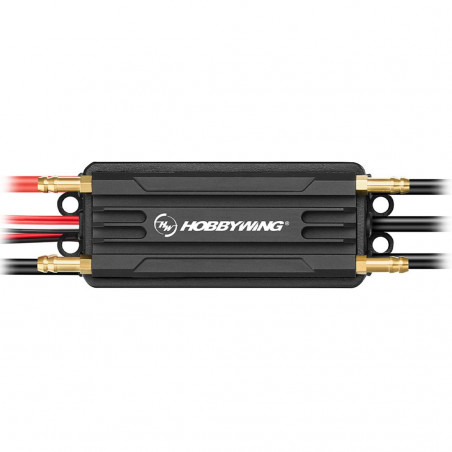

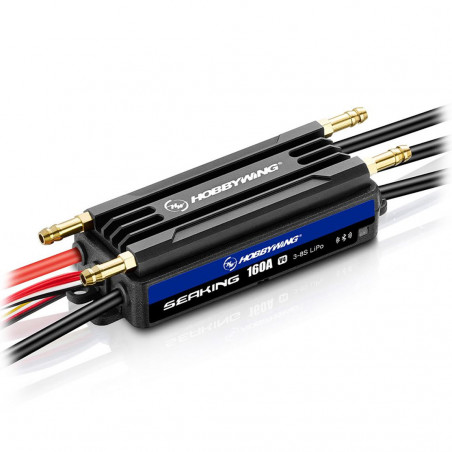

Electric motor Brushless ESC SEAKING 160A V4 3–8S LiPo

Brushless ESC Seaking V4 Series

The Seaking V4 ESC series has been specially designed for use in radio-controlled boats.

With a design up to 25% slimmer than the V3 series and further-optimized hardware, these ESCs deliver maximum power and improved efficiency.

They also stand out thanks to enhanced software, great user-friendliness, and numerous safety mechanisms that simplify operation.
The integrated Freewheeling function ensures lower operating temperatures, more responsive acceleration and better overall handling.

All ESCs are water-cooled and equipped with large-diameter fittings for silicone tubes. The Seaking series is known for its reliable technology and compact size.

These ESCs are exclusively intended for brushless motors. If water enters the model, there is no risk: the ESCs are fully waterproof.

The entire range also features an effective start-up protection system if the throttle stick is not centered when powering on.

Parameter adjustment is done via the built-in Bluetooth interface and the HW Link app, available on Google Play and the Apple App Store.

Programmable parameters:

• Operating mode (forward only / forward-reverse)

• Reverse power (25% / 50% / 75% / 100%)

• LiPo cell count (Auto / manual selection)

• LiPo cutoff voltage (Auto / 2.6 V / 2.8 V / 3.0 V / 3.1 V / 3.2 V / 3.4 V / 3.6 V)

• BEC voltage

• Motor rotation direction

• Acceleration response

• Freewheeling for faster deceleration and better cornering control

• Braking force at throttle-off

• Timing (10° to 30° in 8 steps)

• AUX function (reverse power / acceleration behavior / braking strength)

Overall, the Seaking V4 series impresses with its customizable programming options and high reliability in real-world conditions.

High-grade, flexible silicone wires highlight the premium quality of these brushless ESCs.

Technical data:
Continuous current: 160 A
Peak current: 800 A
LiPo batteries: 3–8S
BEC output: 6 V / 7.4 V / 8.4 V @ 8 A
Programming: built-in Bluetooth interface
Applications: boats up to 120 cm
Dimensions: 94 × 41 × 25.5 mm
Weight: 220 g
