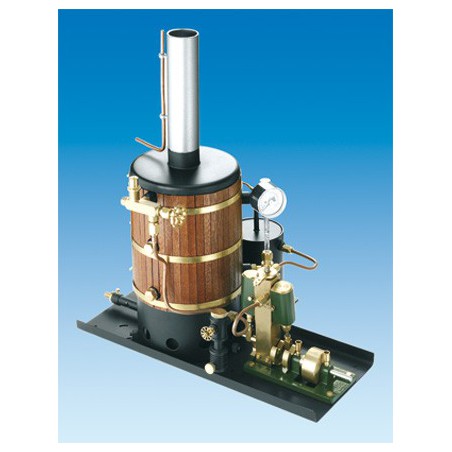

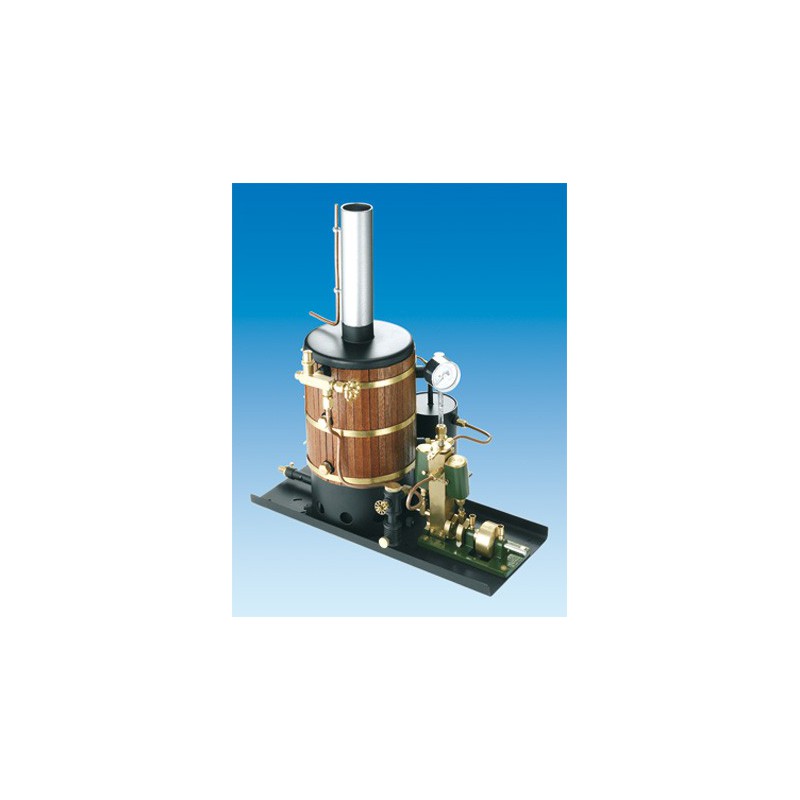

Victor Steam Engine RC Model Boat 15 kg

The Krick Victor steam engine represents the high-end evolution of the oscillating engine series, developed with over 20 years of expertise in model ship steam engines. It stands out for its robust construction, ease of use, and tested durability, with each unit steam-tested prior to delivery.

✅ Key features

• Runs on butane or propane gas
• New boiler design with 8 flue channels
• Modern ceramic burner for higher performance
• Suitable for model boats up to 15 kg
• Perfect for Victoria (20261) and Borkum (20291)
• Delivered pre-assembled and painted
• Only the wooden housing needs installation
• Steam tested before delivery

⚙️ Required accessories (not included)

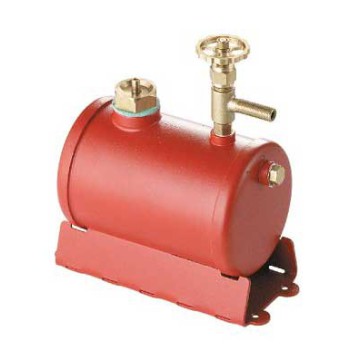

• Gas tank (Ref. 22314)

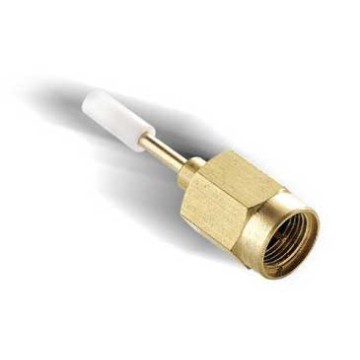

• Gas filling adapter (Ref. 22316)

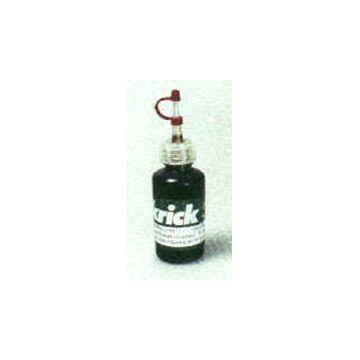

• Steam oil (Ref. 60100)

👉 For smaller boats, the Steam Engine ALEX (Ref. 22300) is available.

📊 Technical specifications

• Bore: 10 mm
• Stroke: 14 mm
• Base plate length: 225 mm
• Total width: 95 mm
• Boiler Ø: 87 mm
• Boiler height: 150 mm
• Total height: 265 mm
• Weight: 1940 g
• Shaft Ø: 4 mm
• Shaft height: 12 mm
