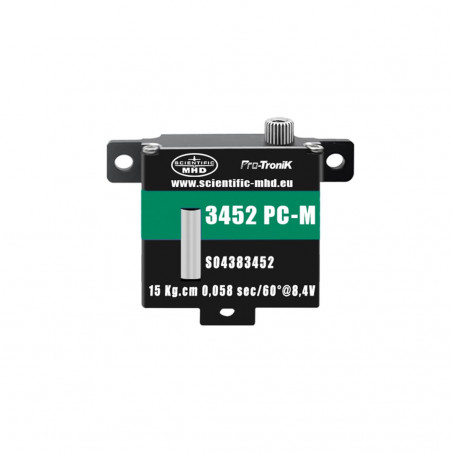

Mini Slim Servo Digital HV 3452 PC-M Protronik

PTK Mini Servo Digital 3452 PC-M radio control servo

In the same category as the KST X10 mini

High-end servo in extra-flat format, aluminum housing, powerful, very fast, weighing just 23.5g, perfectly suited to glider wings.

Metal gears mounted on bearings for maximum precision and robustness.

Programmable digital: easy programming using the new USB PROG V2 interface (S043799V2) sold separately.

Compatible with power supplies up to 8.4V, the HV for everyone!

Exclusive: This servo is developed and manufactured by ProTronik

• Motor: Coreless
• Gears: Metal
• Bearings: 2
• Dimensions: 30 x 10 x 29.6mm
• Weight : 23,5g
• Speed/Torque @ 5V: 10kg/cm - 0.091s/60° Speed/Torque @ 6V: 12kg/cm - 0.075s/60
• Speed/Torque @ 6V: 12kg/cm - 0.075s/60° Speed/Torque @ 6V: 12kg/cm - 0.075s/60° Speed/Torque @ 7.4
• Speed / Torque @ 7,4V : 13,5kg/cm - 0,063s/60°
• Speed/Torque @ 8.4V: 15kg/cm - 0.058/60° Operating voltage
• Operating voltage: between 5 and 8.4V
• Cord length: 220mm
• Plug: JR universal
• Dead band: 2μs (programmable)
