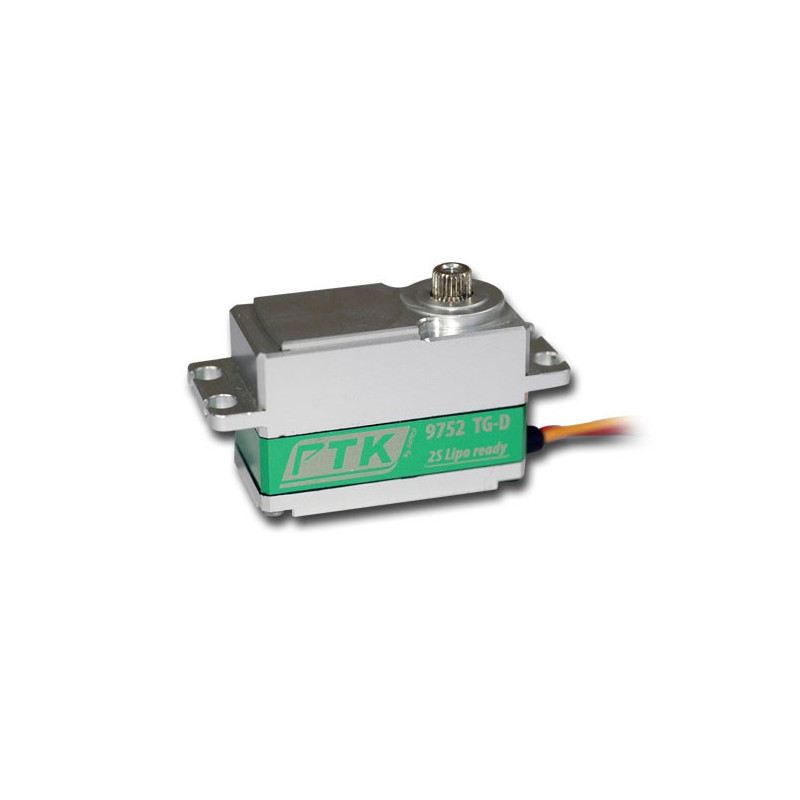

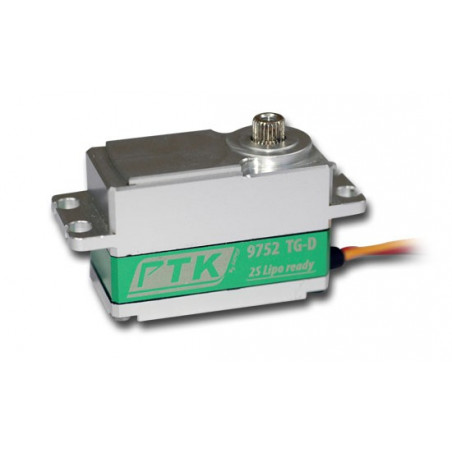

Servo Low Profile Digital Coreless 9752 TG-D Protronik

Pro Tronik Digital Coreless Low Profile Servo 9752 TG-D.Servo High-end Low Profile, Aluminum case, powerful, fast, waterproof, perfectly suited for 1/8 cars or any other application requiring a quality servo.Speed, torque, precision!CNC machined Coreless motor

Digital

Waterproof

Programmable: Pro-Tronik programming card (ref. S04379999)

"2S Lipo Ready": optimized performance whether under 4.8V, 6V or 7.4V. HV for all!

EXCLUSIVE: This servo is developed and manufactured by Pro-Tronik.Due to their high power, for standard use without HV, these servos require a quality power supply such as LiPo 2S + 6V regulator. The perfect compromise is achieved with the LVR (ref. S03878505) and a 2S 2600mAh receiver LiPo pack (ref. Z03L92605)

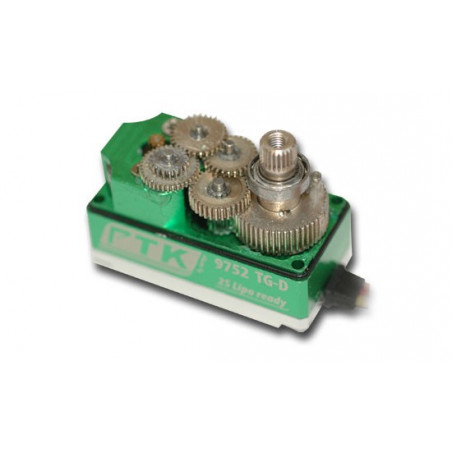

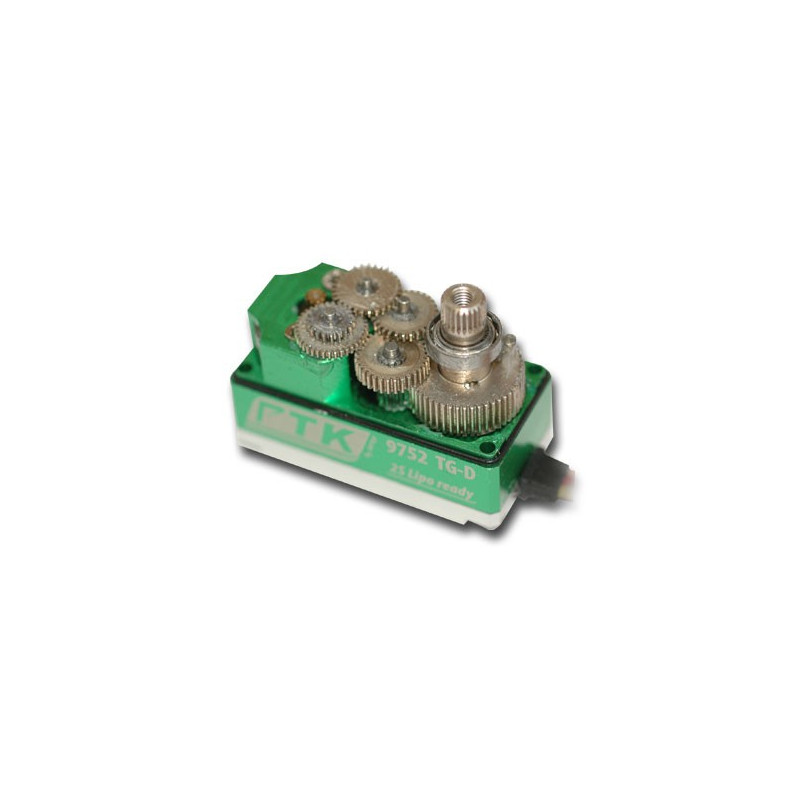

• Gears: Titanium
• Bearing: YES 2
• Motor: Coreless
• Weight: 60.2 gr
• Dimensions: 40.6 x 27.8 x 20mm
• Torque / Speed under 4.8V: 13kg/cm - 0.14 sec/60°
• Torque / Speed under 6.0V: 18kg/cm - 0.12 sec/60°
• Torque / Speed under 7.4V: 23kg/cm - 0.10 sec/60°
• Operating Voltage: 4.8V - 8.4V
• Cord Length: 250mm
• Connector: Universal JR
• Dead Band: 2µs (Adjustable)
• Electrical Precision: 1.2µs (Adjustable)
