Mini Slim Servo Digital HV 4552 PC-M Protronik

Mini Servo Digital HV 4552 PC-M radio control servo Protronik

The most powerful of our digital micro-servos, designed for glider wings and other applications requiring a powerful servo in a very small package.

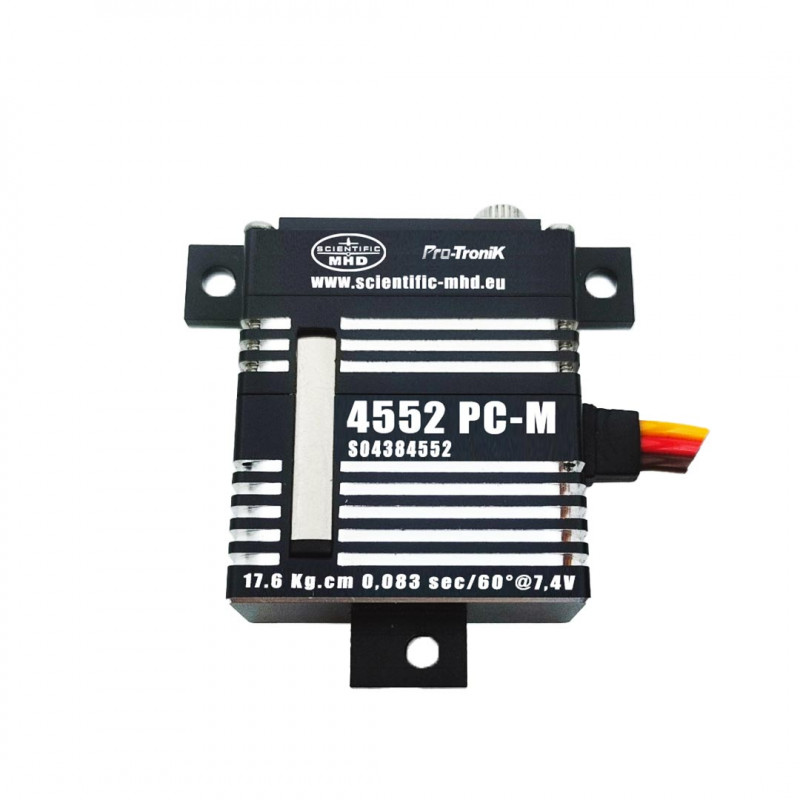

High-end servo in extra-flat format, aluminum housing, powerful, very fast, weighing just 30g, perfectly suited to glider wings.

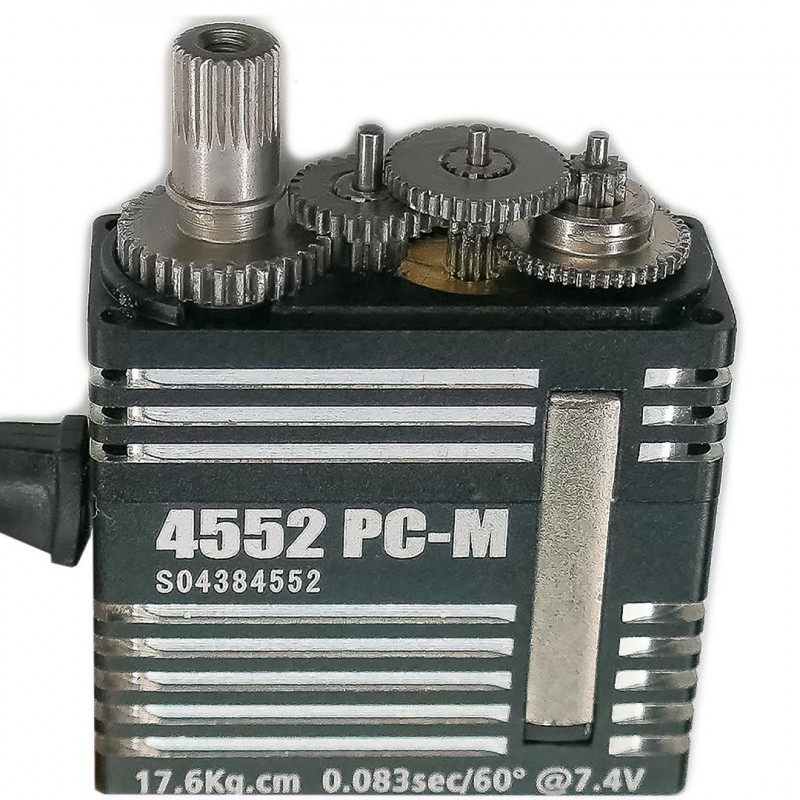

Stainless steel gears mounted on bearings for maximum precision and robustness.

Programmable digital: easy programming using the new PROG V2 USB interface (S043799V2), sold separately.

Compatible with power supplies up to 8.4V, the HV for everyone!

Exclusive: This servo is developed and manufactured by ProTronik

• Motor: Coreless

• Sprockets : Stainless steel

• Bearings: 2

• Dimensions: 30 x 12 x 35mm

• Weight: 33.5g

• Speed/Torque @ 5V : 13kg/cm - 0,148s/60°

• Speed/Torque @ 6V: 18.5kg/cm - 0.126s/60°

• Speed / Torque @ 7,4V : 20,1kg/cm - 0,077s/60°

• Speed/Torque @ 8.4V: 23kg/cm - 0.065/60°

• Operating voltage: between 5 and 8.4V

• Cord length: 220mm

• Plug: JR universal

• Dead band: 2μs
