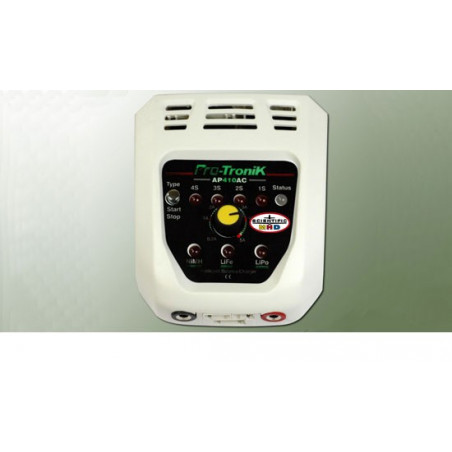

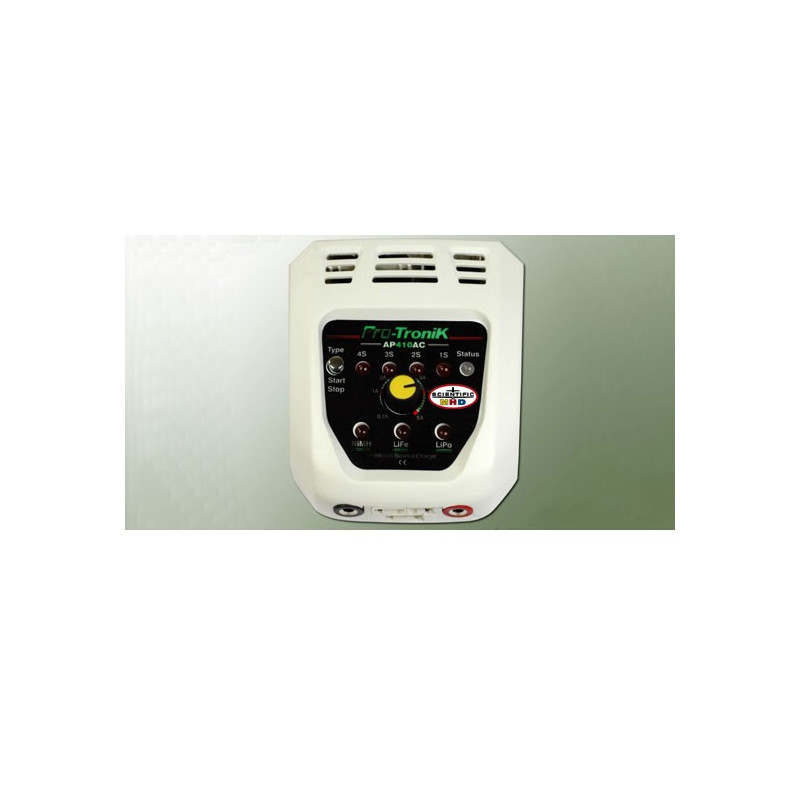

Pro-Tronik AP410AC Multifunction Charger

The Pro-Tronik AP410AC is a multifunction mains charger designed to meet the common needs of modelers.

Its main advantage is its versatility. You can use it with multiple battery technologies used in radio control and modeling: NiCd, NiMH, LiPo, and LiFe.

With a maximum power of 50 W and an adjustable charging current from 0.25 to 5 A, it can handle both small packs and batteries with larger capacities.

Its built-in power supply accepts a mains voltage of 110 to 240 V AC. Therefore, you do not need an external power supply to use it.

A Single Charger for Multiple Battery Technologies

The AP410AC is particularly useful if your workshop uses different generations or technologies of batteries.

It accepts:

This compatibility allows for charging batteries used in transmitters, receivers, cars, planes, helicopters, and other radio-controlled models.

Therefore, you can keep a single charger for multiple types of packs, rather than having to use multiple devices based on the battery technology.

Charging Power up to 50 W

The Pro-Tronik AP410AC delivers up to 50 W.

Its charging current is adjustable from 0.25 to 5 A, allowing you to adapt the charge to the battery used and its characteristics.

The choice of current should always comply with the battery manufacturer's recommendations. A battery should not be charged with a current higher than what it can accept.

This adjustable range makes the AP410AC versatile enough for common modeling uses, from small batteries to higher capacity packs within its power limits.

Integrated Balancer for LiPo and LiFe Batteries

The charger has a built-in balancer for compatible lithium batteries.

This function is particularly important for multi-cell LiPo and LiFe packs.

During charging, the balancer monitors the different cells of the pack to maintain a correctly distributed voltage between the cells.

The balancing current is rated up to 500 mA.

Having this function integrated into the charger eliminates the need for a separate balancer for compatible batteries.

For modelers who regularly use LiPo or LiFe batteries, this is a significant daily advantage.

Attention: No Charging for 1S LiPo

One point requires special attention before using the AP410AC.

This charger does not support charging 1S LiPo batteries.

An indication on some versions of the documentation or the casing may be misleading.

The position corresponding to the first cell relates to the detection and management of the first cell of a multi-cell lithium pack.

It does not mean that the charger accepts a single-cell LiPo battery.

For lithium batteries, you must adhere to the compatible range of 2 to 4 cells.

This clarification is important for choosing the right charger based on your battery collection.

Adapters for Various Connectors

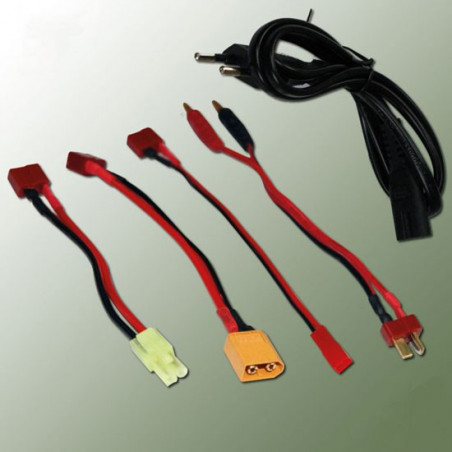

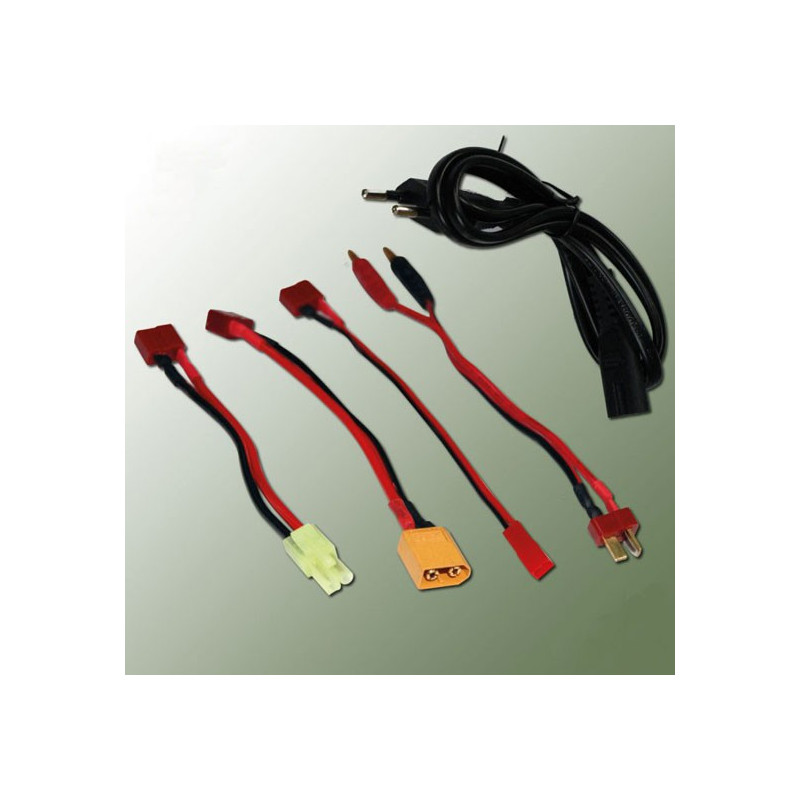

The AP410AC comes with several accessories to connect different types of batteries.

Depending on the provided configuration, you will have:

• mains cord;
• Super Plug / Dean charging cord;
• Mini-Tamiya adapter;
• XT60 adapter;
• BEC adapter;
• French manual.

This package makes it easy to set up with different models and packs.

Therefore, you can use the same charger with several common modeling connectors without having to immediately purchase multiple specific cords.

A Charger Suitable for Radio Control

The AP410AC charger naturally fits into the workshop of modelers practicing radio control.

The variety of batteries used in modeling can quickly lead to an accumulation of different chargers.

A transmitter may use a NiMH pack, while an electric model operates with a LiPo or LiFe battery. The AP410AC can meet several of these needs with a single device.

It is particularly suitable for applications related to:

• Remote-controlled airplanes;
• Electric RC cars;
• RC helicopters;
• Remote-controlled boats;
• Transmitters and receivers;
• Model electronic equipment.

Its versatility is particularly interesting for modelers who own multiple types of models.

Simple operation for common needs

The AP410AC prioritizes ease of use.

You select the technology corresponding to your battery, choose the appropriate current within the available range, and connect the pack with the appropriate cord.

For lithium batteries, the integrated balancer allows you to manage the charge of compatible packs without adding an external device.

The charger is therefore intended for users looking for a practical solution for the routine maintenance of their batteries, without necessarily needing the advanced functions of a high-end computer charger.

Why choose the Pro-Tronik AP410AC?

I find the AP410AC particularly interesting for a modeler who owns multiple battery technologies.

Its strength is not only its 50 W power. It is especially its ability to combine multiple functions in a compact and easy-to-use device.

You benefit from compatibility with NiCd, NiMH, LiPo, and LiFe, adjustable current from 0.25 to 5 A, an integrated balancer for lithium batteries, and several connector adapters.

It is therefore a practical solution for centralizing the charging of commonly used batteries in remote control.

Technical specifications

A versatile charger for the modeler's workshop

With the Pro-Tronik AP410AC, you have a versatile solution for the main batteries used in modeling.

Its 50 W, adjustable current up to 5 A, compatibility with NiCd, NiMH, LiPo, and LiFe technologies, as well as its integrated balancer, cover many common needs.

The supplied adapters further enhance this versatility and allow it to be used with different connectors.

If you are looking for a charger for remote control batteries capable of handling multiple technologies in one device, the AP410AC is a practical and comprehensive solution.

Just make sure to respect the characteristics of each battery and remember that LiPo 1S batteries are not compatible with this model.
