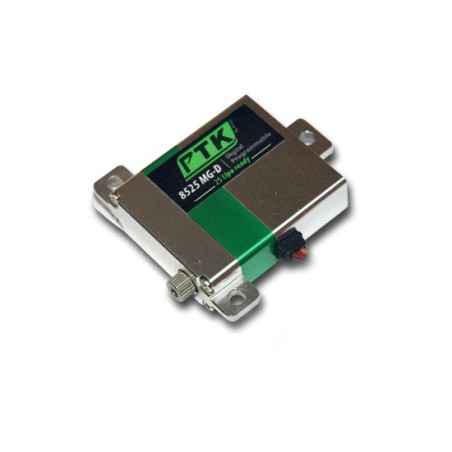

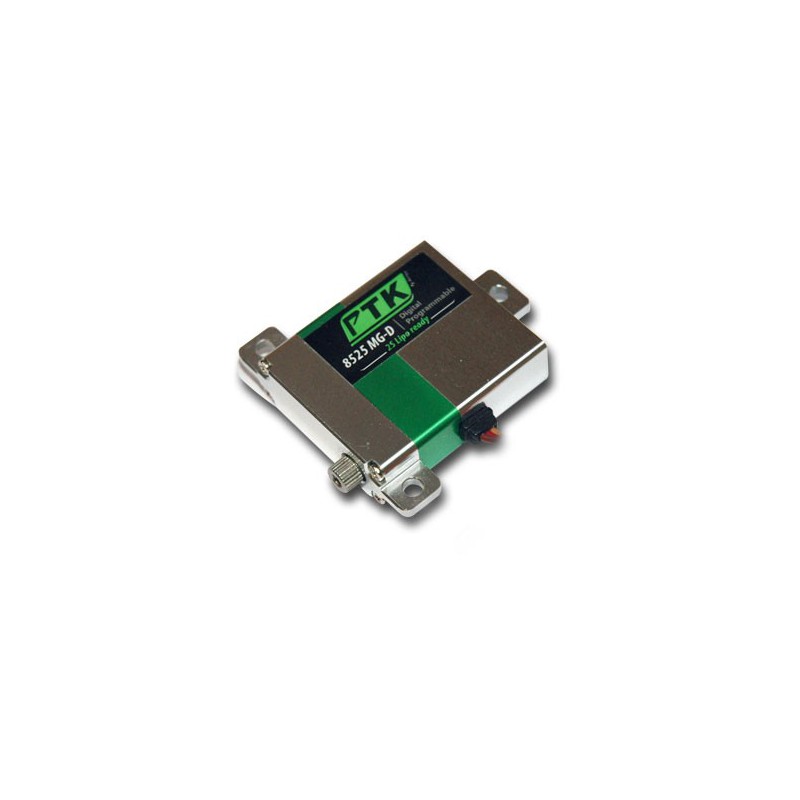

Pro-Tronik Mini Digital Servo 8525 MG-D

NEW VERSION: more torque and works with Lipo 2S

The 8525 MG-D servo integrates particularly well into glider wings due to its low thickness but will also be suitable for all types of control surfaces due to its high torque.Its flawless design will appeal to the most demanding pilots, whether in competition or leisure, this servo will follow you for a long time thanks to its robustness and reliability.Digital

Programmable: Pro-Tronik programming card (ref. S04379999)

"2S Lipo Ready": optimized performance whether under 4.8V, 6V, or 7.4V. HV for all!

EXCLUSIVE: This servo is developed and manufactured by Pro-Tronik.

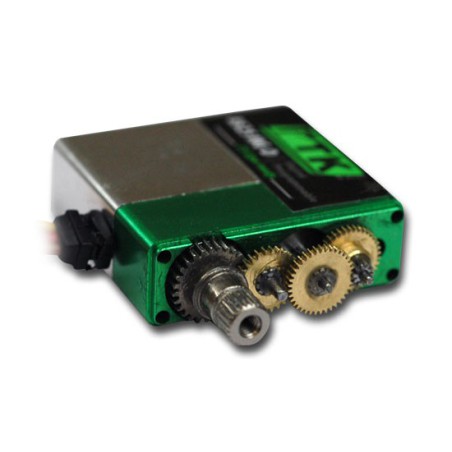

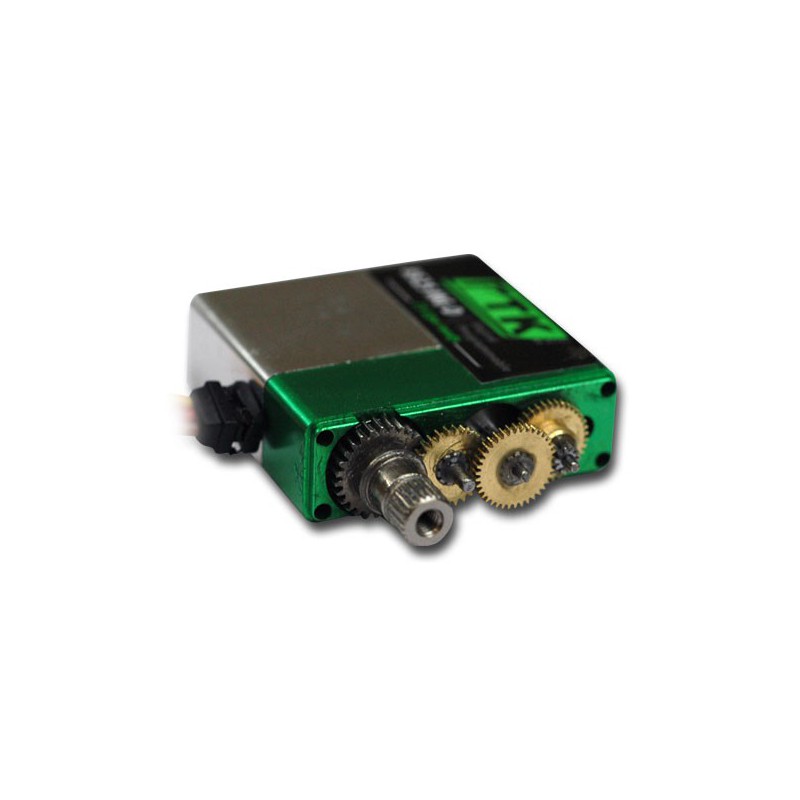

• Gears: METAL
• Bearings: YES 2
• Motor: DC core
• Weight: 28.7g
• Dimensions: 35.9 x 32 x 10 mm
• Torque / Speed under 4.8V: 5.8kg/cm - 0.20sec/60°
• Torque / Speed under 6.0V: 7.6kg/cm - 0.16 sec/60°
• Torque / Speed under 7.4V: 8.8kg/cm - 0.13 sec/60°
• Operating voltage: 4.8V - 8.4V
• Cable: 250mm
• Connector: Universal JR
• Dead band: 1µs (Adjustable)
