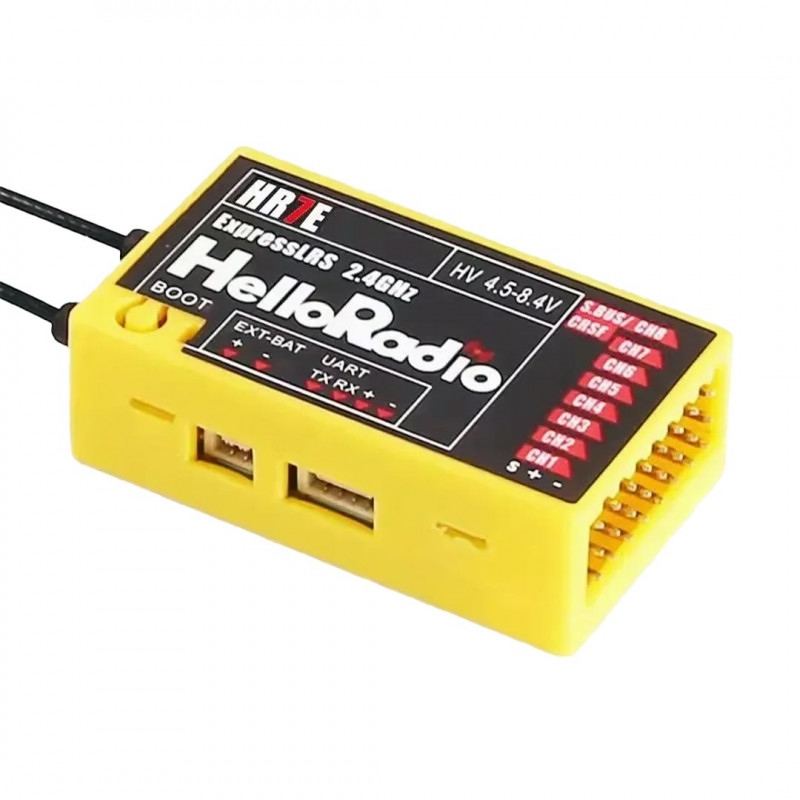

Accessory for HRS radio 8V receiver HR7E ELRS 2.4Ghz Yellow

The HR7E receiver can control up to 8 PWM servos, making it especially suitable for most model aircraft.

HV-compatible, it provides reliable reception through its dual antennas, reducing signal masking risks, and includes a fully configurable failsafe and advanced telemetry: receiver voltage, propulsion battery voltage, link quality, and more. If needed, its CRSF port allows easy connection of additional telemetry sensors.

The receiver can be bound in four different ways, according to pilot preference.

Binding can be automatic using a personal passphrase or performed manually by pressing the button (> V 3.4).

Technical Specifications:

• Frequency band: 2.4 GHz
• Radio protocol: 3.x.x preinstalled (easy to update)
• Number of channels: 8 PWM outputs (50–400 Hz) or 7 PWM + Sbus
• Sbus output: Configurable

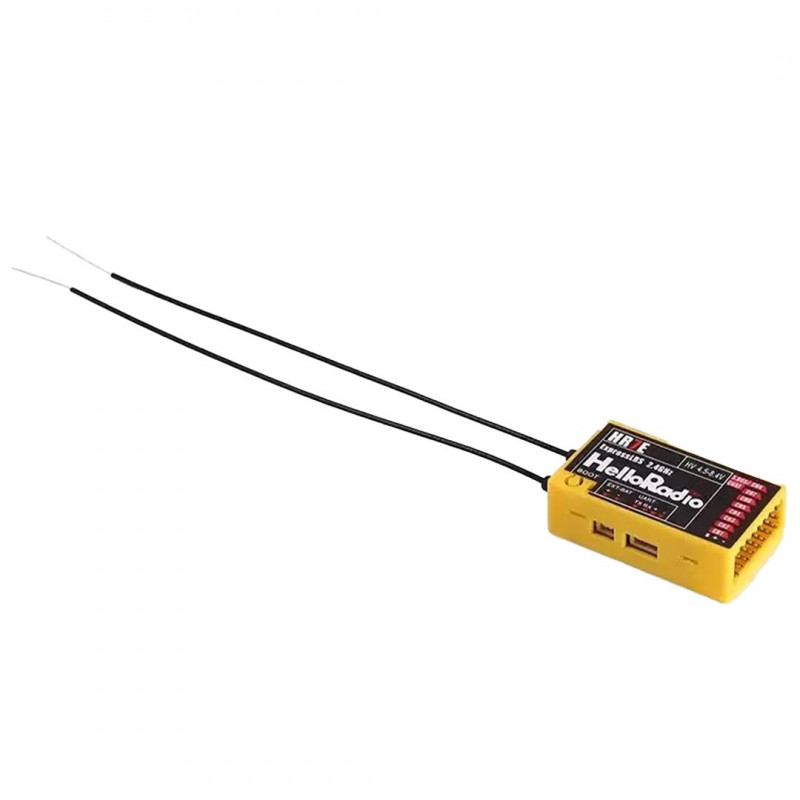

• Reception: Two 18 cm flexible diversity antennas
• Safety: Programmable built-in failsafe
• Telemetry transmission power: Up to 100 mW
• External voltage sensing (drive battery): 4 V to 35 V DC
• Bus interface: CRSF
• Included cables: External voltage and UART
• Communication/configuration interface: Built-in WiFi server (disabled by default)
• Access to optional settings: Via smartphone or computer
• Power supply voltage: 4.5 V to 8.4 V DC, HV compatible
• Weight: Approx. 12 g
• Dimensions: Approx. 48 x 25 x 14 mm

These receivers are perfect for demanding modellers looking to combine reliable reception, maximum range, advanced telemetry, and ExpressLRS compatibility in a compact and lightweight format. An ideal solution for optimising your flights, whether for leisure or competition.

Please note: This receiver complies with European LBT regulation. Use in other countries may require firmware update to FCC mode.
