Accessory for radio Regulator U-BEC 12V 4A

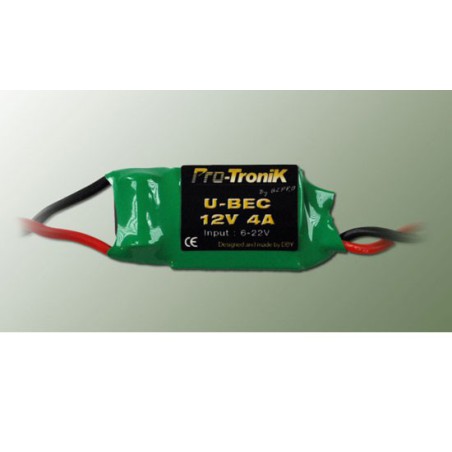

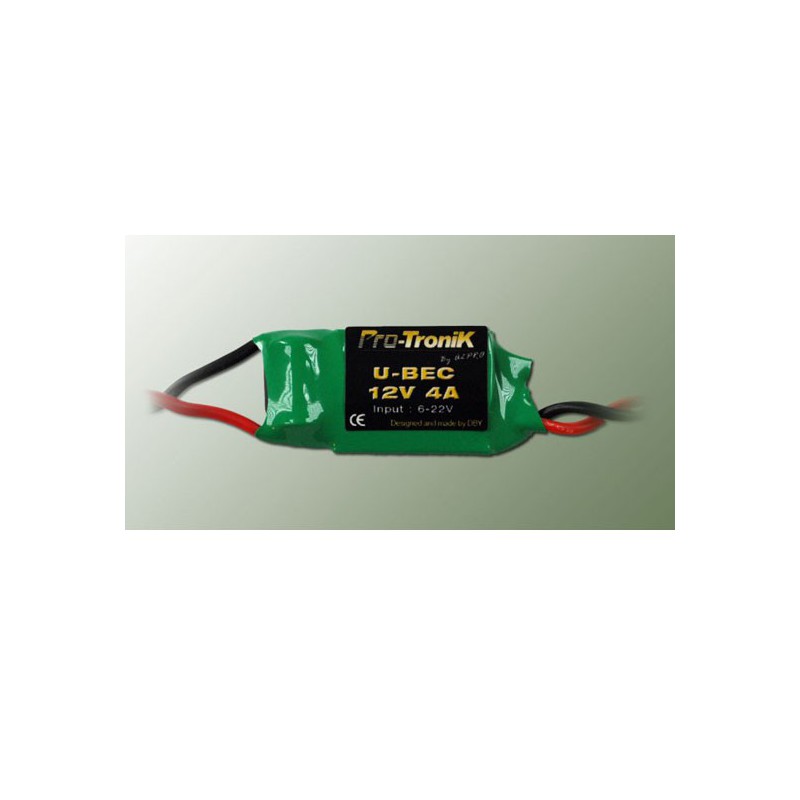

Pro-Tronik U-BEC 12V / 4AVery compact, this highly efficient accessory is the ideal complement to our PROTRONIK accessories.

The 12V U-BEC is a new generation and innovative accessory that efficiently and safely powers onboard accessories requiring a 12V power supply from a 3S to 6S propulsion battery, installed on multirotors (such as gimbals or video transmitters).

• Dimensions: 33 x 18 x 10 mm
• Weight: 15 g
• Input connector: 200 mm silicone wires (0.5mm²)
• Output connector: 200mm standard silicone cord (0.5 mm²)
• Technology used: Switching buck converter IFR
• Input voltage: 14 to 22 V (15 V minimum for 4 A output)
• Battery compatibility: NiCd, NiMH, LiIon, LiPo, and LiFe
• Consumption at: < 0.3 mA (15V)
• Output voltage: 12 V +/- 2 %
• Continuous output current: 4 A (ventilation essential)
• Voltage stability: Better than 1% (between 0 and 4 A)
• Temperature protection: Integrated (by reducing the output voltage)
• Input reverse polarity protection: No
• Output short circuit protection: Yes (Auto Protect)
• Efficiency: > 85% (15 V input, 12 V output at 2.5 A)
