Brushless motor Protronik Power DM2620P Kv1000 133g

Brushless Motor 2620P / Kv 1000 new POWER ProTronik seriesHigh-quality brushless motor, French design.For airplanes up to 3.3kg / motor gliders up to 3.9kgKv 1000 / 133.2 g / 390 W

Efficiency and Performance

The DM2620P-1000 displays a measured efficiency of 82.7%, a high level ensuring excellent energy efficiency.

When tested with LiPo 3S battery configurations, the 10x6 propeller proved to be particularly efficient, allowing to reach nearly 400 W at the beginning of discharge.

This combination offers smooth and consistent thrust, perfectly suited for large or low-profile cells.

Behavior and Ease of Use

Mechanically and dynamically, this Protronik Brushless electric motor is exemplary.

It delivers a very smooth rotation, maintains good flexibility even at low speeds, and stands out for its particularly low noise level.

These qualities contribute to pleasant flying and seamless integration into all types of models, without any parasitic vibrations.

Recommended Applications

Thanks to its characteristics, the DM2620P-1000 is perfectly suited for:

• Radio-controlled airplanes from 2.5 to 3 kg,

• Large electric trainers and sport models,

• Projects requiring a compact motor capable of delivering sustained power.

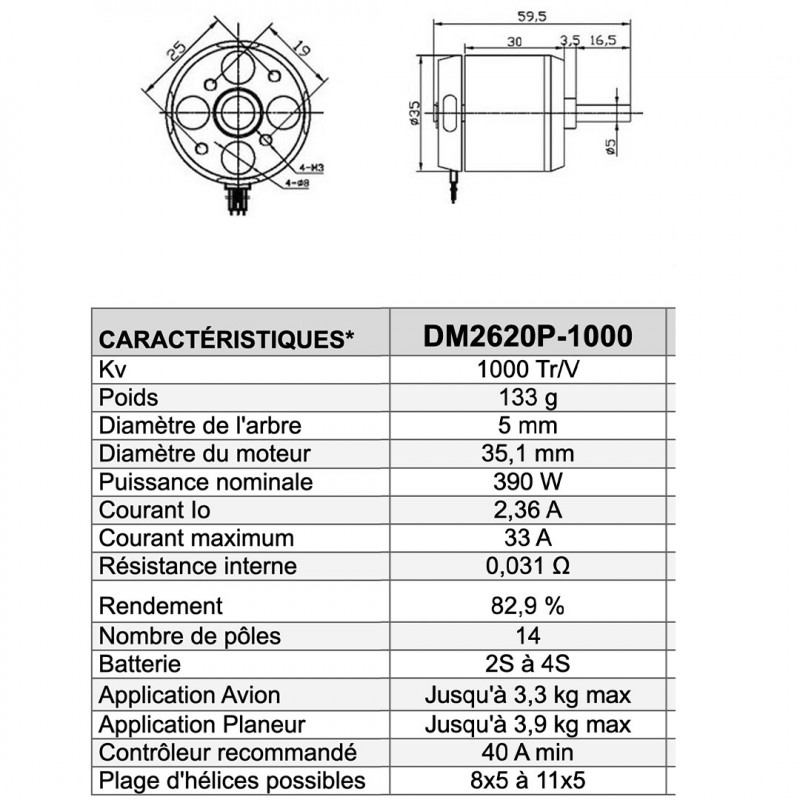

Main features of the Protronik Brushless Motor DM2620P Kv1000:

• KV: 1000 rpm/V

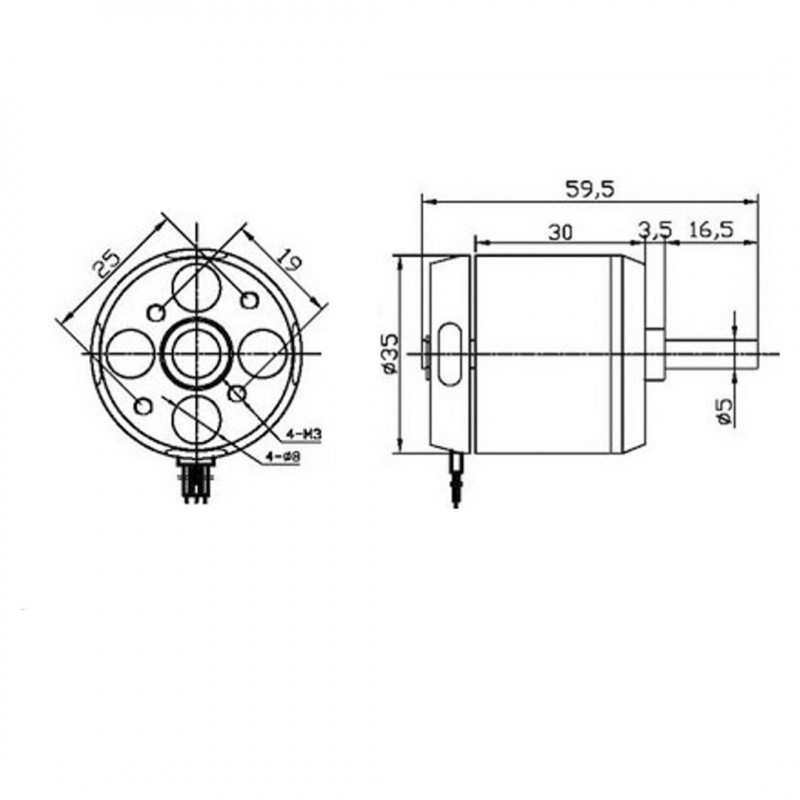

• Outer diameter: 35.1 mm
• Total length: 59.5 mm
• Motor length without shaft: 39.5 mm
• Shaft diameter: 5 mm
• Weight: 133 g
• Rated power: 390W
• Maximum recommended RC airplane weight:
• Airplane up to 3.3 kg
• Glider up to 3.9 kg
• Recommended ESC: 45A
• Recommended propellers: 8x5 to 11x5

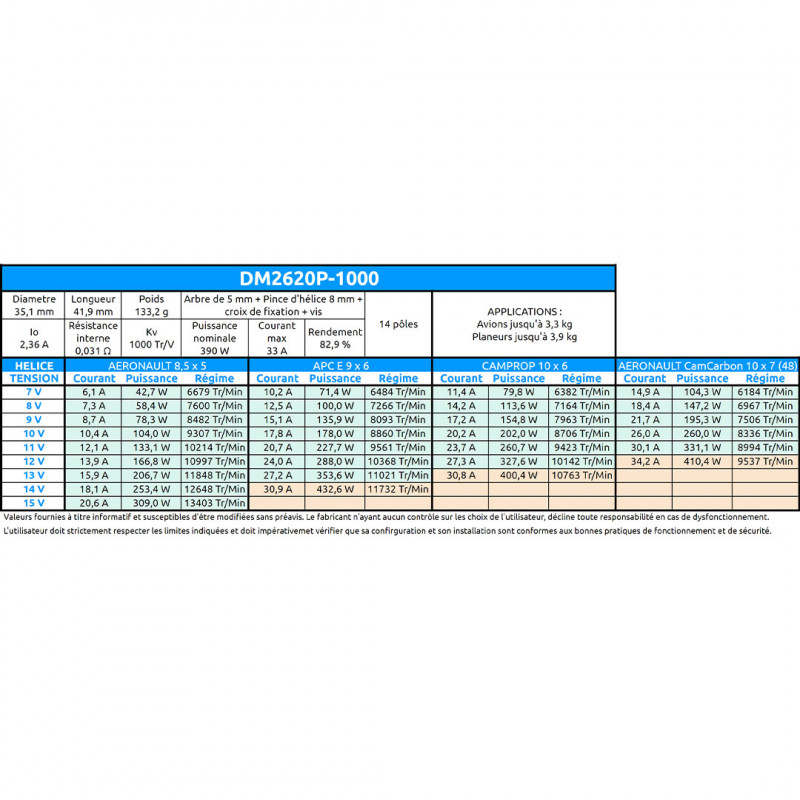

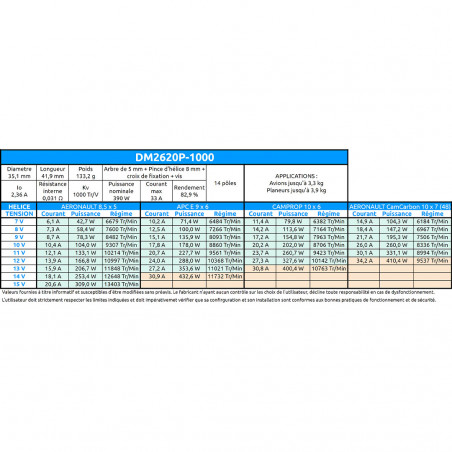

To simplify your choice, Scientific MHD also provides a table technical comparison chart to quickly identify the KV, recommended propeller, permissible power, and compatible aircraft type.

Distributed under the Protronik brand, this model fully reflects the Protronik brand's requirements for performance, efficiency, and reliability in electric model aviation.

Power Protronik Series: Brushless motors designed for modern RC airplanes

Model Analysis Magazine Summary January 2026 / Read the full article

The new Power series from  Protronik marks an interesting evolution in the world of brushless motors for RC aircraft.

Tested in specialized press, this range has been developed around a serious French design, with real work on efficiency, cooling, and mechanical robustness.

Modelers are now looking for brushless motors capable of offering more power, less heat, and better compatibility with modern LiPo batteries. This is exactly the positioning of this new generation of RC motors.

The Power series motors notably use a balanced black bell for better heat dissipation, optimized multi-strand windings, efficient magnets, and a reinforced 5mm shaft. The ability to easily reverse the motor shaft is also a real advantage for pilots wishing to adapt their setup to different types of radio-controlled aircraft.

This series targets both trainer aircraft, RC aerobatic planes, electric warbirds, motorcycle, and some 3D aircraft.

DM2620P-1000: a versatile motor for trainers and aerobatics

With 133g and approximately 390W of power, the DM2620P-1000 clearly moves up a category.

This brushless motor for RC aircraft is aimed at modelers looking to power larger aircraft, especially 3kg trainers, aerobatic planes, or certain electric warbirds.

The article highlights its very good ability to maintain stable performance under load, especially with APC-E 9x6 or 10x6 propellers.

Its efficiency reaches nearly 83%, allowing it to effectively limit heat generation.

Pilots looking for a reliable brushless motor for converting glow RC aircraft to electric will find a serious and robust solution here.
