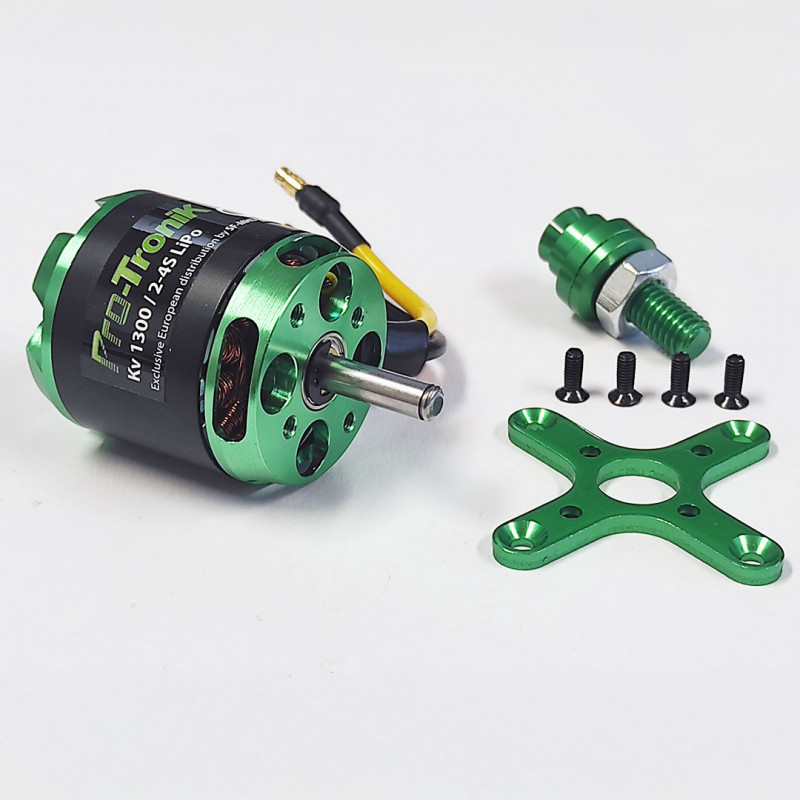

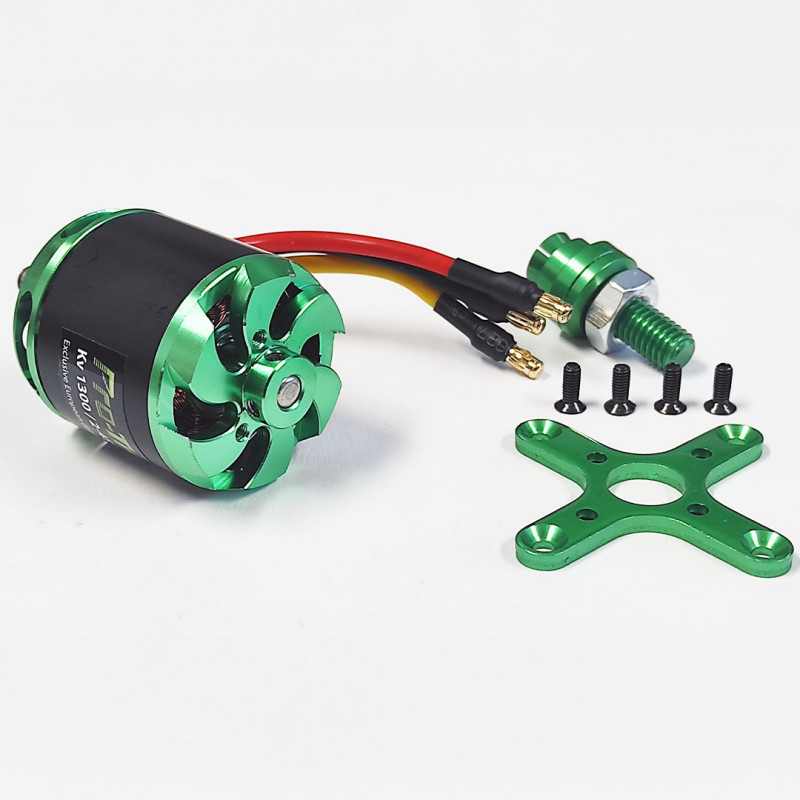

Brushless Protronik Power DM2620P Kv1300 135g Motor

Brushless motor 2620P / Kv 1300 new POWER ProTronik seriesHigh-quality brushless motor, French design.For airplanes up to 3.7kg / motor gliders up to 4.4kgKv 1300 / 135 g / 440 W

Propeller and battery configurations

Under LiPo 3S, using an 8-inch propeller allows the motor to deliver its full power, providing a sharp response and excellent top speed.

It can also operate under LiPo 2S, provided a larger diameter propeller is chosen, an interesting solution to adapt the motorization to specific airframe or regulatory constraints.

Operating behavior

Despite its high power, this Protronik Brushless electric motor maintains controlled heating.

It stands out for immediate responsiveness during rapid speed variations, without parasitic vibrations or abnormal noise.

This mechanical stability ensures optimal flying comfort and smooth integration into demanding models.

Recommended applications

The DM2620P-1300 is particularly suitable for:

• fast radio-controlled airplanes weighing 3 to 4 kg,

• sport or electric performance models,

• configurations requiring a compact, highly efficient, and responsive motor.

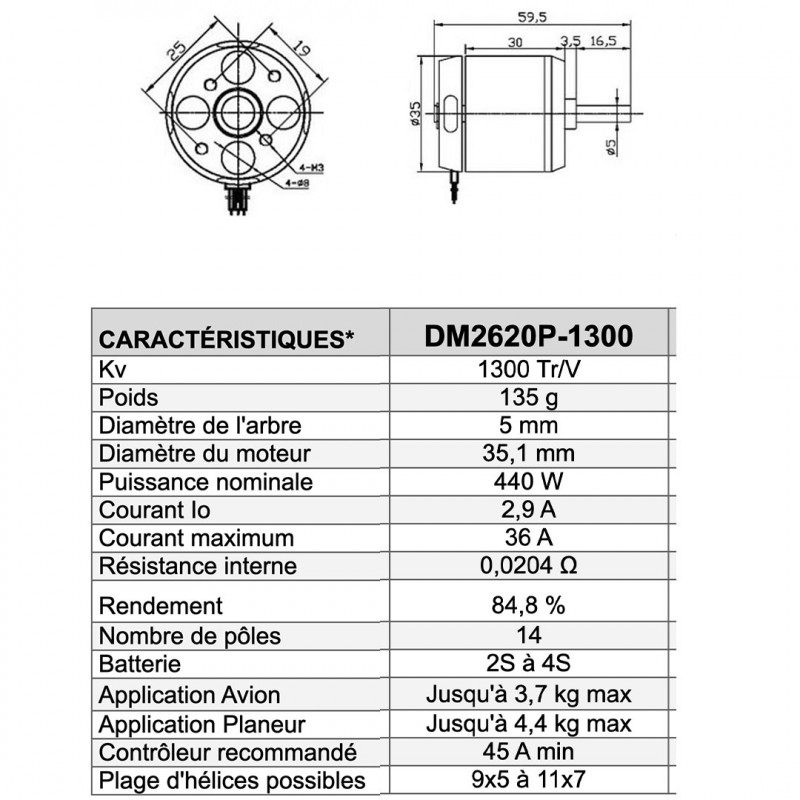

Main features of the Protronik Brushless Motor DM2620P Kv1300:

• KV: 1300 rpm/V

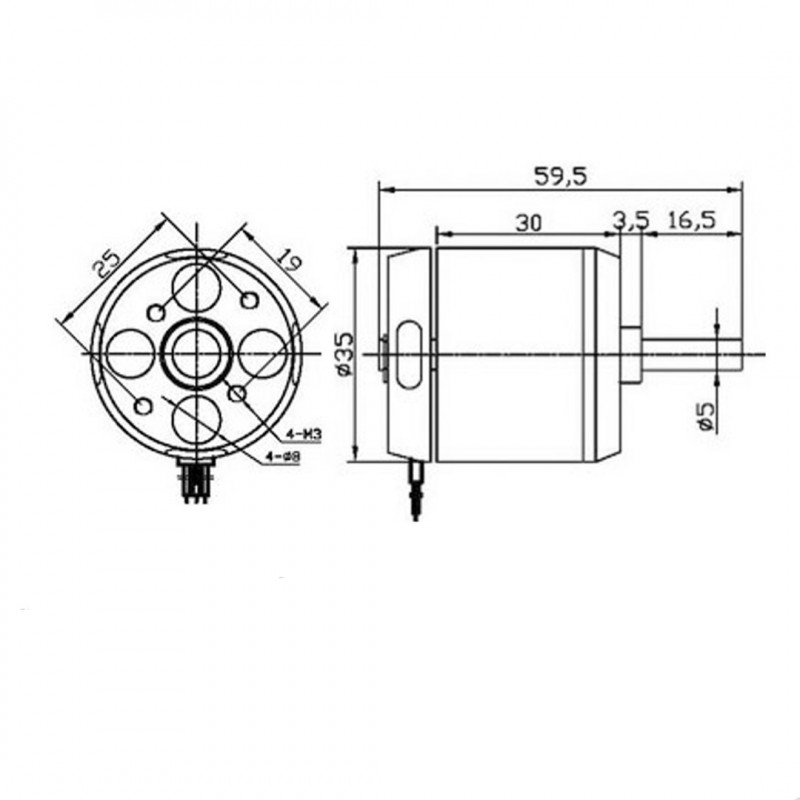

• Outer diameter: 35.1 mm
• Total length: 59.5 mm
• Motor length without shaft: 39.5 mm
• Shaft diameter: 5 mm
• Weight: 135 g
• Rated power: 440 W
• Maximum recommended RC airplane weight: 3 to 4 kg
• Recommended ESC: 45A
• Recommended propellers: 9x5 to 11x7

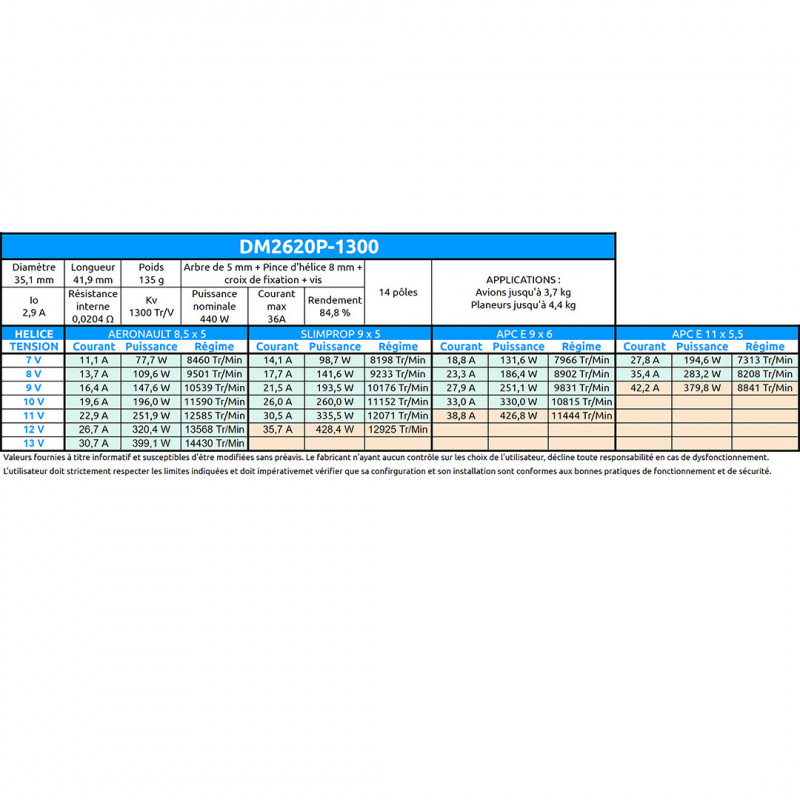

To simplify your choice, Scientific MHD also provides a technical comparison table to quickly identify the recommended Kv, propeller, permissible power, and compatible aircraft type.

Distributed under Protronik, this model perfectly illustrates the expertise of the Protronik brand in developing high-performance, reliable, and optimized brushless motorizations for modern aerial modeling.

Power Protronik Series: Brushless motors designed for modern RC airplanes

Model Analysis Summary Magazine January 2026 / Read the full article

The new Power series from  Protronik marks an interesting evolution in the world of brushless motors for RC planes.

Tested in specialized press, this range has been developed around a serious French design, with real work on efficiency, cooling, and mechanical robustness.

Modelers are now looking for brushless motors capable of offering more power, less heat, and better compatibility with modern LiPo batteries. This is exactly the positioning of this new generation of RC motors.

The Power series motors notably use a balanced black bell for better heat dissipation, optimized multi-strand windings, high-performance magnets, and a reinforced 5mm shaft. The ability to easily reverse the motor shaft is also a real advantage for pilots wishing to adapt their setup to different types of RC planes.

This series targets both trainer planes, RC aerobatic planes, electric warbirds, motorcycle, and some 3D planes.

DM2620P-1300: power and responsiveness for RC aerobatics

The DM2620P-1300 is one of the most powerful motors in this new Power range.

With 440 W announced and a Kv of 1300, it directly targets fast RC planes, agile aerobatic planes, and some powerful 3D models.

During tests, this motor demonstrated excellent responsiveness to speed variations, without vibrations or noise.

The measured efficiency reaches around 85%, confirming the seriousness of its design.

Used with a 3S or 4S LiPo battery and suitable propellers, it allows for very steep climbs and high speeds.

Pilots looking for a high-performance brushless RC motor for aerobatics will appreciate its excellent power-to-weight ratio.
