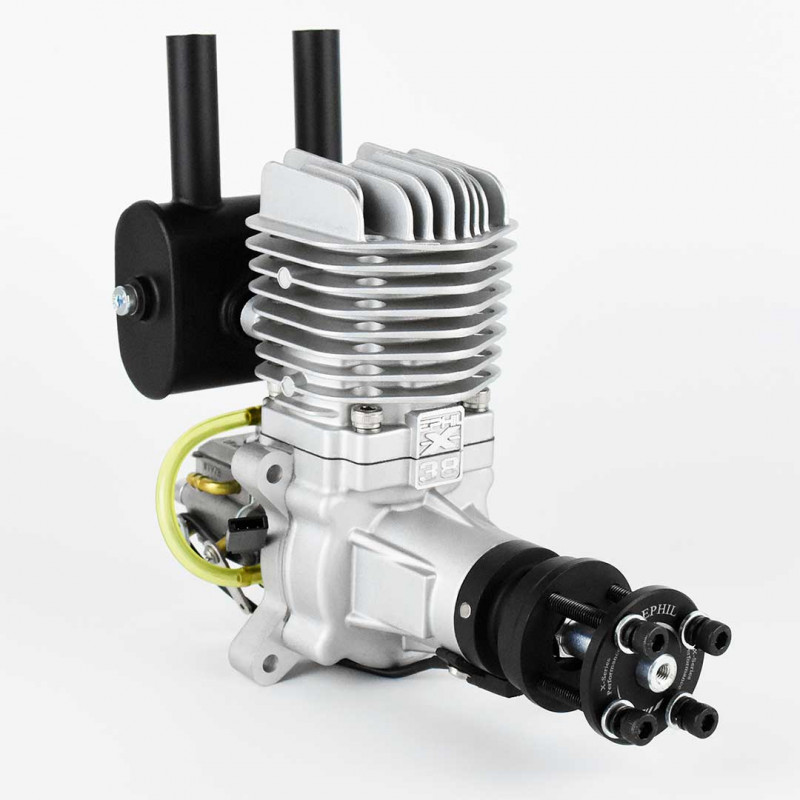

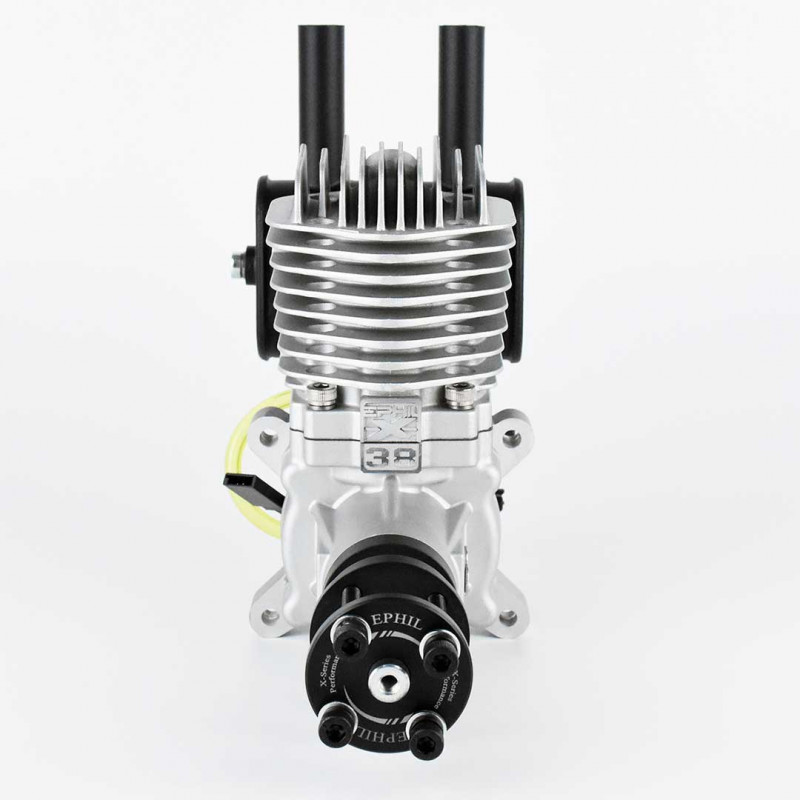

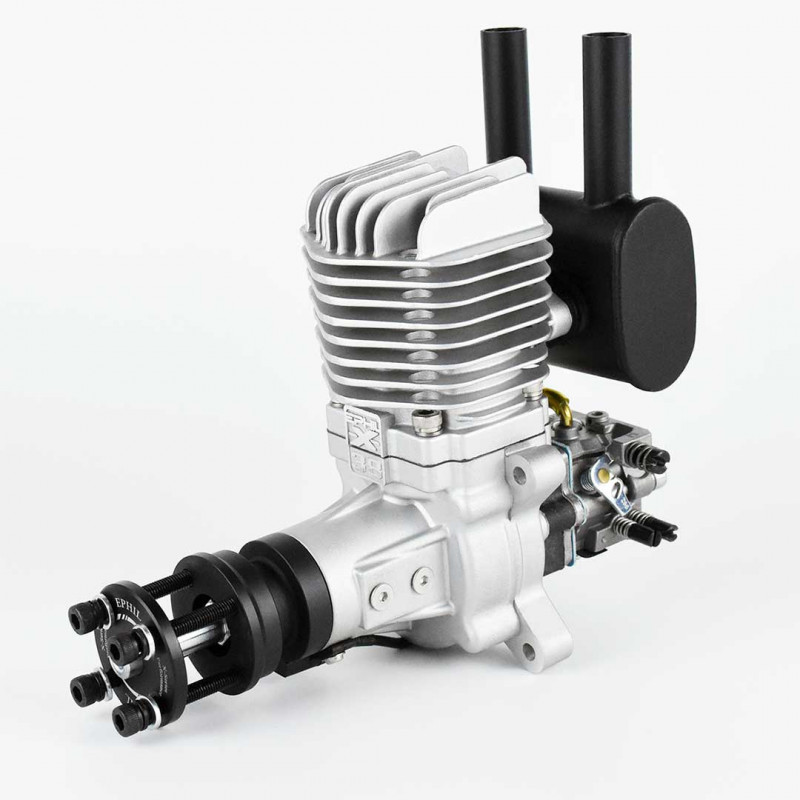

Gasoline Engine for Aircraft EPHIL 38cc Single-cylinder Rear Exhaust

EPHIL 38cc single-cylinder rear exhaust

New range of gasoline engines for radio-controlled aircraft

Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.

The exhaust comes with a fitting for using a smoke system as standard.

Possibility to later install an electric starter by our company (under conditions).

If you wish to have an electric starter on your engine, it is advisable to opt for a PRO series engine when purchasing the engine.

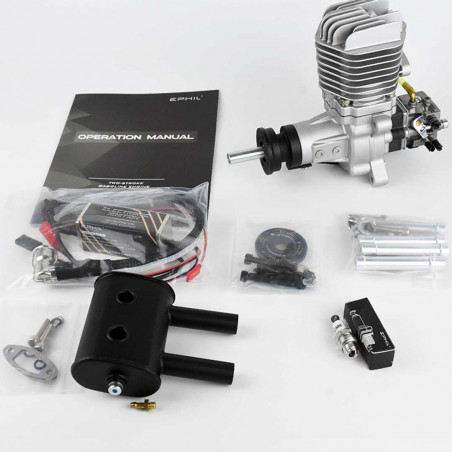

Included in the box:

• An X-38cc-R rear exhaust engine with its Walbro carburetor
• A muffler with gasket and fixing screws
• A CM-6 Iridium spark plug
• An electronic ignition module
• An engine mount (spacers)
• User manual

Technical specifications:

• Displacement: 38cc
• Bore: 39mm
• Stroke: 32.5mm
• Power: 4.2hp
• Operating range: between 1800 and 7300 rpm (propeller 20x9)
• Ignition module supply voltage: between 6 and 14V
• Recommended 2-stroke oil mixture: 3.33%
• Compatible propellers: 19x8 / 19x10 / 20x8 / 20x10
• Engine weight alone: 1040g
• Muffler weight: 73g
• Engine mount weight: 100g
• Ignition module weight: 104g
