RC Airplane Engine Gasoline
S074120S

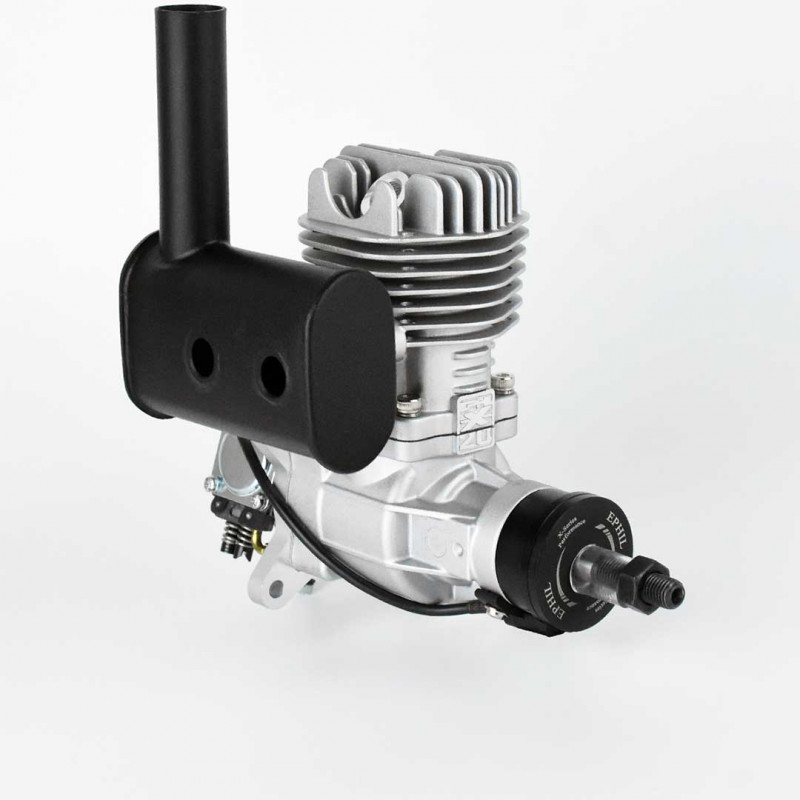

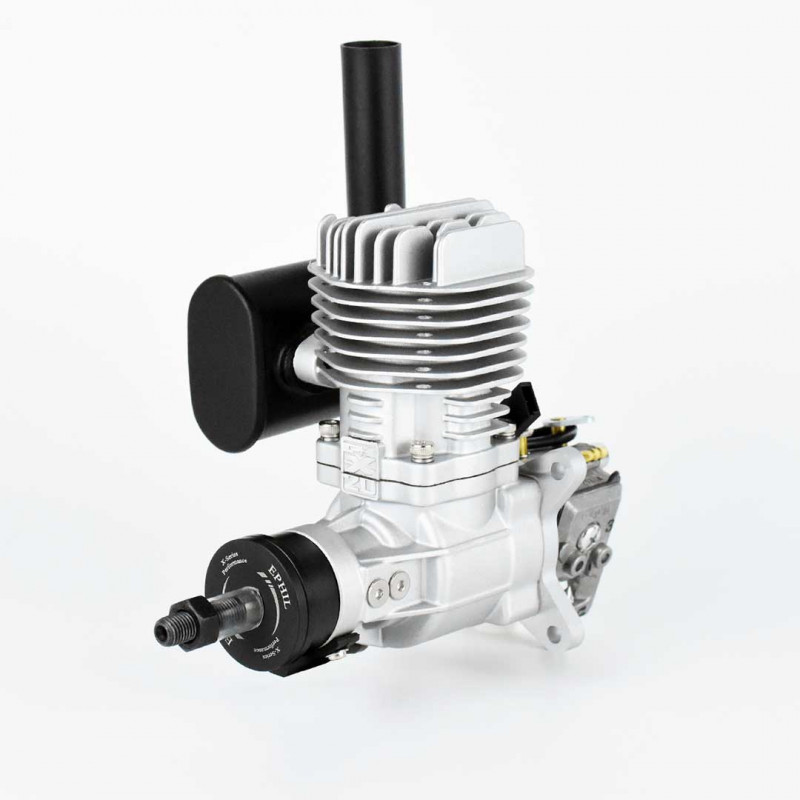

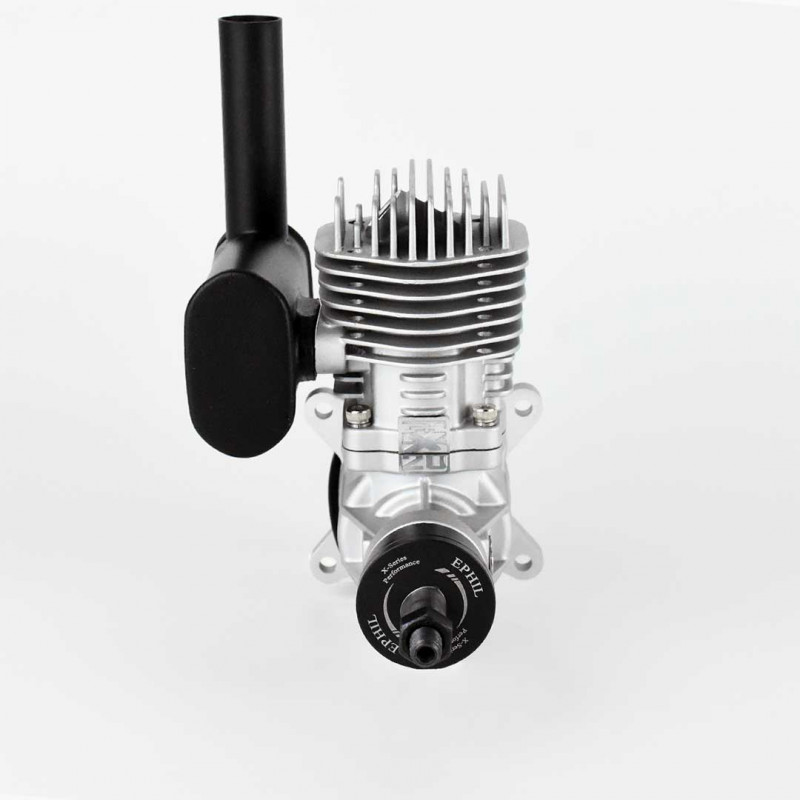

Gasoline Engine for EPHIL 20cc Single-Cylinder Side Exhaust Aircraft Engine
New range of gasoline engines for remote-controlled aircraft, tested and approved by our technical service.
Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.
The exhaust comes with a fitting for the use of a smoke system.

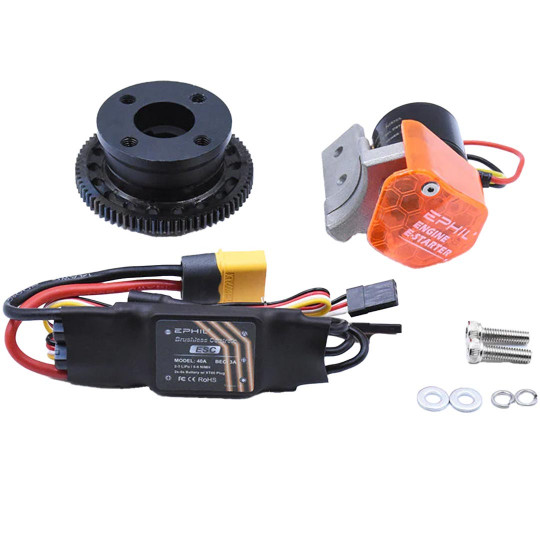

Possibility of later installation of an electric starter by our company (conditions apply).
€269.95
VAT included
Gasoline Engine for EPHIL 20cc Single-Cylinder Side Exhaust Aircraft Engine
Plus de detailsGasoline Engine for EPHIL 20cc Single-Cylinder Side Exhaust Aircraft Engine
€269.95
Ajout dans le panier en cours ...
Onboard accessory 16 x 8 TWO-BLADE CARBON PROPELLER
€38.50 - ref. S074P1608C
Onboard accessory TWO-BLADE WOODEN PROPELLER 14 x 10
€11.95 - ref. S074P1410B
Onboard accessory TWO-BLADE WOODEN PROPELLER 15 x 8
€12.95 - ref. S074P1508B
Articles supplémentaires sélectionnés
Total(tax incl.)
€
Fast shipping
Via Chronopost 24H
Via DPD 24/48H
Colissimo 48/72H
340104 products in stock
Real-time stock displayed
Secure payment
Secure payment
In 3 or 4 installments
4.6/5
★ ★ ★ ★ ★
Specialist since 1955
Fast shipping
Via Chronopost 24H
Via DPD 24/48H
Colissimo 48/72H
340104 products in stock
Real-time stock displayed
Secure payment
Secure payment
In 3 or 4 installments
4.6/5
★ ★ ★ ★ ★
Specialist since 1955
Associated Universe
EPHIL 20cc single-cylinder side exhaust
New range of gasoline engines for radio-controlled aircraft.
Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.
The exhaust comes with a fitting for using a smoke system.
Possibility to install an electric starter without any modification.
If you wish to have an electric starter on your engine, it is preferable to opt for a PRO series engine when purchasing the engine.

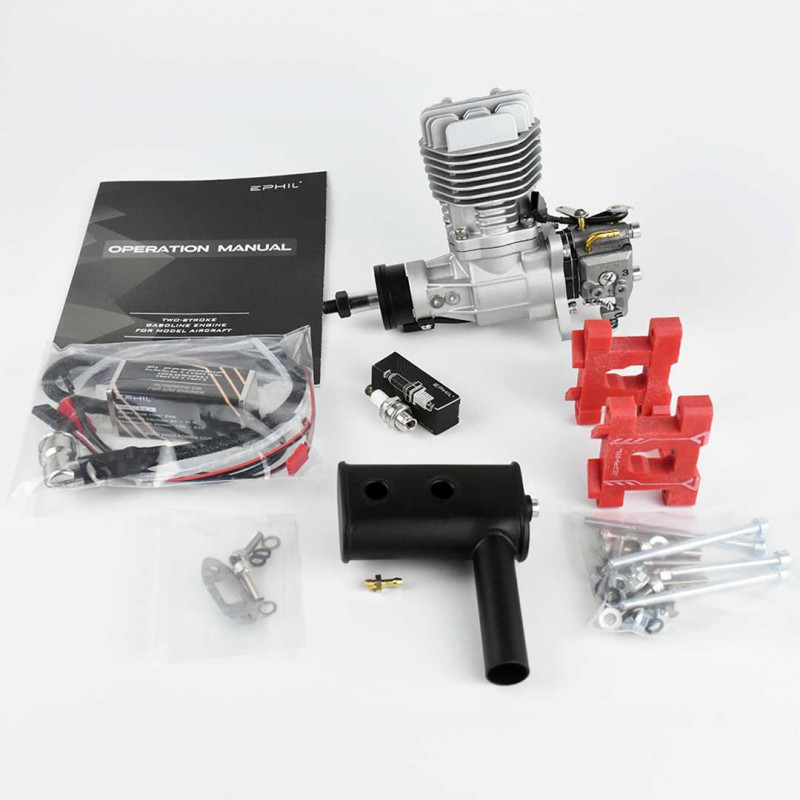

Included in the box:
- An X-20cc-S engine with side exhaust and its Walbro carburetor
- A muffler with gasket and fixing screws
- A CM-6 Iridium spark plug
- An electronic ignition module
- An engine mount
- User manual
Technical specifications:
- Displacement: 20cc
- Bore: 32mm
- Stroke: 27mm
- Power: 2.5hp
- Operating range: between 1800 and 8600 rpm (propeller 16x8)
- Ignition module power supply voltage: between 6 and 14V
- Recommended 2-stroke oil mixture: 3.33%
- Compatible propellers: 14x10 / 15x8 / 16x6 / 16x8 / 17x6
- Engine weight: 697g
- Muffler weight: 62g
- Engine mount weight: 115g
- Ignition module weight: 104g
- Fuels
- Gasoline
- Engines
- Thermal
- Level of use/difficulty
- Thermal
- Product types
- Motors and variators for radio -controlled models
