Gasoline Engine for EPHIL 38cc Single-cylinder Side Exhaust Aircraft Engine

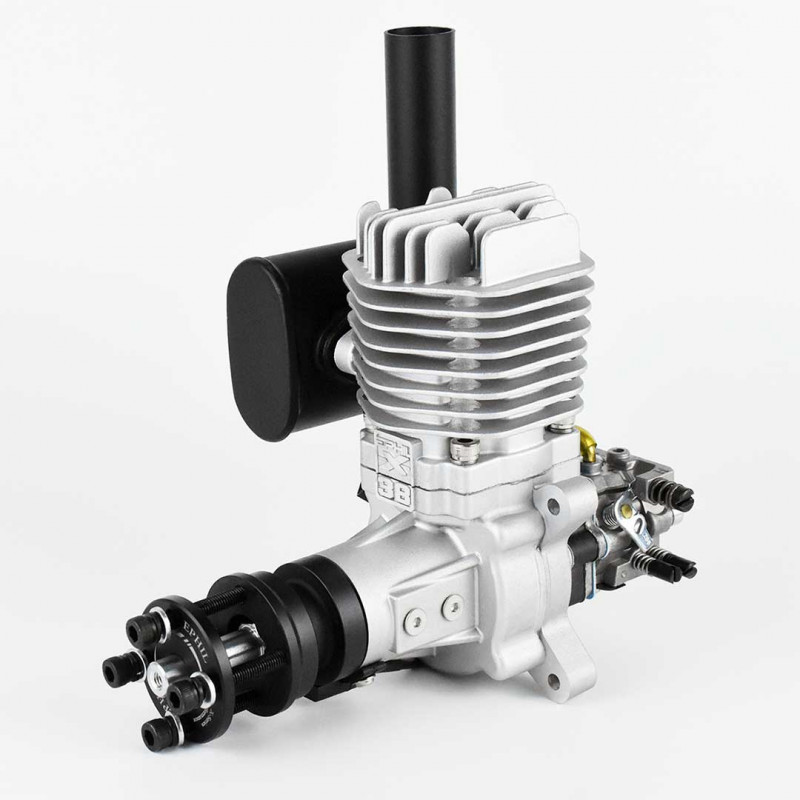

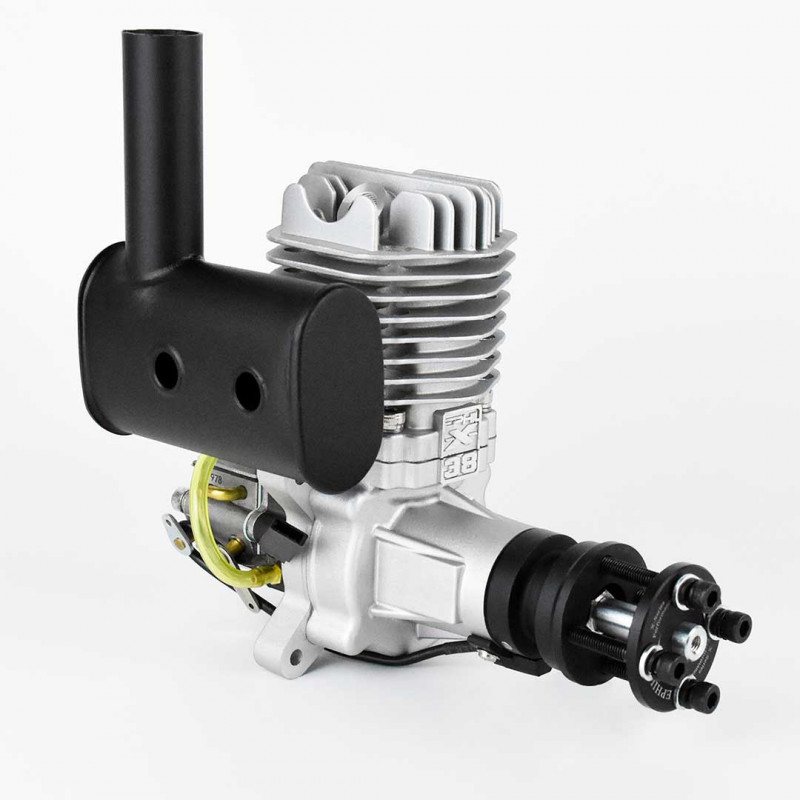

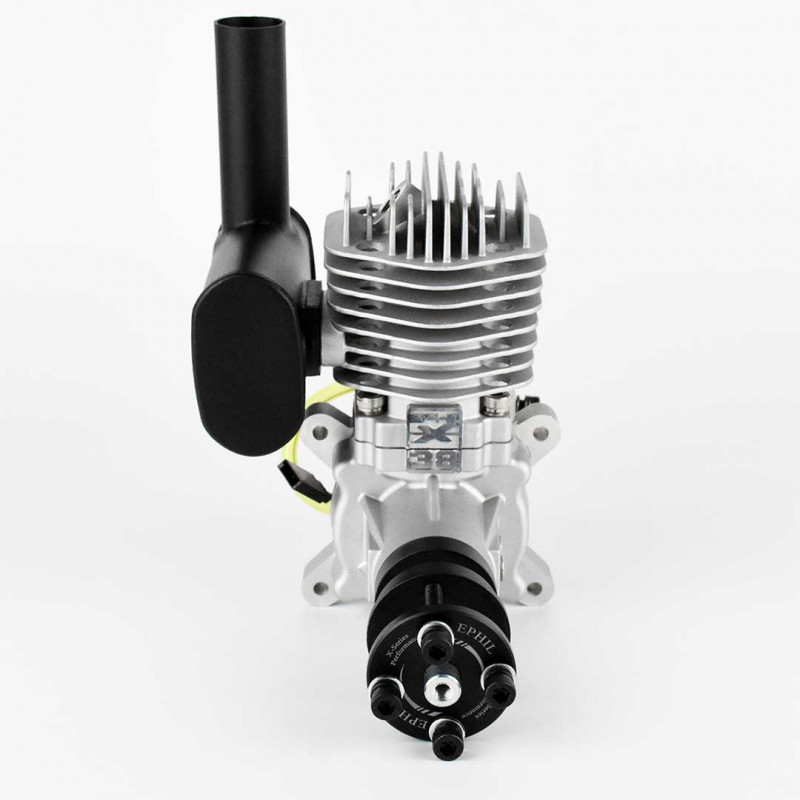

EPHIL 38cc single-cylinder side exhaust

New range of gasoline engines for radio-controlled aircraft

Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.

The exhaust comes with a fitting for using a smoke system.

Possibility to install an electric starter without any modification.

Possibility to later install an electric starter by our company (conditions apply).

If you wish to have an electric starter on your engine, it is preferable to opt for a PRO series engine when purchasing the engine.

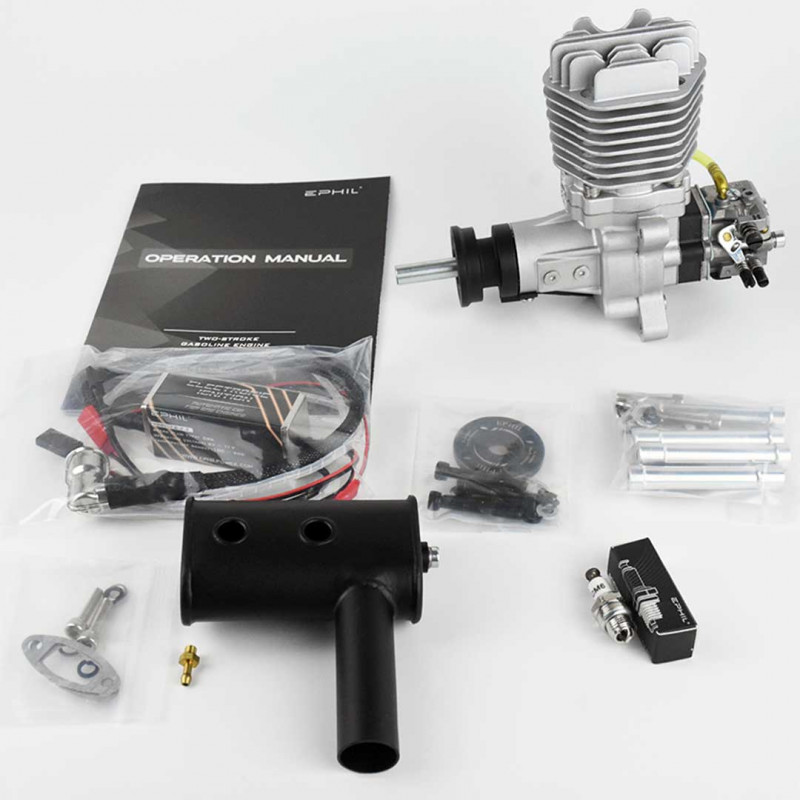

Included in the box:

• An X-38cc-S side exhaust engine with its Walbro carburetor
• A muffler with gasket and fixing screws
• A CM-6 Iridium spark plug
• An electronic ignition module
• Engine mount (spacers)
• User manual

Technical specifications:

• Displacement: 38cc
• Bore: 39mm
• Stroke: 32.5mm
• Power: 4.2hp
• Operating range: between 1800 and 7300 rpm (propeller 20x8)
• Ignition module power supply voltage: between 6 and 14V
• Recommended 2-stroke oil mixture: 3.33%
• Compatible propellers: 19x8 / 19x10 / 20x8 / 20x10
• Engine weight alone: 1010g
• Muffler weight: 73g
• Engine mount weight: 100g
• Ignition module weight: 104g
