Gasoline Engine for EPHIL 60cc Single-cylinder Side Exhaust Aircraft Engine

EPHIL 60cc single-cylinder side exhaust

New range of gasoline engines for radio-controlled aircraft.

Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.

The exhaust comes with a fitting for smoke system use.

Possibility to install an electric starter without any modification.

If you want to have an electric starter on your engine, it is preferable to opt for a PRO series engine when purchasing the engine.

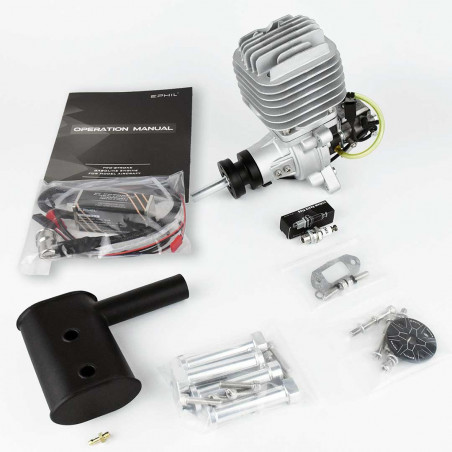

Included in the box:

• An X-60cc-S engine with side exhaust and its Walbro carburetor
• A muffler with gasket and fixing screws
• A CM-6 Iridium spark plug
• An electronic ignition module
• An engine mount
• User manual

Technical specifications:

• Displacement: 60cc
• Bore: 47mm
• Stroke: 35mm
• Power: 6.2hp
• Operating range: between 1800 and 6900 rpm (propeller 24x9)
• Ignition module power supply voltage: between 6 and 14V
• Recommended 2-stroke oil mixture: 3.33%
• Compatible propellers: 22x10 / 23x8 / 23x10 / 24x8 / 24x9
• Engine weight: 1370g
• Muffler weight: 117g
• Engine mount weight (spacers): 115g
• Ignition module weight: 104g
