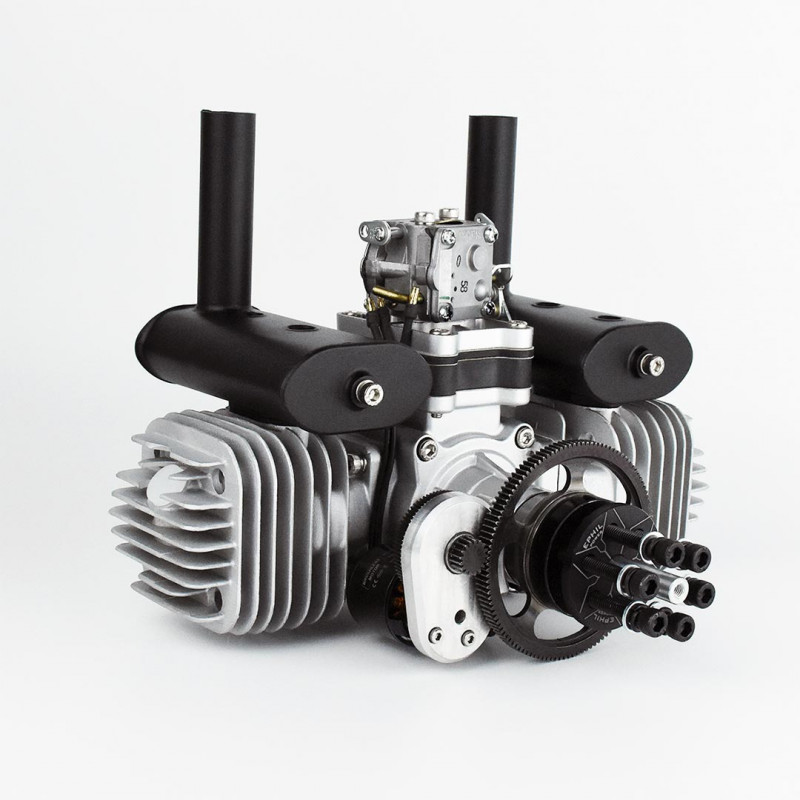

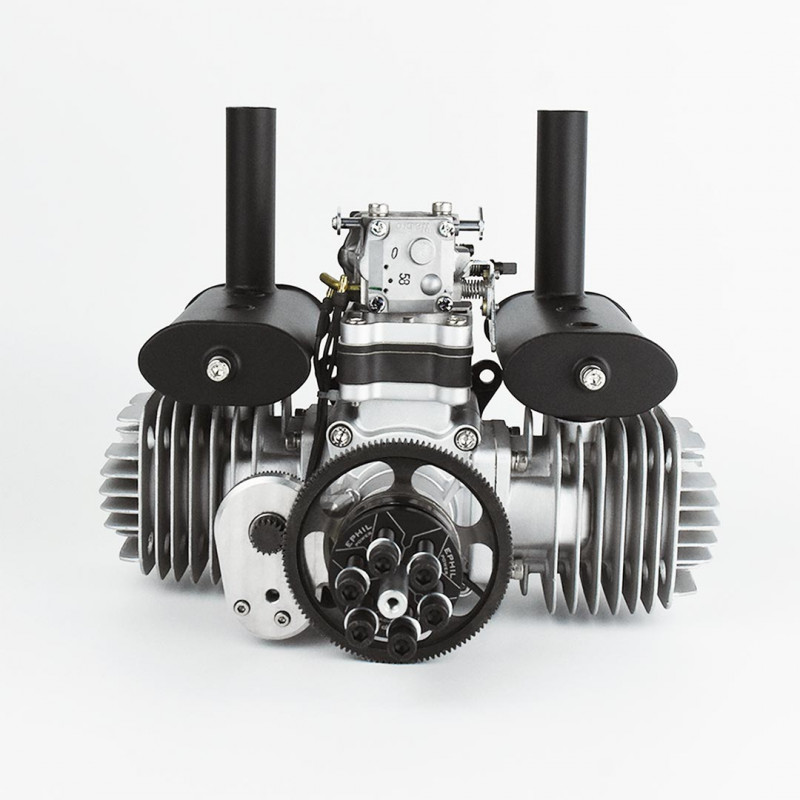

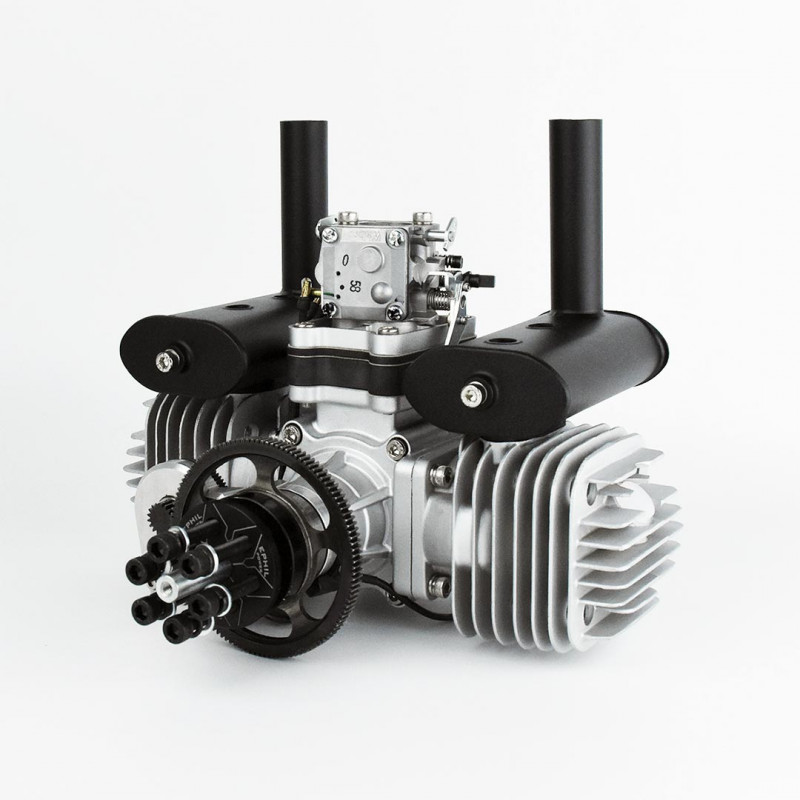

Gasoline Engine for Aircraft EPHIL 123cc Twin-cylinder PRO with Starter

EPHIL 123cc Bi-Cylinder PRO Gasoline Engine for Aircraft with Starter

New range of gasoline engines for radio-controlled aircraft

Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plugs.

The exhaust system comes with a fitting for smoke system usage.

If you wish to have an electric starter on your engine, it is advisable to opt for a PRO series engine when purchasing.

Included in the box:

• One X-123cc-T Bi-Cylinder Pro engine with its Walbro carburetor and starter
• Two mufflers with gaskets and fixing screws
• Two CM-6 Iridium spark plugs
• One electronic ignition module
• Starter controller
• Engine mount (spacers)
• User manual

Technical Specifications:

• Displacement: 123cc
• Bore: 47mm
• Stroke: 35mm
• Power: 12.2hp
• Operating Range: between 1500 and 6650 rpm (propeller 27x10)
• Ignition Module Supply Voltage: between 6 and 14V
• Recommended 2-Stroke Oil Mix: 3.33%
• Compatible Propellers: 26x10 / 26x12 / 27x10 / 28x10
• Engine Weight: 2677g
• Mufflers Weight: 228g
• Engine Mount Weight: 130g
• Ignition Module Weight: 173g
• Starter Weight: 253g
• Starter Controller Weight: 36g
