Micro Servo Digital 8462 MG-D Protronik 2S LiPo ready

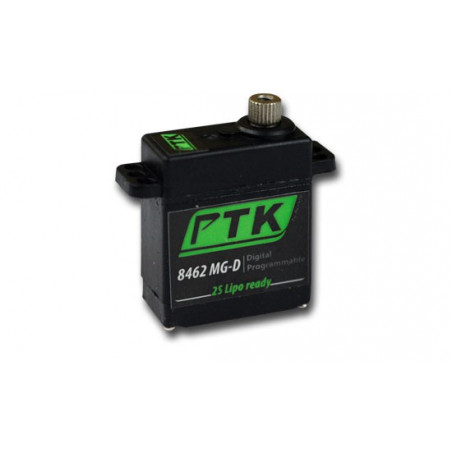

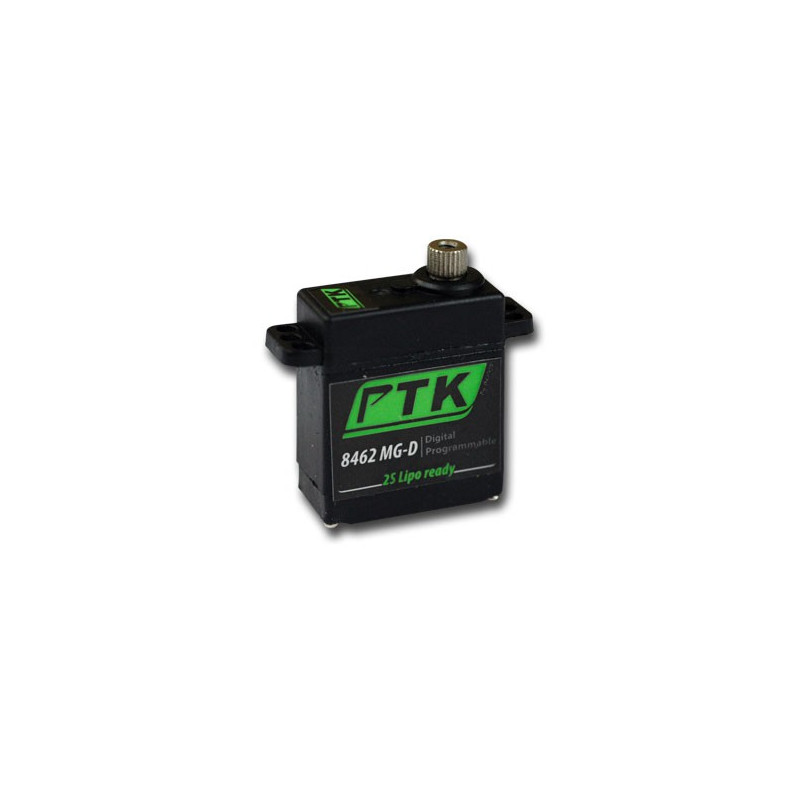

Pro-Tronik Micro Digital Servo 8462 MG-D

Digitally micro servo specially developed for use in gliders or any other application requiring power, precision, and reliability.The 8462 MG-D is the most powerful servo on the market in its category.

It offers an exceptional torque of 5.4kg under 6V for a speed truly adapted to airplanes or gliders.

Its low thickness allows it to be mounted in composite glider wings.

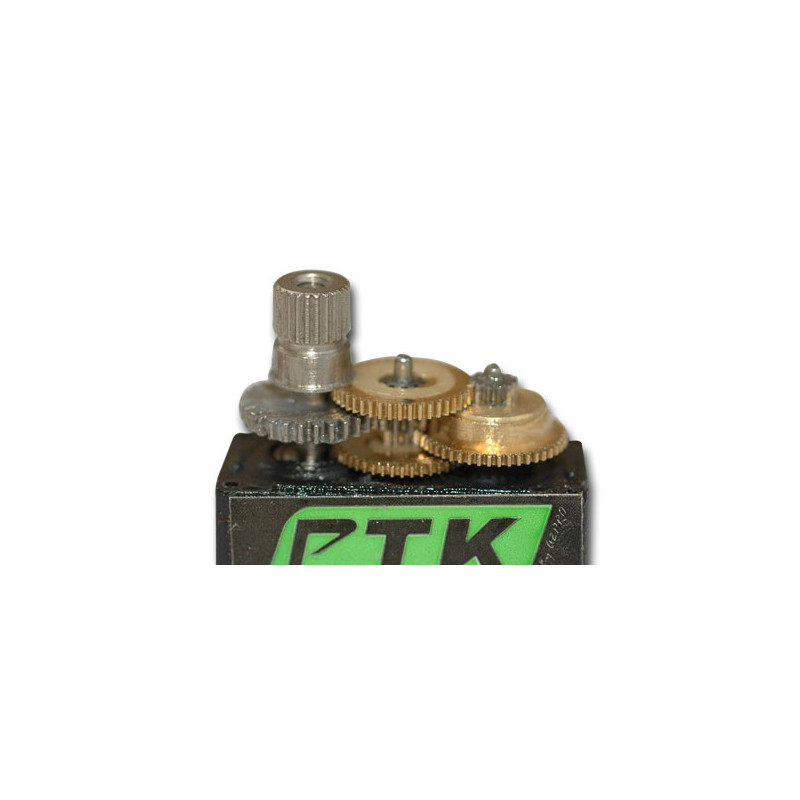

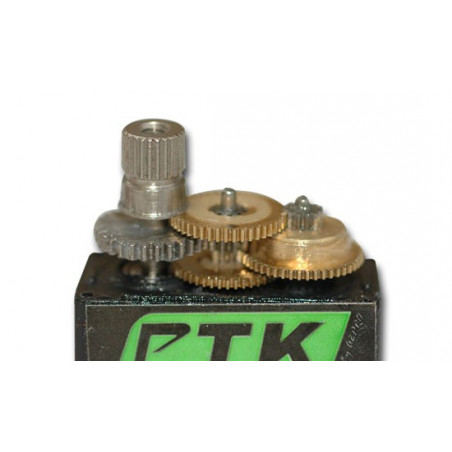

Metal gears mounted on two bearings combining robustness, precision, and reliability.Programmable Digital: Pro-Tronik programming card ref. S04379999 (sold separately)

"2S Lipo Ready": optimized performance whether under 4.8V, 6V, or 7.4V. HV for all!

EXCLUSIVE: This servo is developed and manufactured by Pro-Tronik.

• Gears: Metal
• Bearing: YES 2
• Weight: 17.1 g
• Dimensions: 23.8 x 27.6 x 11.3 mm
• Speed/Torque@ 4.8V: 0.11 sec / 60° 3.9 Kg / cm
• Speed/Torque@ 6.0V: 0.10 sec / 60° 5.4 Kg / cm
• Speed/Torque@ 7.4V: 0.09 sec / 60° 6.0 Kg / cm
• Operating voltage: 4.8V - 7.4V
• Cord length: 200mm
• Connector: Universal JR
• Dead band: 3µs
• Electrical precision: 1.5µs
