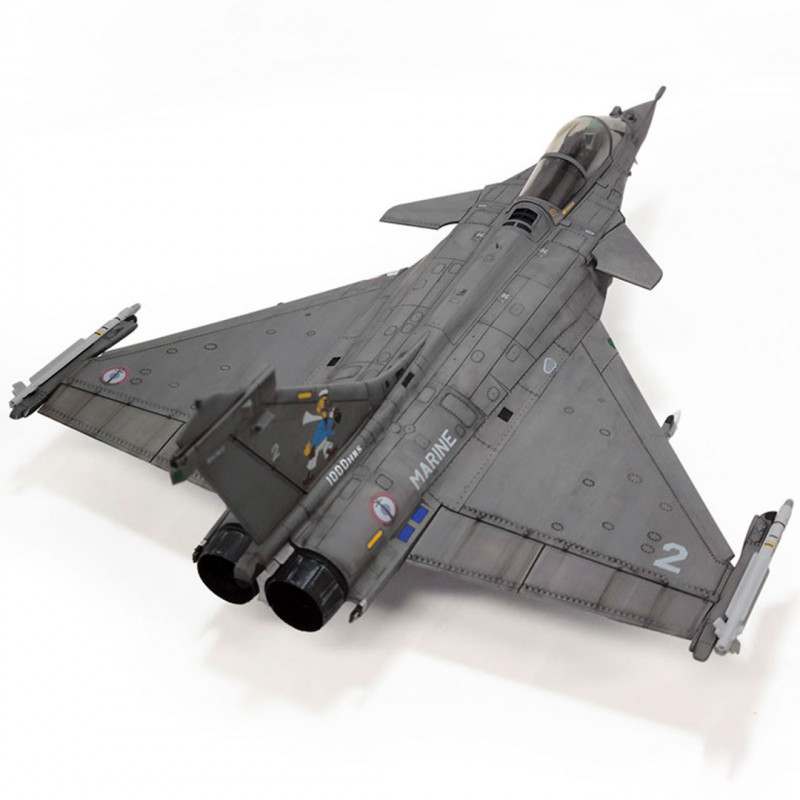

Model of Rafale M "French Navy" 1:48 scale plastic airplane

Model of the Rafale M: the naval fighter of the French Navy

When I take an interest in building models of the Rafale M, I quickly notice that this version has very specific characteristics. Unlike versions intended for the Air Force, the Rafale M was specially designed for naval operations, that is, missions carried out from an aircraft carrier. This adaptation explains why this model attracts aviation military enthusiasts and fans of plastic Rafale aircraft models.

The French Navy indeed uses a specific variant of the Rafale called Rafale M, with the letter "M" standing for "Marine". Its development began in the late 1980s to create an aircraft capable of operating effectively from an aircraft carrier deck. Two prototypes of this naval version were ordered on December 6, 1988. The first one, designated Rafale M01, made its maiden flight on December 12, 1991, while the second prototype, Rafale M02, took to the air on November 8, 1993.

Externally, these aircraft have a gray livery and closely resemble the Rafale C prototype. However, several significant differences appear when examining the aircraft's structure. Unlike what is traditionally observed in French carrier aviation, the Rafale M retains a fixed wing, without folding wingtips. This technical choice allows maintaining the rigidity and aerodynamic performance of the aircraft.

For modelers looking for a faithful Rafale M model to the real aircraft, these structural details are very interesting to reproduce.

Reinforced landing gear for carrier landings

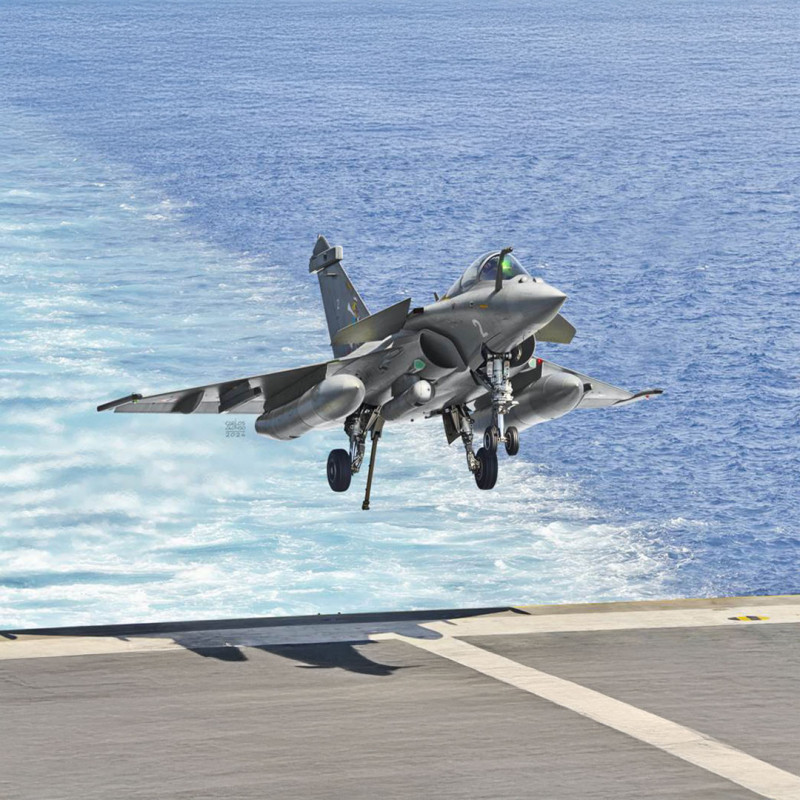

Operations on aircraft carriers impose very significant mechanical constraints. When an aircraft lands on the deck of a ship, the landing is much more abrupt than on a conventional runway.

For this reason, the Rafale M is equipped with a reinforced Messier-Dowty main landing gear. This gear is capable of absorbing vertical energy corresponding to a landing speed of about 6.5 meters per second, or about 23 km/h. This robustness is essential to ensure safety during landings.

The launch system from an aircraft carrier also influenced the aircraft's design. The Rafale M uses a catapult bar, unlike the slings traditionally attached to the fuselage of some aircraft. This configuration results in a greater load on the front landing gear.

To withstand these constraints, the front landing gear strut has been reinforced using very resistant materials, including titanium and high-strength steel. This type of technical detail often interests enthusiasts who want to accurately reproduce a Rafale Marine aircraft model.

Specific technology for catapulting

The front landing gear of the Rafale M also has a particular device called "jump strut". This ingenious mechanism allows storing energy during catapulting and releasing it when the aircraft reaches the end of the flight deck.

Thanks to this system, the aircraft benefits from an additional thrust during takeoff. This technology has proven to be effective enough to be retained on production Rafale aircraft.

These technical characteristics make the Marine version of the Rafale particularly interesting for fans of detailed Rafale M models, as they highlight the differences between land and naval versions of the aircraft.

Structural adaptations for naval operations

The design of the front landing gear, combined with specific technical solutions, has led to some modifications in the overall architecture of the aircraft.

For example, the front landing gear wheels can rotate 360 degrees when the aircraft is stationary, and rotate approximately ±75 degrees during gear retraction. These mechanical features help facilitate maneuvers on the aircraft carrier deck, where space is often very limited.

The congestion of the front of the train and its mechanisms also led to a slight modification of the armament configuration. While some land versions of the Rafale have 14 attachment points, the Rafale M has 13.

The Rafale M01 and M02 prototypes also receive several specific equipments:

• a more robust arrestor hook, essential for hooking onto the carrier's arresting cables

• an integrated telescopic ladder in the fuselage, facilitating access to the cockpit

• two electric batteries instead of one

• an infrared inertial alignment system to the sea, called TELEMIR, developed by Sagem Défense Sécurité and combined with GPS navigation

These technical elements clearly differentiate the naval version of the Rafale from versions intended for air bases.

The Rafale M, a must-have subject for modelers

When I discover a Rafale M model to assemble, I immediately understand why this model is so popular in the world of aeronautical modeling. The Marine version has unique characteristics, including its reinforced landing gear, arrestor hook, and specific equipment for embarked operations.

Assembling a plastic model of the Rafale M allows you to reproduce a fighter aircraft capable of operating from an aircraft carrier, making it one of the most impressive aircraft of the French naval aviation.

For modern aviation enthusiasts, Rafale Marine aircraft models offer the opportunity to recreate, on a small scale, an embarked fighter that perfectly embodies the power and versatility of French military aeronautics.
