Remote-controlled electric motor Power DM2620P Kv1300

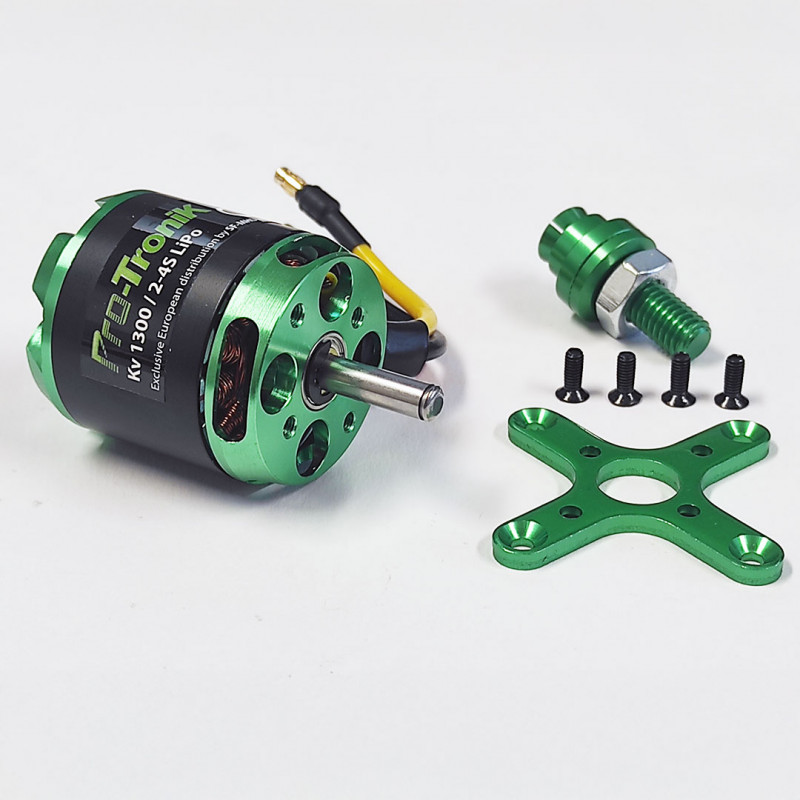

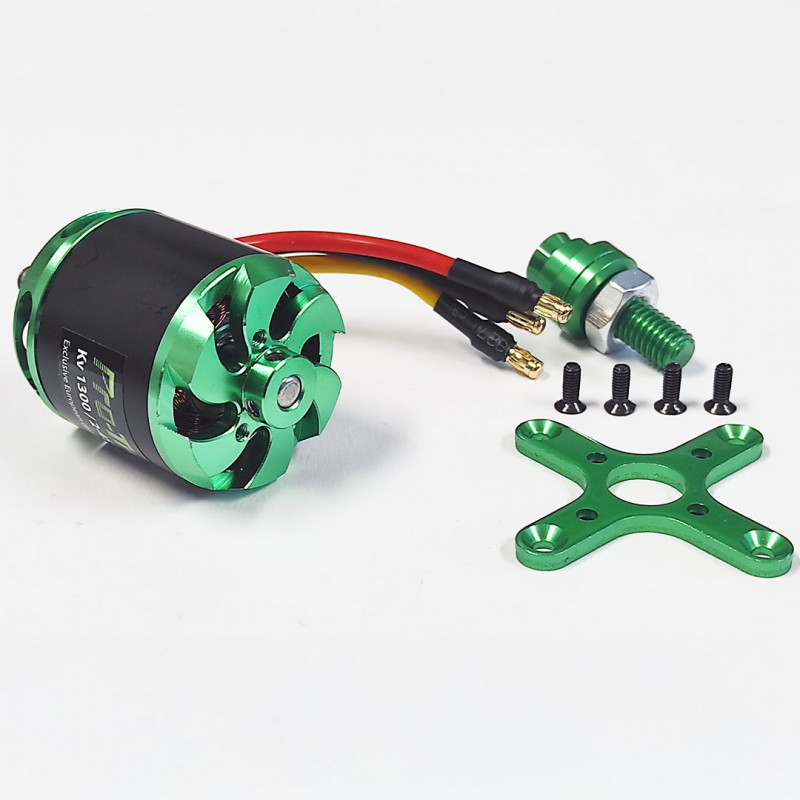

Protronik DM2620P-1300 Brushless Electric Motor
The Protronik DM2620P-1300 Brushless Electric Motor is aimed at hobbyists looking for a powerful, efficient, and well-controlled motorization for medium to large size electric motors for radio-controlled airplanes.
Keeping the dimensions of the DM2620P-1000, it has a weight of 134.8 g and a claimed power rating of 440 W, confirmed by actual measurements.
High Power and Efficiency
Thanks to a very low internal resistance, this motor optimally exploits energy. Its efficiency reaches 85%, a remarkable level that results in excellent overall efficiency and very limited heating, even under heavy load.
This energy performance allows to maximize the potential of each configuration while ensuring long-term reliability.
With its 1300 rpm/V kV, the DM2620P-1300 is naturally geared towards faster models. It is perfectly suited for radio-controlled airplanes weighing 3 to 4 kg, designed to operate at medium to high speeds, while maintaining a comfortable power reserve.
2.15.1.0
2.15.1.0
€62.95
VAT included
Including €0.05 for ecotax
Remote-controlled electric motor Power DM2620P Kv1300
Plus de detailsRemote-controlled electric motor Power DM2620P Kv1300
€62.95
Shipping within 48 hours
335162 products in stock
Customer service
Brushless motor 2620P / Kv 1300 new POWER ProTronik seriesHigh-quality brushless motor, French design.For airplanes up to 3.7kg / motor gliders up to 4.4kgKv 1300 / 135 g / 440 W

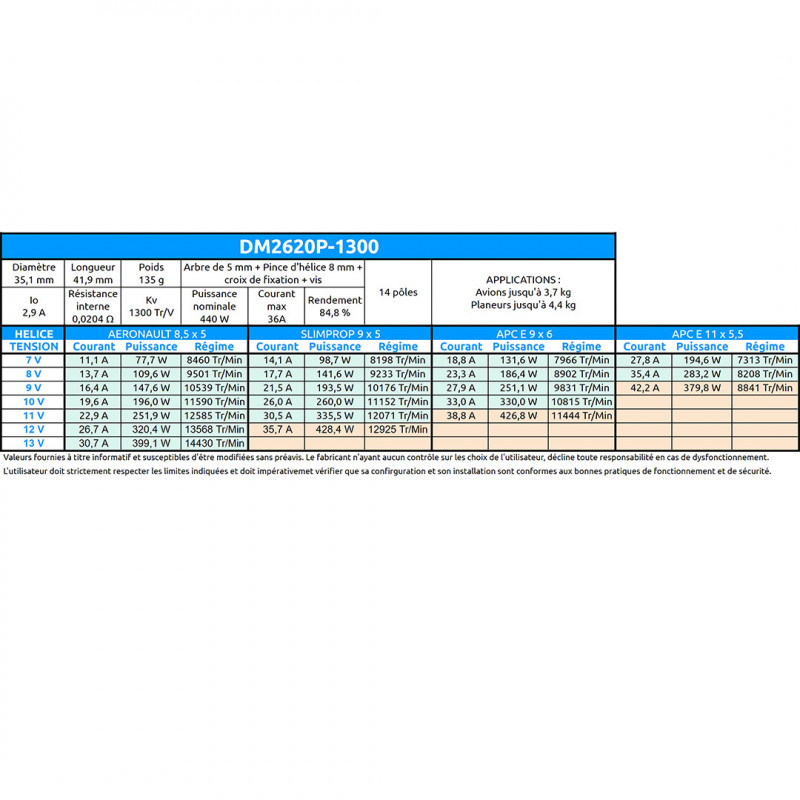

Propeller and battery configurations
Under LiPo 3S, using an 8-inch propeller allows the motor to deliver its full power, providing a sharp response and excellent top speed.
It can also operate under LiPo 2S, provided a larger diameter propeller is chosen, an interesting solution to adapt the motorization to specific airframe or regulatory constraints.
Operating behavior
Despite its high power, this Protronik Brushless electric motor maintains controlled heating.
It stands out for immediate responsiveness during rapid speed variations, without parasitic vibrations or abnormal noise.
This mechanical stability ensures optimal flying comfort and smooth integration into demanding models.
Recommended applications
The DM2620P-1300 is particularly suitable for:
-
fast radio-controlled airplanes weighing 3 to 4 kg,
-
sport or electric performance models,
-
configurations requiring a compact, highly efficient, and responsive motor.
Distributed under Protronik, this model perfectly illustrates the expertise of the Protronik brand in developing high-performance, reliable, and optimized brushless motors for modern aeromodelling.
