EPHIL 60cc single-cylinder rear exhaust

New range of gasoline engines for radio-controlled aircraft.

Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.

The exhaust comes with a fitting for smoke system use.

Possibility to install an electric starter without any modification.

If you want to have an electric starter on your engine, it is preferable to opt for a PRO series engine when purchasing the engine.

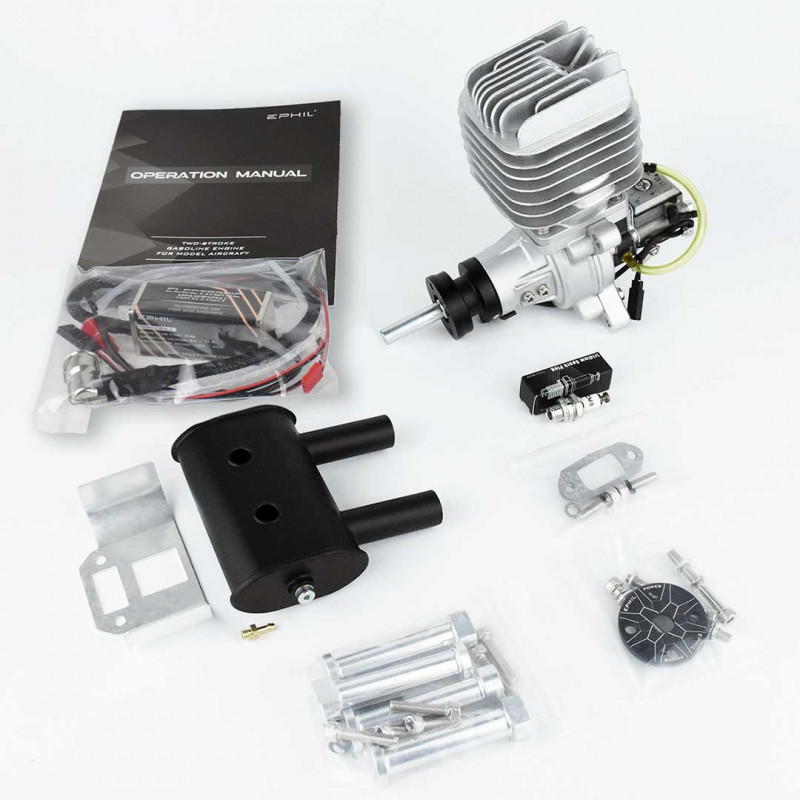

Included in the box:

• An X-60cc-R rear exhaust engine with its Walbro carburetor
• A muffler with gasket and fixing screws
• A CM-6 Iridium spark plug
• An electronic ignition module
• An engine mount
• User manual

Technical specifications:

• Displacement: 60cc
• Bore: 47mm
• Stroke: 35mm
• Power: 6.2hp
• Operating range: between 1800 and 6900 rpm (propeller 24x9)
• Ignition module power supply voltage: between 6 and 14V
• Recommended 2-stroke oil mixture: 3.33%
• Compatible propellers: 22x10 / 23x8 / 23x10 / 24x8 / 24x9
• Engine weight: 1400g
• Muffler weight: 135g
• Engine mount weight (spacers): 115g
• Ignition module weight: 104g

Why choose an EPHIL 60cc engine?

The EPHIL 60cc engine is particularly appreciated for its performance:

• • 🔥 high power suitable for demanding aircraft
  • ⚡ excellent throttle response and rpm increase
    • 🔩 solid and durable design
    • 🎯 simple and stable adjustments
    • 🛠️ easy maintenance

👉 A engine perfectly suited for pilots seeking reliability and performance.

For which planes to use an EPHIL 60cc engine?

The EPHIL 60cc engine is ideal for:

• • • aerobatic planes
    • warbirds
    • semi-scale planes
    • large-scale planes

👉 It allows for stable, powerful, and precise flight, even in the most technical phases.

Technical characteristics of the EPHIL 60cc engine

The EPHIL 60cc gasoline engine incorporates recognized components:

• • • Walbro type carburetor
    • high-performance electronic ignition
    • CM6 type spark plug
    • reliable starting system
    • compatibility with different exhaust systems

👉 Technical elements designed to ensure performance and longevity.

Tips to optimize your EPHIL 60cc engine

To get the best out of your EPHIL engine:

• • • use high-quality fuel
    • perform a gradual break-in
    • precisely adjust the carburetor
    • regularly check the settings

👉 A well-tuned engine improves performance and extends its lifespan.

EPHIL 60cc Engine vs other RC gasoline engines

Why choose an EPHIL 60cc engine?

• • • better power-to-weight ratio
    • easier starting
    • more accessible adjustments
    • stable engine behavior

👉 An excellent alternative to other gasoline engines on the market.

EPHIL 60cc Engine in stock with fast shipping

• • • ✔️ real stock
    • ✔️ fast shipping
    • ✔️ quality product

👉 Order your EPHIL 60cc engine now.

Discover the full EPHIL range

👉 See all EPHIL RC gasoline engines : https://www.scientific-mhd.eu/moteur-ephil-essence-rc-1295/

❓ FAQ

Is the EPHIL 60cc engine suitable for aerobatics?

Yes, it provides ideal power for aerobatic maneuvers.

Is the EPHIL 60cc engine reliable?

Yes, it is known for its robustness and stability in flight.

What plane is suitable for a 60cc engine?

Medium to large-sized planes are perfectly suited.

Is the EPHIL 60cc engine easy to start?

Yes, thanks to its high-performance ignition system.
