RC Aircraft Gas Engine
S074120RP

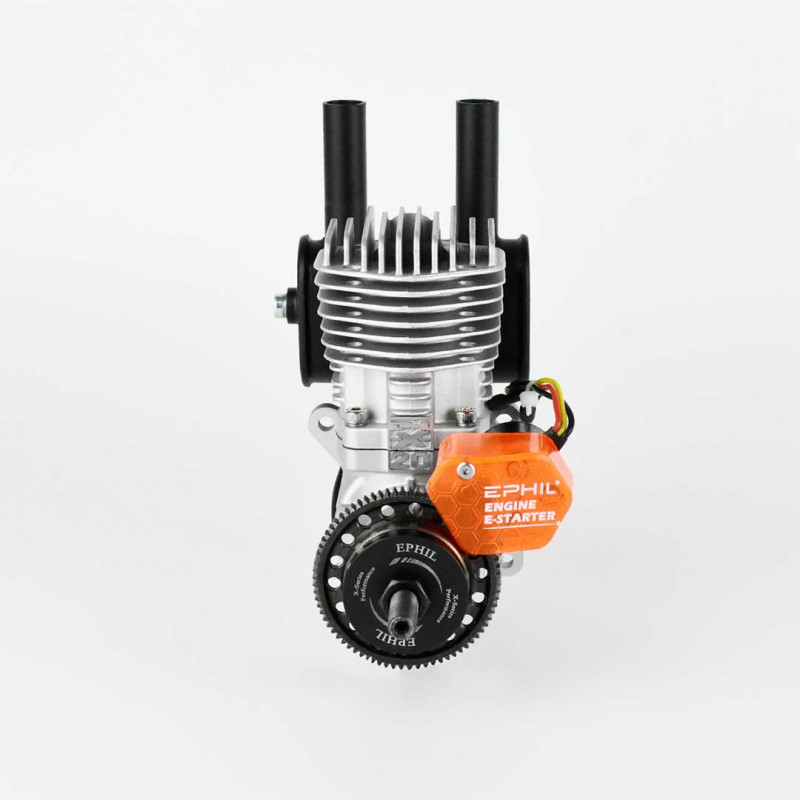

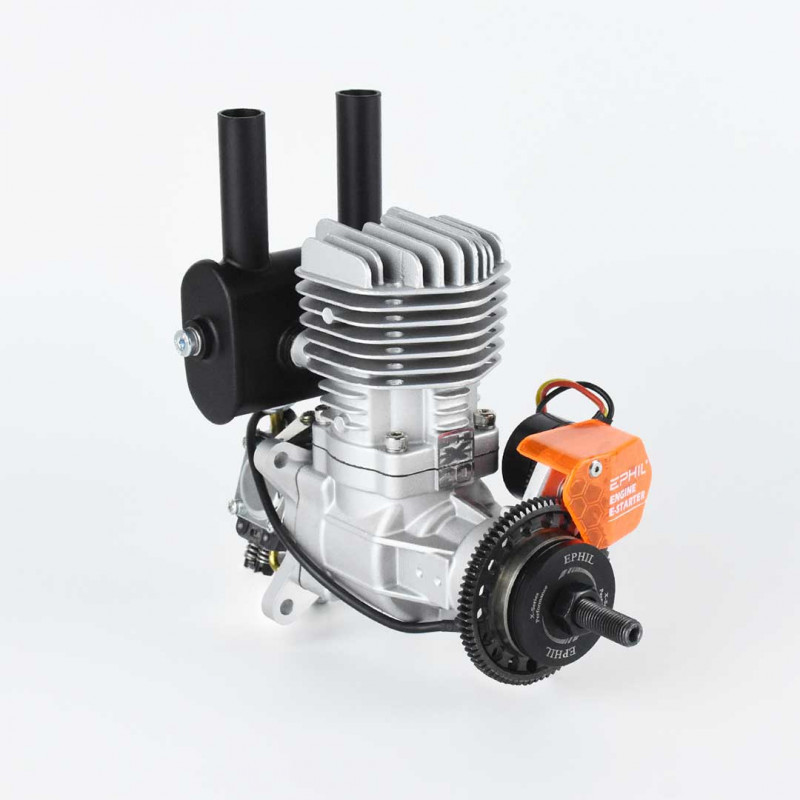

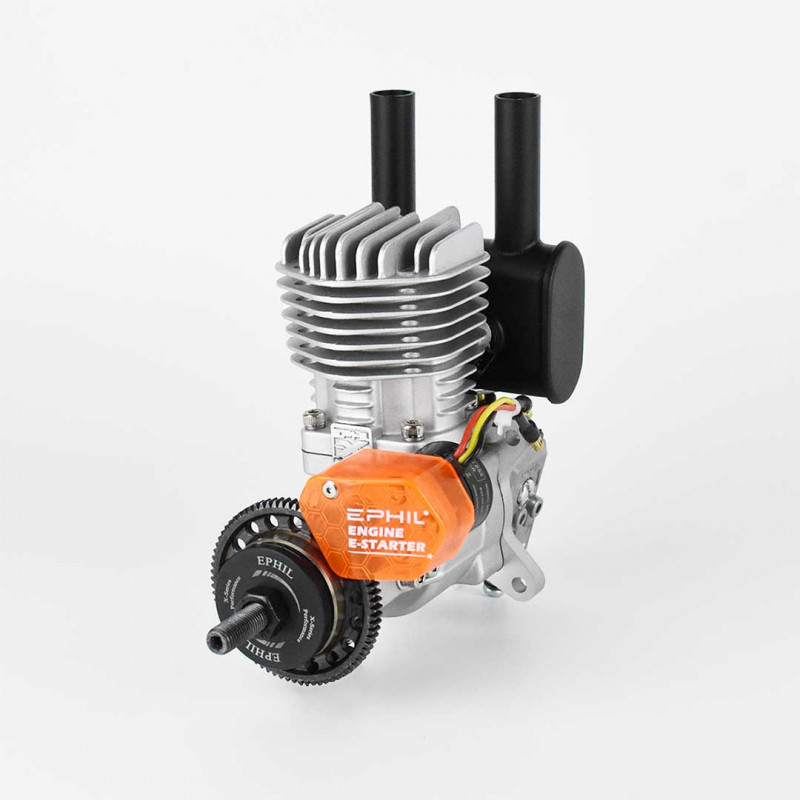

Gasoline Engine for Aircraft EPHIL 20cc PRO single-cylinder rear exhaust and starter
New range of gasoline engines for radio-controlled aircraft, tested and approved by our technical service.
Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.
The PRO Series comes standard with an electric starter.
The exhaust comes standard with a fitting for the use of a smoke system.
€369.95
VAT included
Gasoline Engine for Aircraft EPHIL 20cc PRO single-cylinder rear exhaust and starter
Plus de detailsGasoline Engine for Aircraft EPHIL 20cc PRO single-cylinder rear exhaust and starter
€369.95
Ajout dans le panier en cours ...
Onboard accessory 16 x 8 TWO-BLADE CARBON PROPELLER
€38.50 - ref. S074P1608C
Onboard accessory TWO-BLADE WOODEN PROPELLER 14 x 10
€11.95 - ref. S074P1410B
Onboard accessory TWO-BLADE WOODEN PROPELLER 15 x 8
€12.95 - ref. S074P1508B
Articles supplémentaires sélectionnés
Total(tax incl.)
€
Shipping within 48 hours
333891 products in stock
Customer service
Associated Universe
EPHIL 20cc PRO single-cylinder rear exhaust and starter
New range of gasoline engines for radio-controlled airplanes
Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.
PRO series equipped with an electric starter as standard.
The exhaust has a fitting for the use of a smoke system as standard.

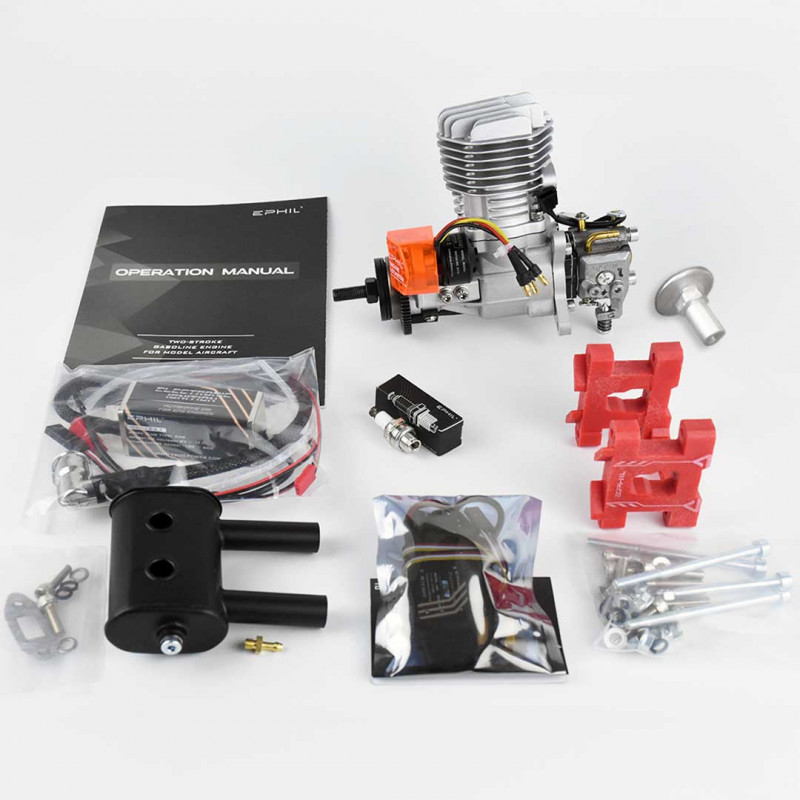

Included in the box:
- An X-20cc-R engine with rear exhaust, Walbro carburetor, and starter
- A muffler with gasket and fixing screws
- A CM-6 Iridium spark plug
- An electronic ignition module
- Starter controller
- Engine mount
- User manual
Technical specifications:
- Displacement: 20cc
- Bore: 32mm
- Stroke: 27mm
- Power: 2.5hp
- Operating range: between 1800 and 8600 rpm (propeller 16x8)
- Ignition module power supply voltage: between 6 and 14V
- Recommended 2-stroke oil mixture: 3.33%
- Compatible propellers: 14x10 / 15x8 / 16x6 / 16x8 / 17x6
- Engine weight: 697g
- Muffler weight: 62g
- Engine mount weight: 115g
- Ignition module weight: 104g
- Starter weight: 85g
- Starter controller weight: 36g
