RC Aircraft Gas Engine
S074600R
Gasoline Engine for EPHIL 60cc Single-Cylinder Rear Exhaust Aircraft Engine
New range of gasoline engines for remote-controlled aircraft, tested and approved by our technical service.
Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.
The exhaust comes with a fitting for using a smoke system.
Option to later install an electric starter by our company (conditions apply).
€489.95
VAT included
Gasoline Engine for EPHIL 60cc Single-Cylinder Rear Exhaust Aircraft Engine
Plus de detailsGasoline Engine for EPHIL 60cc Single-Cylinder Rear Exhaust Aircraft Engine
€489.95
Ajout dans le panier en cours ...
Onboard accessory TWO-BLADE CARBON PROPELLER 23 x 8
€72.95 - ref. S074P2308C
Onboard accessory TWO-BLADE WOODEN PROPELLER 23 x 8
€27.95 - ref. S074P2308B
Onboard accessory TWO-BLADE WOODEN PROPELLER 23 x 10
€27.95 - ref. S074P2310B
Articles supplémentaires sélectionnés
Total(tax incl.)
€
Shipping within 48 hours
333891 products in stock
Customer service
Associated Universe
EPHIL 60cc single-cylinder rear exhaust
New range of gasoline engines for radio-controlled aircraft.
Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.
The exhaust comes with a fitting for using a smoke system.
Possibility to install an electric starter without any modification.
If you want to have an electric starter on your engine, it is preferable to opt for a PRO series engine when purchasing the engine.

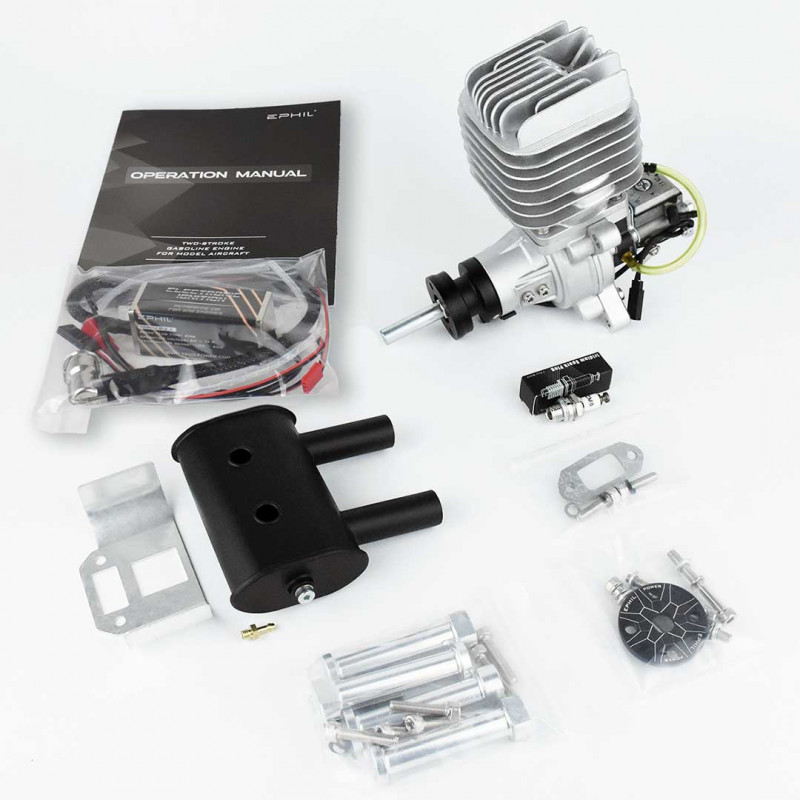

Included in the box:
- An X-60cc-R rear exhaust engine with its Walbro carburetor
- A silencer with gasket and fixing screws
- A CM-6 Iridium spark plug
- An electronic ignition module
- An engine mount
- User manual
Technical specifications:
- Displacement: 60cc
- Bore: 47mm
- Stroke: 35mm
- Power: 6.2hp
- Operating range: between 1800 and 6900 rpm (propeller 24x9)
- Ignition module power supply voltage: between 6 and 14V
- Recommended 2-stroke oil mixture: 3.33%
- Compatible propellers: 22x10 / 23x8 / 23x10 / 24x8 / 24x9
- Engine weight: 1400g
- Silencer weight: 135g
- Engine mount weight (spacers): 115g
- Ignition module weight: 104g
