RC Plane Fokker D.VII 1/4 ValuePlanes 2100 mm EP GP

A 1/4 Scale Fokker D.VII RC

The Fokker D.VII is one of the most iconic aircraft of World War I aviation. This ValuePlanes reproduction captures its characteristic proportions in a large 1/4 scale.

With a wingspan of 2100 mm and length of 1550 mm, the model has a significant size while remaining suitable for use on a sufficiently clear modeling field.

The wing area is approximately 120 dm² with an estimated flying weight of around 5.8 kg. This combination results in a wing loading of about 48 g/dm², which is favorable for a model of this size.

A Genuine Wooden RC Airplane Kit

The Fokker D.VII is not an ARF ready-to-fly model. It is a traditional construction kit intended for modelers who want to build their own aircraft.

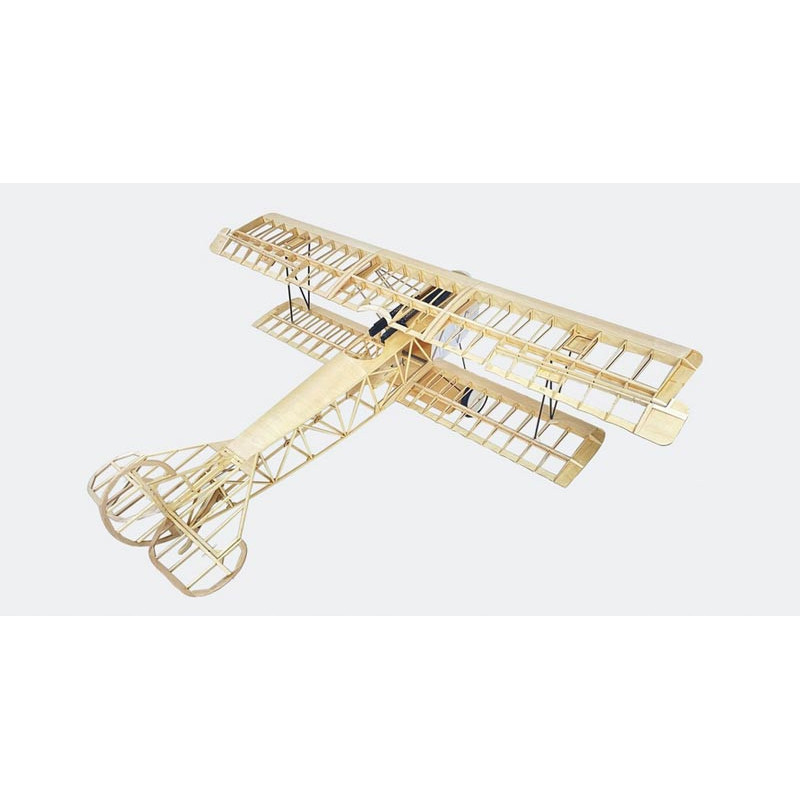

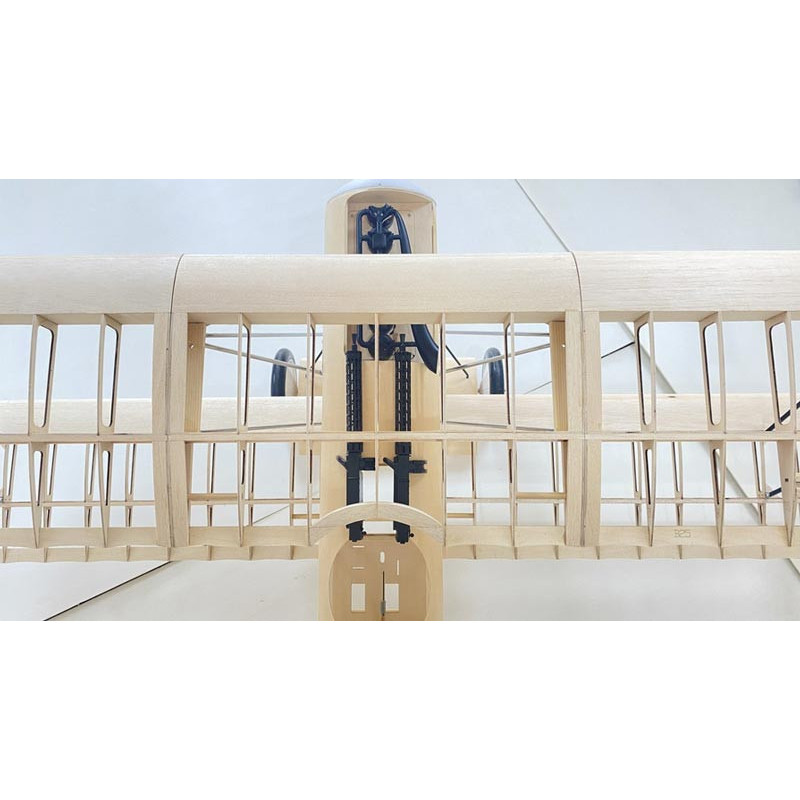

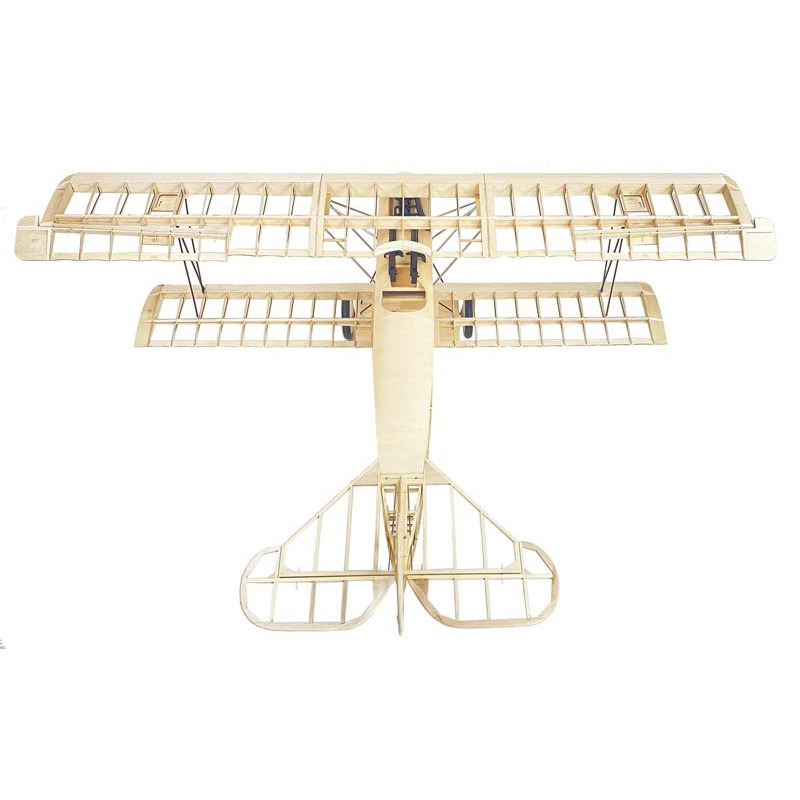

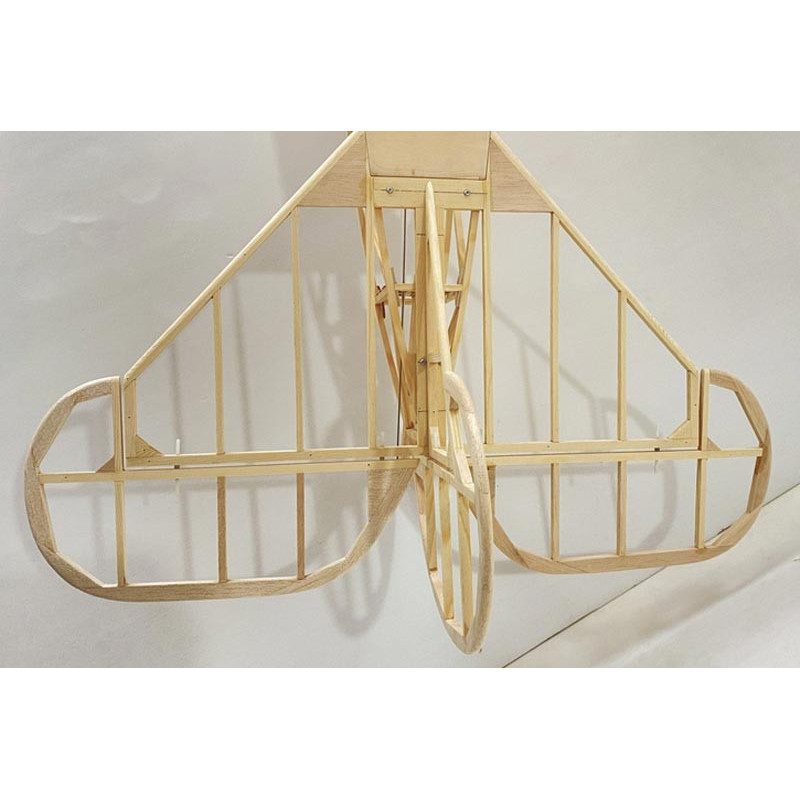

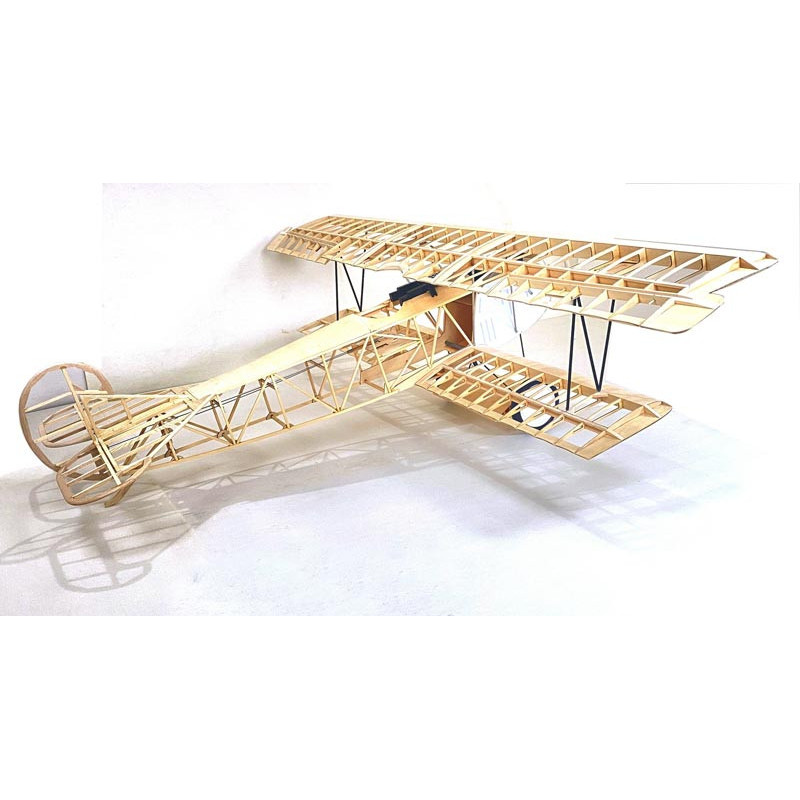

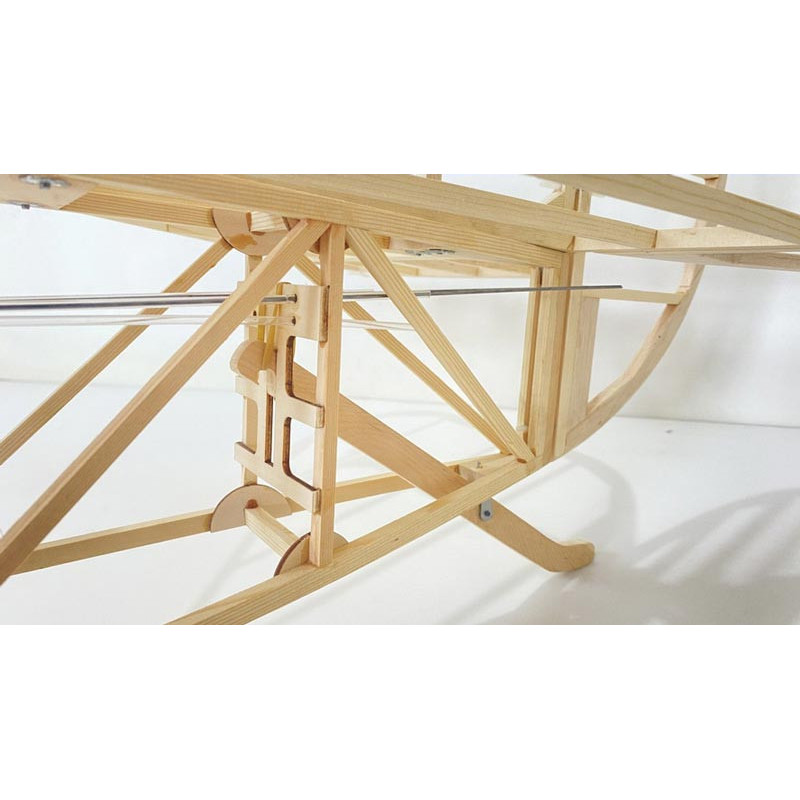

The wooden components are prepared and cut to facilitate construction. The assembly notably includes creating the fuselage structure, wings, tail surfaces, and various reinforcements required for the airframe.

The kit includes the main elements needed for building the airframe as well as the assembly accessories provided by the manufacturer.

A 1:1 scale plan and an illustrated manual accompany the construction.

Construction Suited for Experienced Modelers

Building a 2.10 m Fokker D.VII requires time, precision, and a good understanding of model aviation.

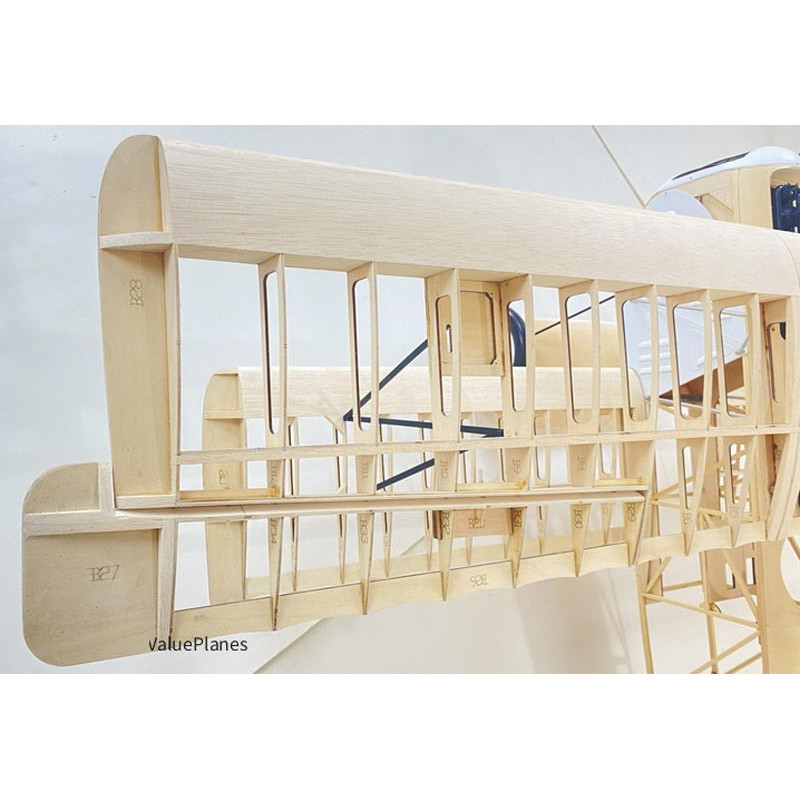

The work involves assembling the wooden structure, positioning reinforcements, installing controls, and preparing the wings before covering and finishing.

This type of kit is therefore more suitable for an experienced modeler than a beginner looking for an RC airplane ready to fly immediately.

On the other hand, the construction allows for customizing the finish and following all the steps in creating a large semi-scale model.

Thermal Fokker D.VII: 20 to 30 cm³

For a thermal setup, we recommend a motor ranging from 20 to 30 cm³.

This range allows adapting the motorization to the desired flight style and the equipment installed on the model.

The Fokker D.VII thus retains the essence of a large thermal RC aircraft while benefiting from a motorization suited to its dimensions and weight.

Electric Fokker D.VII: 1500 W, 500 KV, and 6S

The Fokker D.VII can also be equipped with an electric motorization.

The currently recommended configuration is based on:

• Brushless motor: 1500 W / 500 KV
• ESC: 80 A
• Battery: LiPo 6S 4200 mAh

This solution allows enjoying a large model without the constraints associated with using a thermal engine: instant start, reduced maintenance, and easily accessible power supply.

For a model of this size, the battery and motor components must be carefully positioned to achieve the recommended center of gravity.

A Spectacular-Looking Large RC Aircraft

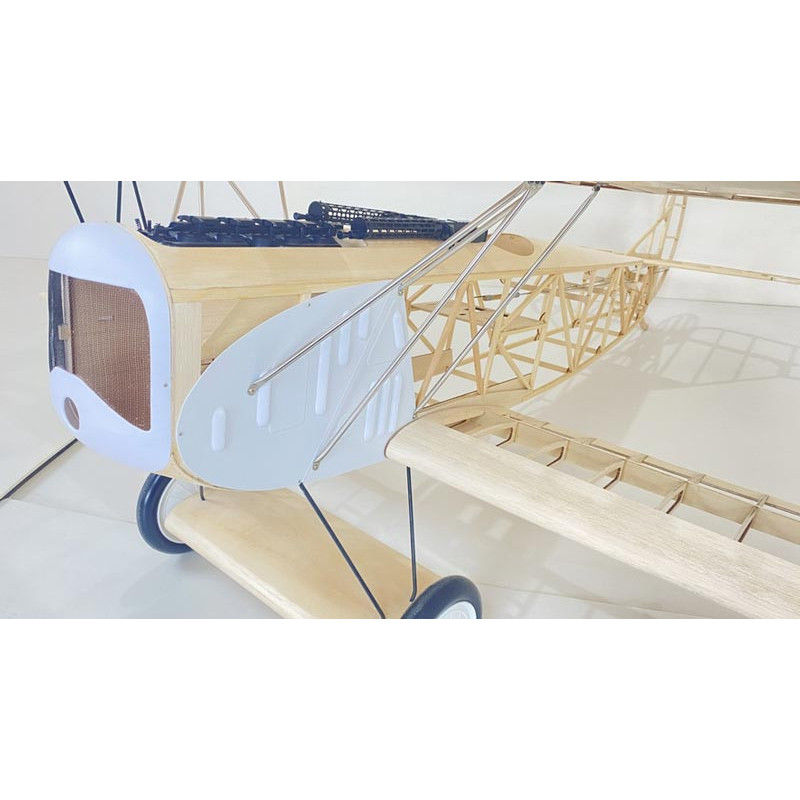

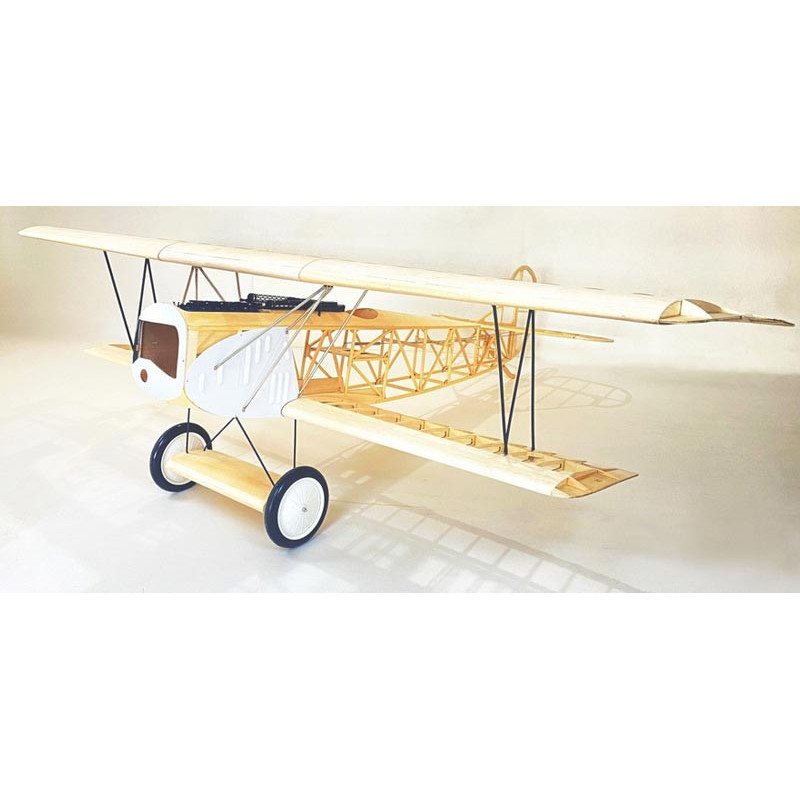

With its biplane wings, distinctive landing gear, and slender fuselage, the Fokker D.VII has an immediately recognizable silhouette.

The 1/4 scale further enhances this presence. Once built and equipped, the model reaches a wingspan of 2.10 m, giving it the true dimensions of a large RC scale model.

The structural elements and provided accessories allow maintaining the overall appearance of the Fokker D.VII while leaving the builder to finish their model.

Optional Finishing Accessories Available

To further enhance the realism of the model, several specific accessories are available separately.

Attention: these items are not included in the kit.

You can complement the Fokker D.VII with:

• 1/4 scale vintage wheels, available as an option;

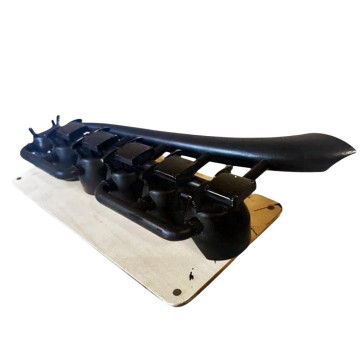

• dummy engine, available as an option;

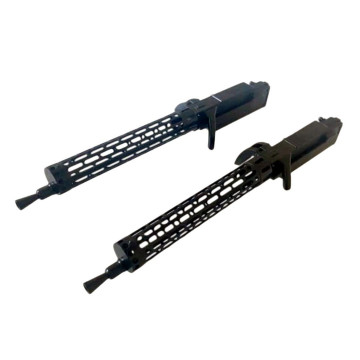

• dummy machine guns, available as an option.

These accessories allow achieving a more detailed finish and a presentation closer to the historical aircraft.

However, they must be ordered separately from the Fokker D.VII kit.

Features of the Fokker D.VII ValuePlanes

A construction project for semi-scale model enthusiasts

The Fokker D.VII ValuePlanes is aimed at modelers who want to go beyond a ready-to-assemble RC plane.

The wooden construction, large dimensions, and finishing possibilities make it a particularly interesting project for enthusiasts of semi-scale RC airplane models, traditional construction, and historical airplanes.

Once completed, the 2.10m Fokker D.VII offers a significant presence on the ground and in the air, while retaining the visual characteristics that have made this iconic plane famous.

Kit contents

The kit includes the necessary elements for building the Fokker D.VII fuselage, including pre-prepared and cut wooden parts, assembly elements, and accessories intended for construction.

The assembly instructions and the 1:1 scale plan are included with the kit.

Power system, electronics, battery, vintage wheels, faux engine, and mock machine guns are not included unless otherwise stated in the offer's content.

Additional items needed to complete the model

To complete a ready-to-fly Fokker D.VII, you will need to prepare:

• the thermal or electric power system;
• the controller and battery for an electric setup;
• appropriate servos and radio equipment;
• covering and finishing products;
• optional finishing accessories based on the desired level of realism.

The choice of equipment must meet the model's specifications and the recommended power system guidelines mentioned above.
